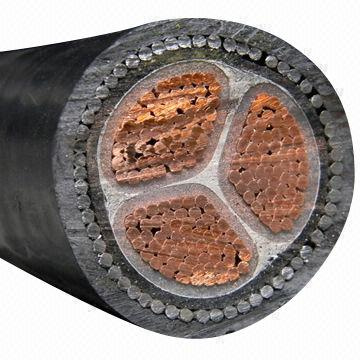

Medium Voltage XLPE Insulated Steel Wire Armoured Power Cable

Prod Model:	YJV32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Of Insulation:	Black or as Your Request
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Certification:	VDE
Model:	Yjv32
Brand:	Yifang

Product Description

Payment & Shipping Terms:
Packaging Details: Wooden and steel drum
Payment Terms: L/C, T/T
Supply Ability: 100 Kilogram per Month

1. The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, DIN standard, ASTM standard, etc.

Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.

2. Brief Construction:
Single core or multi-core
Copper or aluminium conductor
XLPE insulation
Copper tape or copper wire screen
Galvanized steel tape armored
PVC or PE sheath

3. Laying conditions: For laying under ground with large different altitude, be able to bear external machanical force and moderate pulling force

4. We can design and manufacture special XLPE cable according to other standards required by customers.



2. Application and Main type

Type		Description	Main Apllication
Copper Conductor	Aluminum Conductor
YJV Cu/XLPE/PVC	YJLV Al/XLPE/PVC	Copper or aluminum conductor XLPE insulated, Copper tape screen PVC shealthed power cable	For laying indoor, tunnel, underground and cannel. Unable to bear external mechanical pulling force and pressure during laid.
YJV Cu/XLPE/L(H)DPE	YJLV Al/XLPE/L(H)DPE	Copper or aluminum conductor  XLPE insulated, Copper tape screen PE/LDPE/HDPE shealthed power cable
YJE Cu/XLPE/LSOH	YJLE Al/XLPE/LSOH	Copper or aluminum conductor XLPE insulated, Copper tape screen LSOH shealthed power cable
YJSV Cu/XLPE/CWS/PVC N2XS(SE)Y	YJLSV Al/XLPE/CWS/PVC N2XS(SE)Y	Copper or aluminum conductor XLPE insulated, Copper wire+Coper tape screen PVC shealthed power cable	For laying indoor, tunnel, underground and cannel. Unable to bear external mechanical pulling force and pressure during laid, fault current requires large. CWS(Copper wire screen) type:A: Fixed section  B: Full/one third/one sixth/one eighth/one sixteenth neutral
YJSY Cu/XLPE/CWS/L(M.H)DPE N2XS(SE)2Y	YJLSY Al/XLPE/CWS/L(M.H)DPE N2XS(SE)2Y	Copper or aluminum conductor XLPE insulated, Copper wire+Coper tape screen PE/LDPE/HDPE shealthed power cable
YJE Cu/XLPE/CWS/LSOH	YJLE Al/XLPE/CWS/LSOH	Copper or aluminum conductor XLPE Copper wire+Coper tape screen LSOH shealthed power cable
YJV22 Cu/XLPE/STA/PVC	YJLV22  Al/XLPE/STA/PVC	Copper or aluminum conductor XLPE insulated, Copper tape screen, steel tape armoured, PVC sheathed power cable	For laying indoor, tunnel, underground and cannel. Able to bear external mechanical forces, but unable to bear large pulling force.
YJV23  Cu/XLPE/STA/L(M.H)PE	YJLV23 Al/XLPE/STA/L(M.H)PE	Copper or aluminum conductor XLPE insulated, Copper tape screen, steel tape armoured, PE/LDPE/HDPE sheathed power cable
WD-YJY23 Cu/XLPE/STA/LSOH	WD-YJLY23 Al/XLPE/STA/LSOH	Copper or aluminum conductor XLPE insulated, Copper tape screen, steel tape armoured, PVC sheathed power cable
YJSV22 Cu/XLPE/CWS/STA/PVC N2XSEBY	YJLSV22 Al/XLPE/CWS/STA/PVC N2XSEBY	Copper or aluminum conductor XLPE insulated, Copper wire+Coper tape screen,steel tape armoured, PVC shealthed power cable	For laying indoor, tunnel, underground and cannel. Able to bear external mechanical forces, but unable to bear large pulling force. fault current requires large. CWS(Copper wire screen) type:A: Fixed section

3. Scope of voltge grade and core number and cross-section
   a) National standard

Rated voltage(kv)

3.6/6

6/6

6/10

8.7/10

8.7/15

12/15

12/20

18/20

18/30

21/35

26/35

Core Number

1 core, 3 core

Cross-section mm2

1C

25~800

35~800

3C

25~400

35~400

  b) IEC/BS/DIN standard

Rated voltage(kv)

3.6/6

6/6

6/10

8.7/10

8.7/15

12/15

12/20

18/20

18/30

21/35

26/35

Core Number

1 core, 3 core

Cross-section mm2

1C

25~800

35~800

3C

25~400

35~400


  c) ASTM standard

Rated voltage(kv)		5001-8000	8001-15000	15001-25000	25001-28000	28001-35000	35001-46000
		1 core, 3 core
Cross-section mm2	1C	6AWG~1600kcmil	2AWG~1600kcmil	1AWG~1600kcmil		2AWG~1600kcmil	1/0AWG~1600kcmil
	3C			1AWG~1600kcmil		2AWG~1600kcmil	4/0AWG~1600kcmil


4. D.C Resistance of finished cable at 20oC per km is not more than following:


Nominal Cross-section mm2		25	35	50	70	95	120	150	185	240	300
20oC DC Resistance Ω/km	Cu	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.0991	0.0754	0.0601
	Al	1.2	0.868	0.641	0.443	0.320	0.253	0.206	0.164	0.125	0.100
Nominal Cross-section mm2		400	500	630	800	1000	1200	1400	1600	1800	2000
20oC DC Resistance Ω/km	Cu	0.0470	0.0366	0.0283	0.0221	0.0176	0.0151	0.0123	0.0108	0.0096	0.0086
	Al	0.0778	0.0605	0.0469	0.0367	0.0291	0.0247	0.0202	0.0177	0.0157
Nominal Cross-section AWG		6	5	4	3	2	1	1/0	2/0	3/0	4/0
20oC DC Resistance Ω/km	Cu	1.3219	1.0453	0.8298	0.6594	0.5211	0.4149	0.3281	0.2605	0.2065	0.1640
	Al	2.1699	1.7167	1.3631	1.0802	0.8551	0.6783	0.5401	0.4276	0.3376	0.2688
Nominal Cross-section MCM		250	300	350	400	450	500	550	600	650	700
20oC DC Resistance Ω/km	Cu	0.1386	0.1158	0.0991	0.0865	0.0772	0.0695	0.0630	0.0579	0.0534	0.0495
	Al	0.2273	0.1897	0.1623	0.1421	0.1263	0.1138	0.1032	0.0948	0.0874	0.0813
Nominal Cross-section MCM		750	800	900	1000	1100	1200	1300	1400	1500	1600
20oC DC Resistance Ω/km	Cu	0.0463	0.0434	0.0386	0.0347	0.0316	0.0289	0.0237	0.0248	0.0231	0.0217
	Al	0.0759	0.0711	0.0630	0.0569	0.0518	0.0473	0.0437	0.0405	0.0379	0.0357
