Metal Core Aluminum PCB 3W / Mk Thermal Conductivity LED Light
| Price: |
US $ 1.12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1266R1.6 |
| Board Thick: |
1.6mm |
| Surface Finish: |
HASL Lead Free |
| Legend Color: |
Black |
| Solder Mask Color: |
White |
| Copper Thick: |
1.0 Oz |
| Minimum Trace and Space: |
12mil/14mil |
| Minimum / Maximum Holes: |
5.5mm |
| Thermal Conductivity: |
3.0W/Mk 200um Dielectric Material |
| Via: |
No Via |
| Test: |
100 Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Brand: |
Bicheng |
| Dielectric: |
Aluminum 1060 |
Product Description

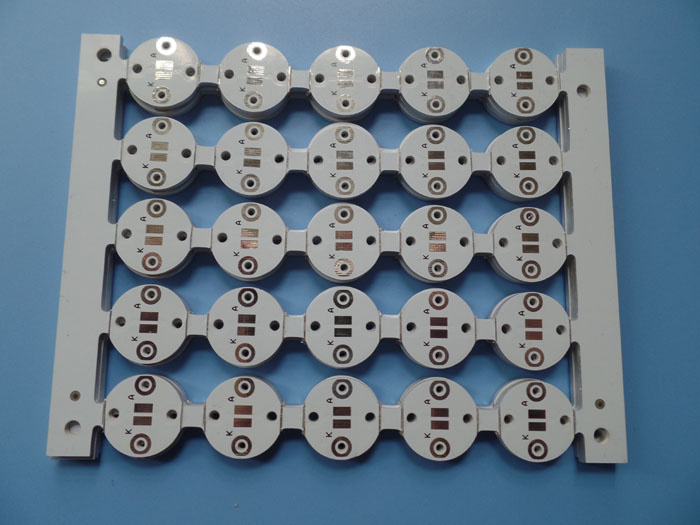

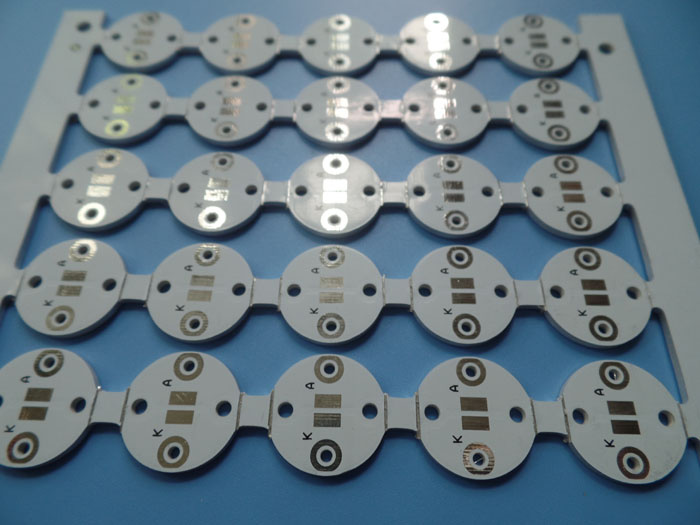

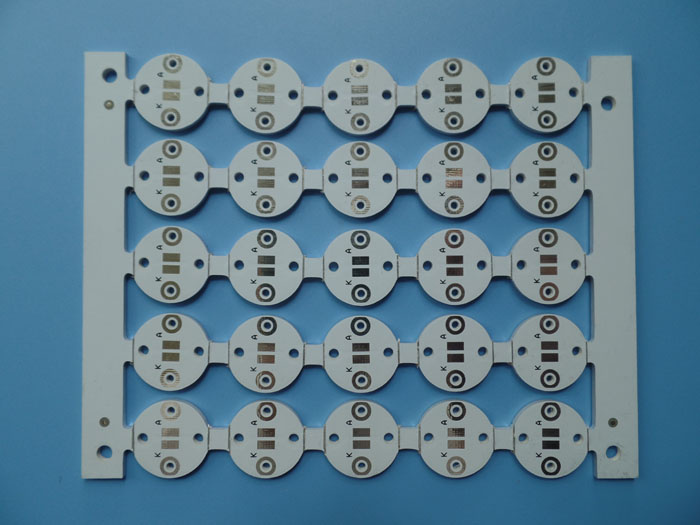

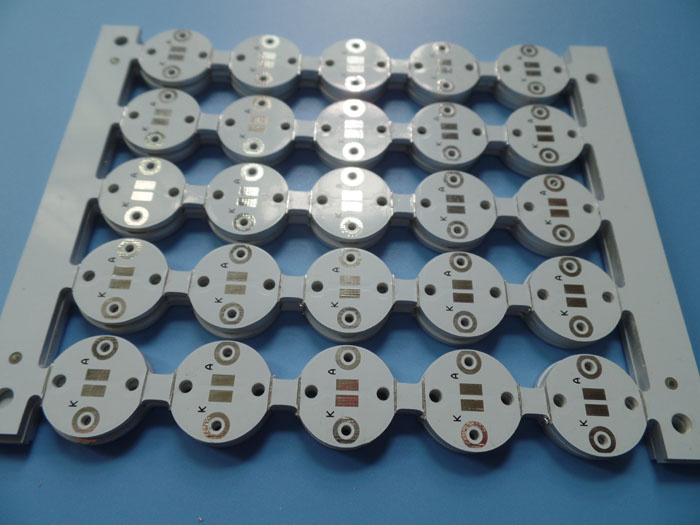

Metal Core Aluminum PCB 3W / MK Thermal Conductivity Applied In High Power LED Light
Commodity Introduction
This is a type of Aluminum PCB for the application of led light It's a signle sided layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabri
-cated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 100 x 100mm=25PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 3.0W/MK 200um dielectric material |
| Aluminum base 1060 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/14mil |
| Minimum / Maximum Holes: | 5.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 3.0W/MK 200um dielectric material |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | as per requirement |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | High power LED light, GPS Locator
Variable Frequency Drive
Satellite Broadband
Security Alarm
Programmable Logic Controller |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Mass production capability
The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. And the brand new automatic equipment was introduced from Israel, Germany,
Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
