| Prod Model: |
BIC1255R5.2 |
| Solder Mask Color: |
Black |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
0.6mm |
| Outer Copper Thick: |
1 Oz |
| Inner Copper Thick: |
1 Oz |
| Legend Color: |
White |
| Minimum Trace and Space: |
13 Mil/14 Mil |
| Minimum / Maximum Holes: |
1.5/3.3mm |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Aluminum 1060 |
Product Description

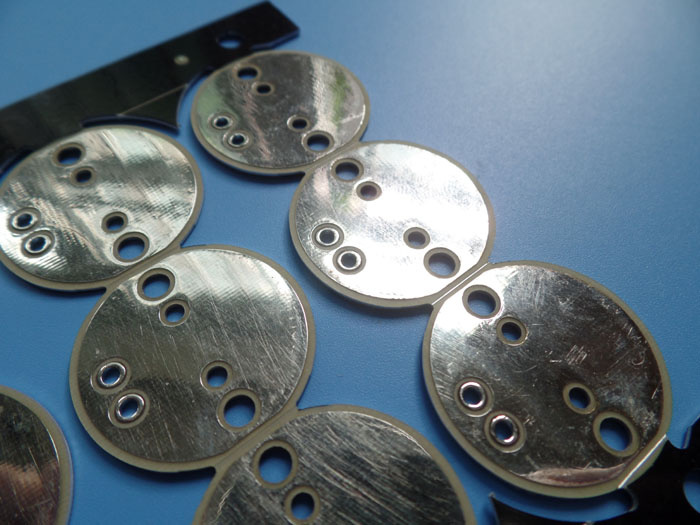

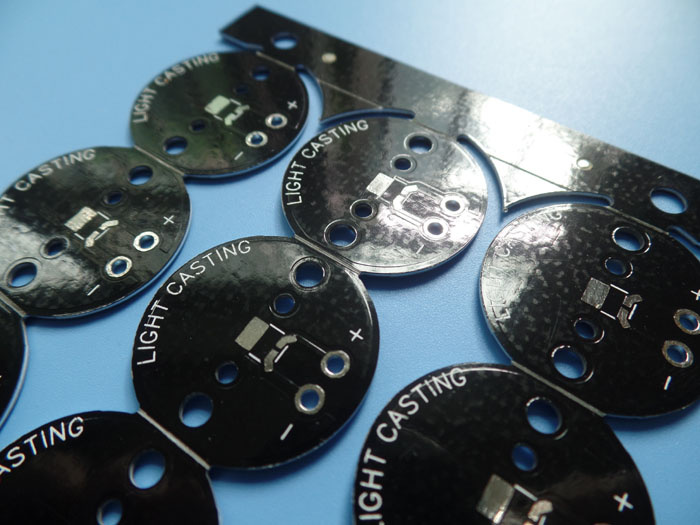

Metal Core PCB Aluminum PCB 0.6mm Thick 2 Layer Plated Through Hole(PTH) Applied In
Led Lights
Commodity Introduction
This is a type of Aluminum Base PCB for the application of Led Lights. It's a 2 layer board at
0.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fab
-ricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are pack
-ed separately.

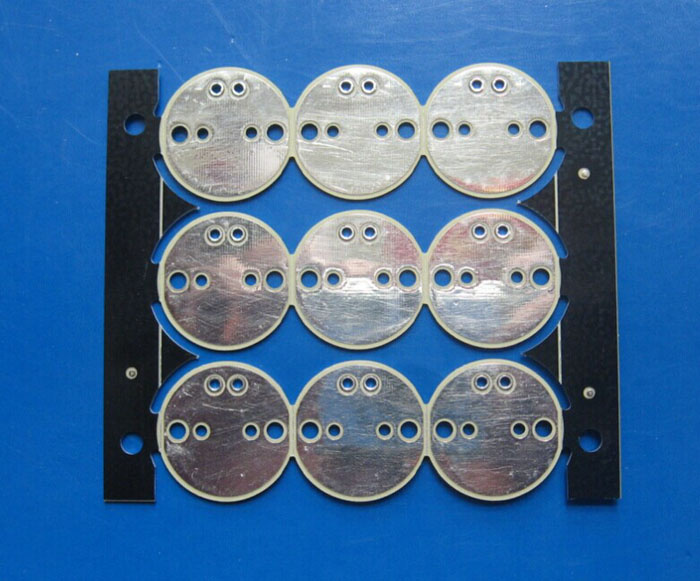

Parameters & Data Sheet| PCB SIZE | 85 x 91mm=9PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, Metal core PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+PLATE |
| 1W/MK dielectric material |
| Aluminum 1060 |
| 1W/MK dielectric material |
| copper ------- 35um(1oz)+PLATE |
| TECHNOLOGY | |
| Minimum Trace and Space: | 13mil/14mil |
| Minimum / Maximum Holes: | 1.5/3.3mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 9 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom. 12micon Minimum. |
| Solder Mask Color: | Blask |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED lighting, AC/DC Adapter
Car Power Inverter
Wireless Dongle
Car Inverter
Wireless Usb Hub |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
MCPCB CapabilityMetal core PCB's are thermal management circuit boards which use a base metal material as
the heat radiator part of the PCB. They are used in high heat generating application like LED
lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking
Garage Lighting, LED spot light etc. The metal core can be aluminum (aluminum core PCB)
and copper (copper core PCB). The most common used aluminum core PCB is the thermal
conductivity at 1W/MK and 2W/MK.| Metal Core Capability |
| NO. | Parameter | Value |
| 1 | Type of Metal Core | Aluminum, Copper, Iron |
| 2 | Model of Metal Core | A1100, A5052, A6061, A6063, C1100 |
| 3 | Surface Finish | HASL, Immersion Gold, Immersion Silver, OSP |
| 4 | Thickness of Surface plating | HASL: Sn>2.54µm, ENIG: Au 0.025-0.1µm, Ni 2.5-5µm |
| 5 | Layer Count | 1-4 Layers |
| 6 | Maximum of Board Size | 23" x 46" (584mm×1168mm) |
| 7 | Mininum of Board Size | 0.1969" x 0.1969" (5mm×5mm) |
| 8 | Board Thickness | 0.0157" x 0.2362" (0.4-6.0mm) |
| 9 | Copper Thickness | 0.5OZ(17.5µm),1OZ(35µm),2OZ(70µm),
3OZ(105µm),4OZ(140µm) |
| 10 | Minimum Track Width | 5mil (0.127mm) |
| 11 | Minimum Space | 5mil (0.127mm) |
| 12 | Minimum Hole Size | 0.0197" (0.5mm) |
| 13 | Maximum Hole Size | No limit |
| 14 | Minimum Holes Punched | PCB thickness <1.0mm: 0.0394" (1.0mm) |
| PCB thikness 1.2-3.0mm: 0.0591" (1.5mm) |
| 15 | PTH Wall Thickness | >20µm |
| 16 | Tolerance of PTH | ±0.00295" (0.075mm) |
| 17 | Tolerance of NPTH | ±0.00197" (0.05mm) |
| 18 | Deviation of Hole Position | ±0.00394" (0.10mm) |
| 19 | Outline Tolerance | Routing: ±0.00394" (0.1mm) |
| Punching: ±0.00591" (0.15mm) |
| 20 | Angle of V-cut | 30°, 45°, 60° |
| 21 | V-cut Size | 0.1969" x 47.24" (5mm×1200mm) |
| 22 | Thickness of V-cut Board | 0.0236" x 0.1181" (0.6-3mm) |
| 23 | Tolerance of V-cut Angle | ±5º |
| 24 | V-CUT Verticality | ≤0.0059" (0.15mm) |
| 25 | Minimum Square Slots Punched | PCB thickness < 1.0mm: 0.0315" x 0.0315"
(0.8 x 0.8mm) |
PCB thickness 1.2-3.0mm: 0.0394" x 0.0394"
(1.0 x 1.0mm) |
| 26 | Minimum BGA PAD | 0.01378" (0.35mm) |
| 27 | Minimum Width of Solder Mask Bridge. | 8mil (0.2032mm) |
| 28 | Minimum Thickness of Solder Mask | >13µm (0.013mm) |
| 29 | Insulation Resistance | 1012ΩNormal |
| 30 | Peel-off Strength | 2.2N/mm |
| 31 | Solder float | 260ºC 3min |
| 32 | E-test Voltage | 50-250V |
| 33 | Thermal Conductivity | 0.8-8W/M.K |
| 34 | Warp or Twist | ≤0.5% |
| 35 | Flammability | FV-0 |
| 36 | Minimum Height of Component indicator | 0.0059"(0.15mm) |
| 37 | Minimum Open Solder Mask on Pad | 0.000394" (0.01mm) |
