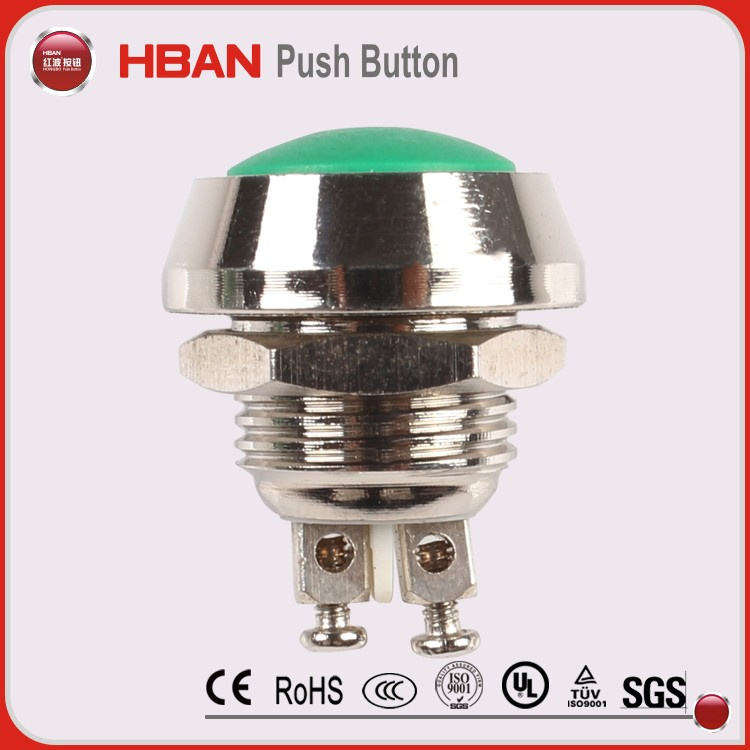

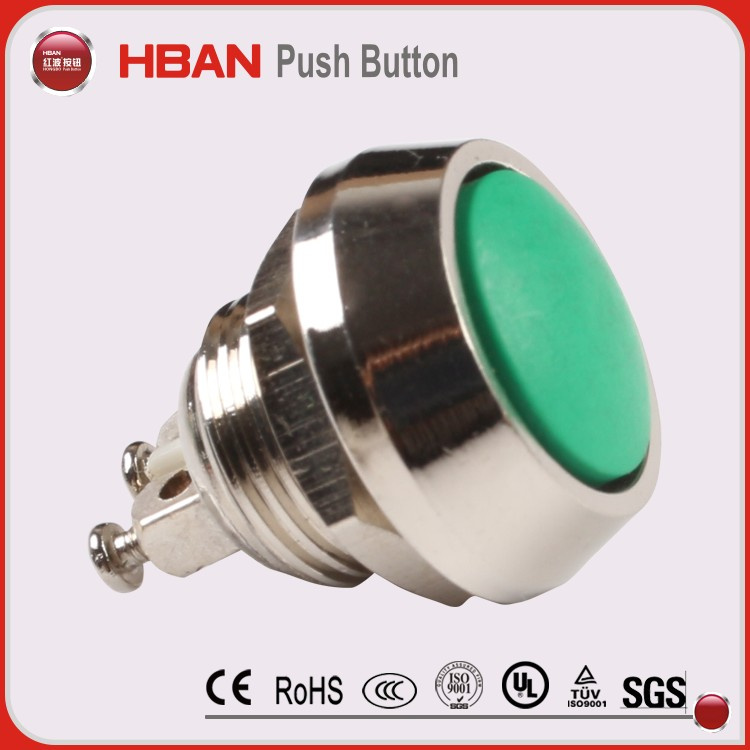

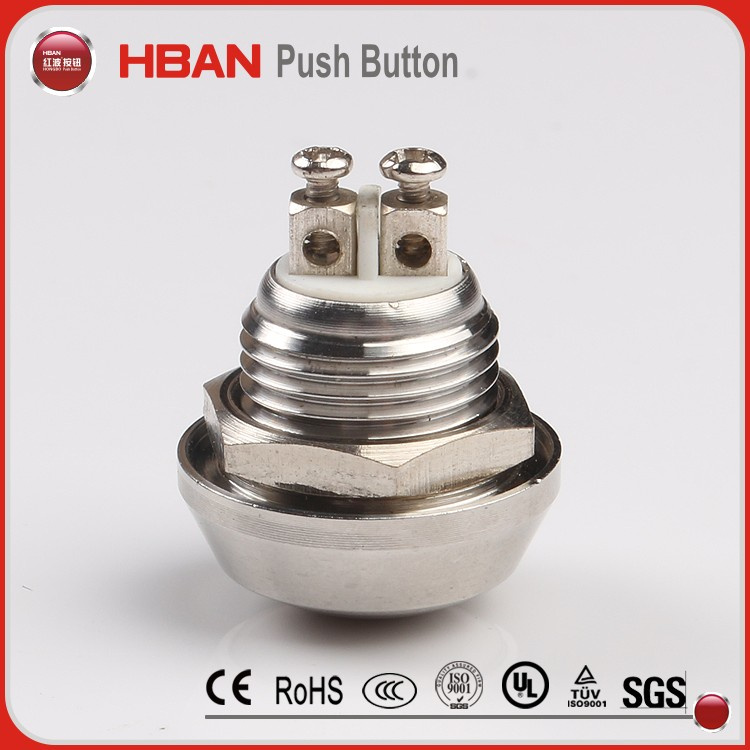

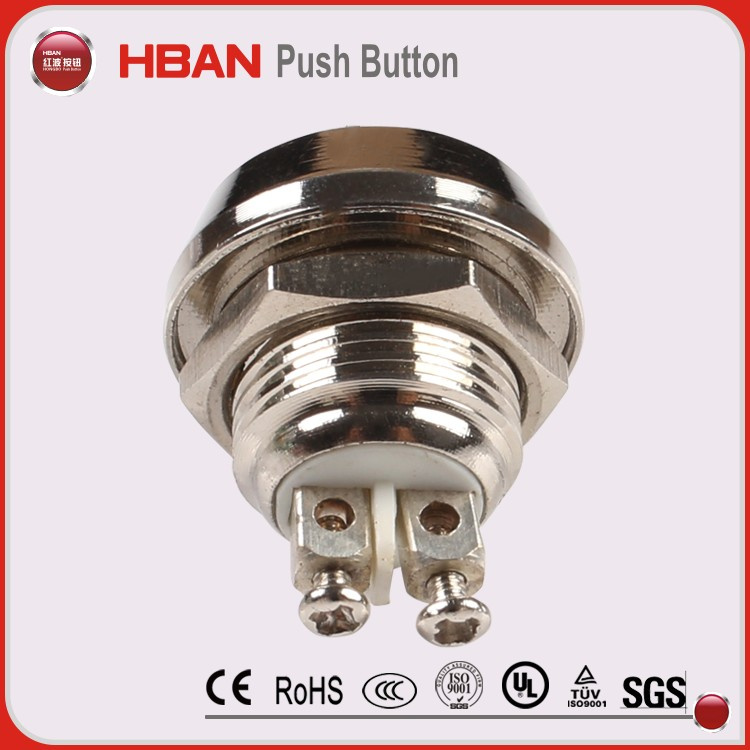

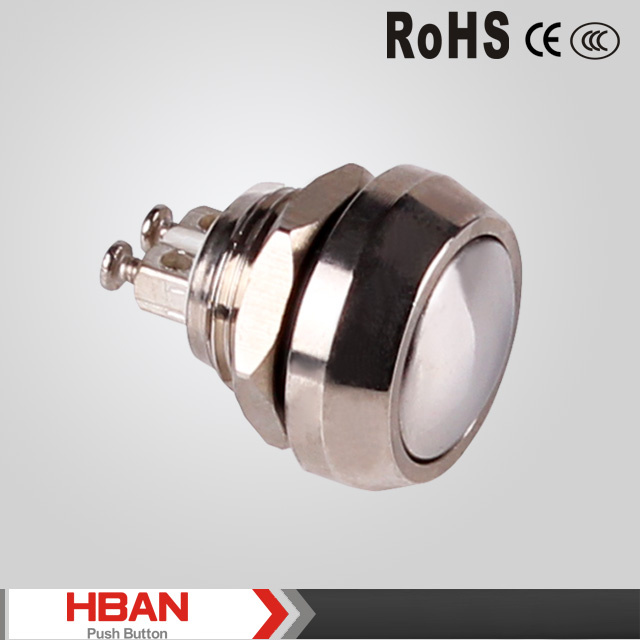

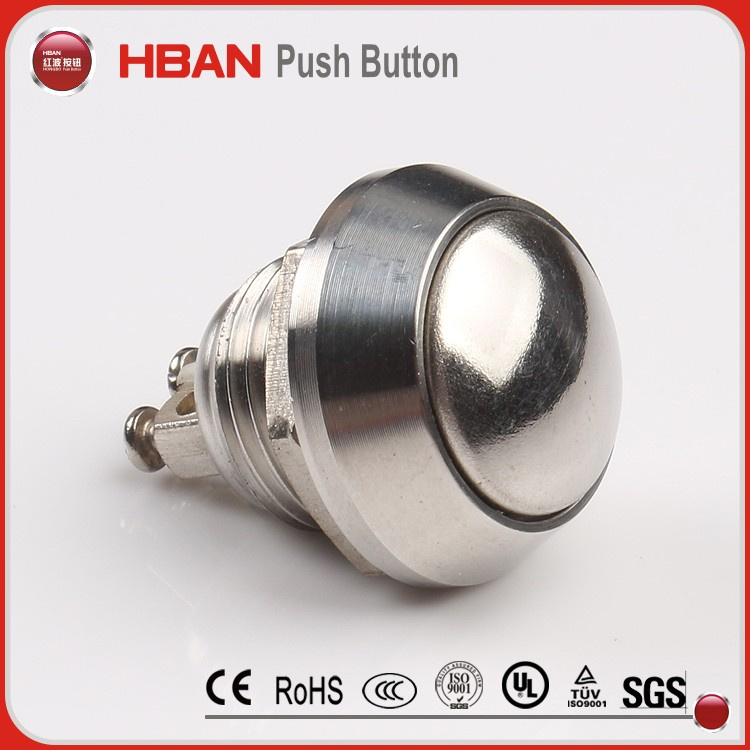

Metal Push Button on off Switch

Prod Model:	HBGQ12B-10/J/S
Item No.:	Hbgq12b-10/J/S
Switch Rating:	2A/36VDC
The Front Shape:	Domed
The Crust Material:	Stainless Steel
Protection Degree:	IP65,Ik08
Manufacturer:	Hban
Size:	12mm
Operation Type:	Momentary
Contact Configuration:	1no
Terminal Type:	Screw Terminal
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	RoHS

Product Description

metal push button on off switch

Item No.:

GQ12B-10/S(1NO, Momentary, stainless steel)



Specification:

Mounting Hole Size: Φ 12mm
Switch Rating: 2A/36VDC
The Front Shape: domed
The Crust Material: stainless steel
Protection Degree: IP65, IK08
terminal type:screw ternimal



Packging Details:

We pack 50 pieces diameter 12mm metal push button switches into 1 foam box to protect them. We supply 50 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into
A 5 layers corrugated export carton.





FAQ:

Why choose us?

1 :complete product catagory,metal push button switch,plastic bush button switch,signal light,rotary switch,key lock switch,emergency stop switch,buzzer and so on.

2:13 years manufacturing experiences

3:factory direct price

4safe payment terms:T/T,PAYPAL,WEST UNION

5:OEM avaliable

6 provideing customized prodects

7 having certificate of CCC,CE,ROHS,UL,TUV,SGS,ISO9001




PRODUCT SPECIFICATION:

ITEM,NO	HBGQ12B-10/S
SPECIFICATION	1NO,MOMENTARY,STAINLESS STEEL
FRONT SHAPE	DOMED
CRUST MATERIAL	STAINLESS STEEL
SWITCH RATING	2A/36VDC
PROTECTION DEGREE	IP65,IK08
TERMINAL TYPE	PIN TERMINAL(2X0.5MM)
OPERATIN TEMPRATURE	-20ºC+55ºC
DIELECTRIC STRENGTH	2000VAC
MECANICAL LIFE	>1000000
MECHANICAL	>200000
PANNEL THICKNESS	1-5MM
TORQUE	5-14nNm
OPRATING STROKE	ABOUT 2.5MM
CONTACT ATERIAL	SILVER ALLOY
BUTTON MATERAL	PBT
CASE MATERIAL	stainless  steel
BASE MATERIAL	PBT

About Us:


Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.

We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.

We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
