| Prod Model: |
ZK1PA+ ZY1-2 -B |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Metal |
Product Description

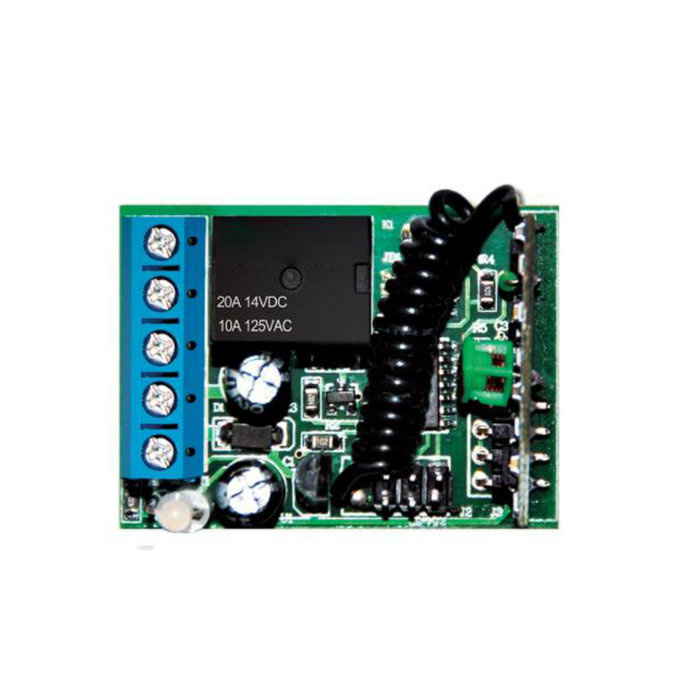

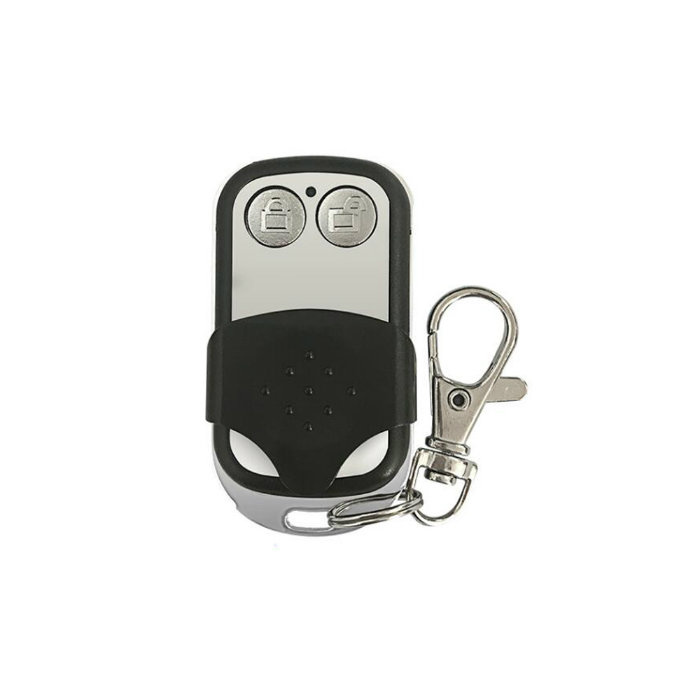

Product Description:metal shell remote control with 12V 1CH learning code transmitter and receiver
Features:
It is designed with small size, beautiful exterior , Sound wave resonator (SAW) is used for stabilizing frequency, It is applied for wireless alarms, wireless controlling devices, etc.
Using High stability, SMT components, SAW (sound wave resonator)
Optional for encoding IC
Tech Spec:
| Operating voltage | DC12V |
| Operating current | ≤ 10mA |
| Transmitting power | > 10mw |
| Modulation mode | ASK (AM) |
| Operating frequency | 315MHZ,433.92 MHZ (available for customer appointment) |
| Transmitting distance | > 80m (open space) |
| Encoding type | fixed code ,learning code, rolling code |
| Size | 55 * 30* 30mm |
Applications:
Widely used in various anti-theft alarms, security systems, Remote controlling devices, Motor-driven curtain, roller blind door, garage / gate barriers, motorcycle, short-range wireless remote control products, industrial control products.
Features:
High confidentiality, large storage , stable performance and dispensing with traditional jumpers or switches coding, just wireless remote control will be fired the receiving signal controller, make this controller receive and store the signal from remote control .
Tech Spec:
| Operating voltage | DC12V/24V |
| Operating frequency | 315,433.92 MHz |
| Frequency deviation | ± 0.2MHz |
| Operating temperature | -40 °C ~ +80 °C |
| Receiving sensitivity | ≥-105dBm |
| Modulation | AM |
| Signal output method | L4:Latch-signal interlocking, M4:Momentary-signal non-locking ,T4:Toggle-signal self-locking , Signal delay function |
| Decoder chip | It can use with transmitter which is fixed code (PT2262/PT2264/SC2262)and learning code (EV1527/HS1527) |
| Size | 70*40*22mm |
Application:
Mainly used in electric doors, windows, lifting equipment, gateways, industrial control, security and protection field(wired to wireless switching system) ,it can support remote control , which can composite a set of wireless intelligent remote control components .

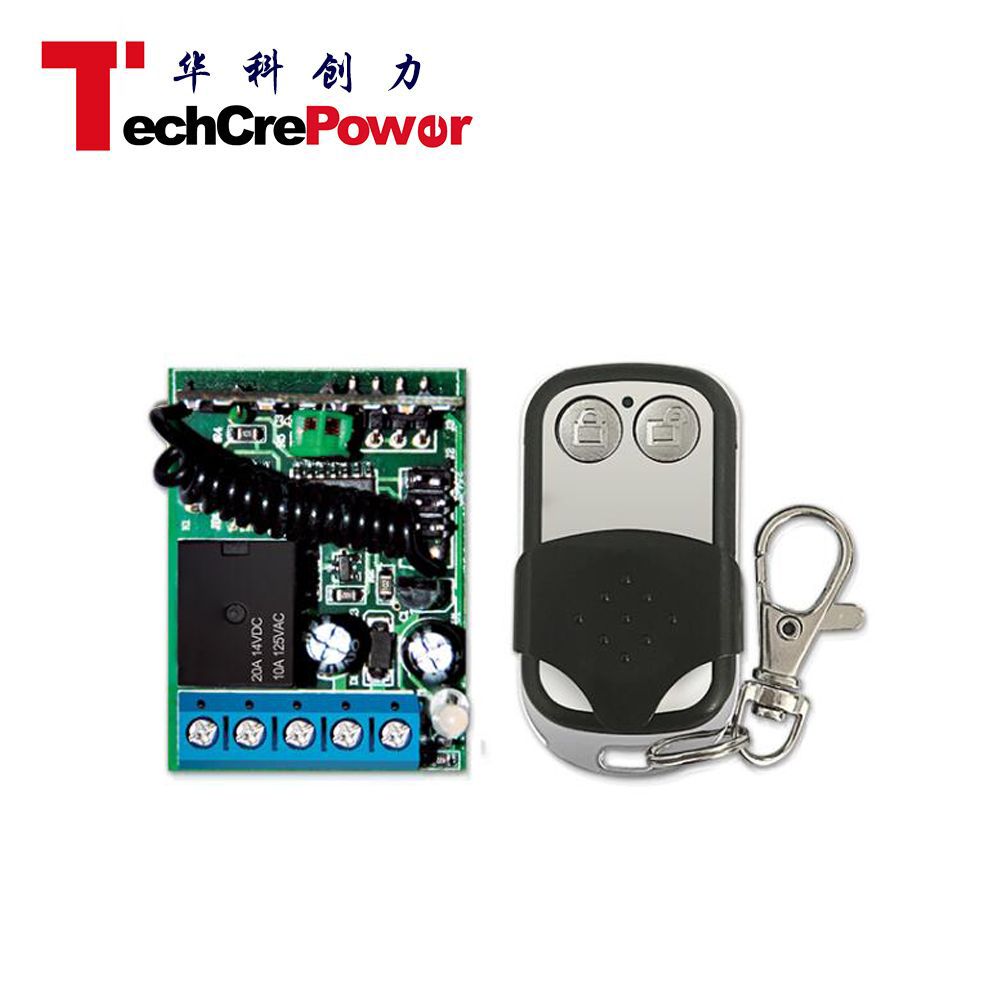

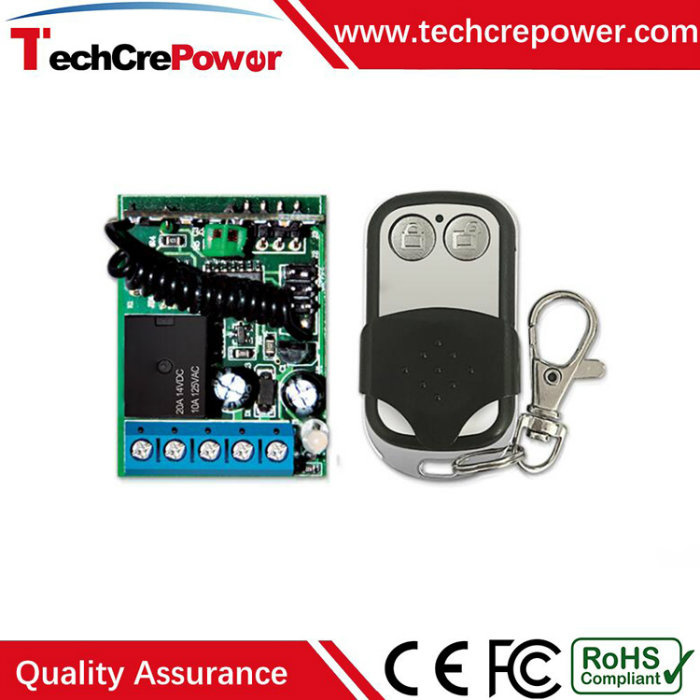

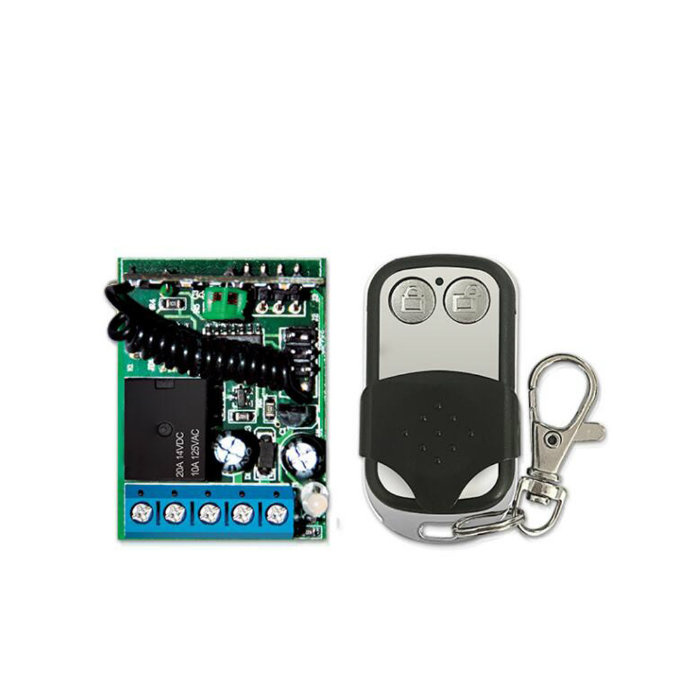

Product Photo:
Product Certification:

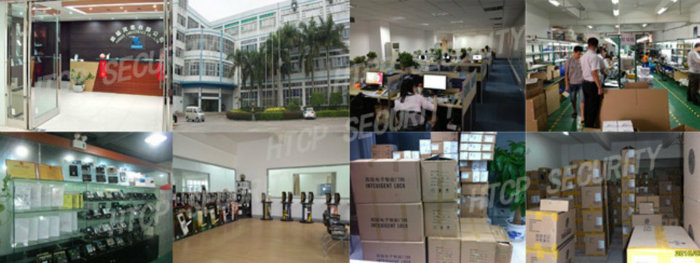

Our Factory:
Our Advantage:
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products. Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
