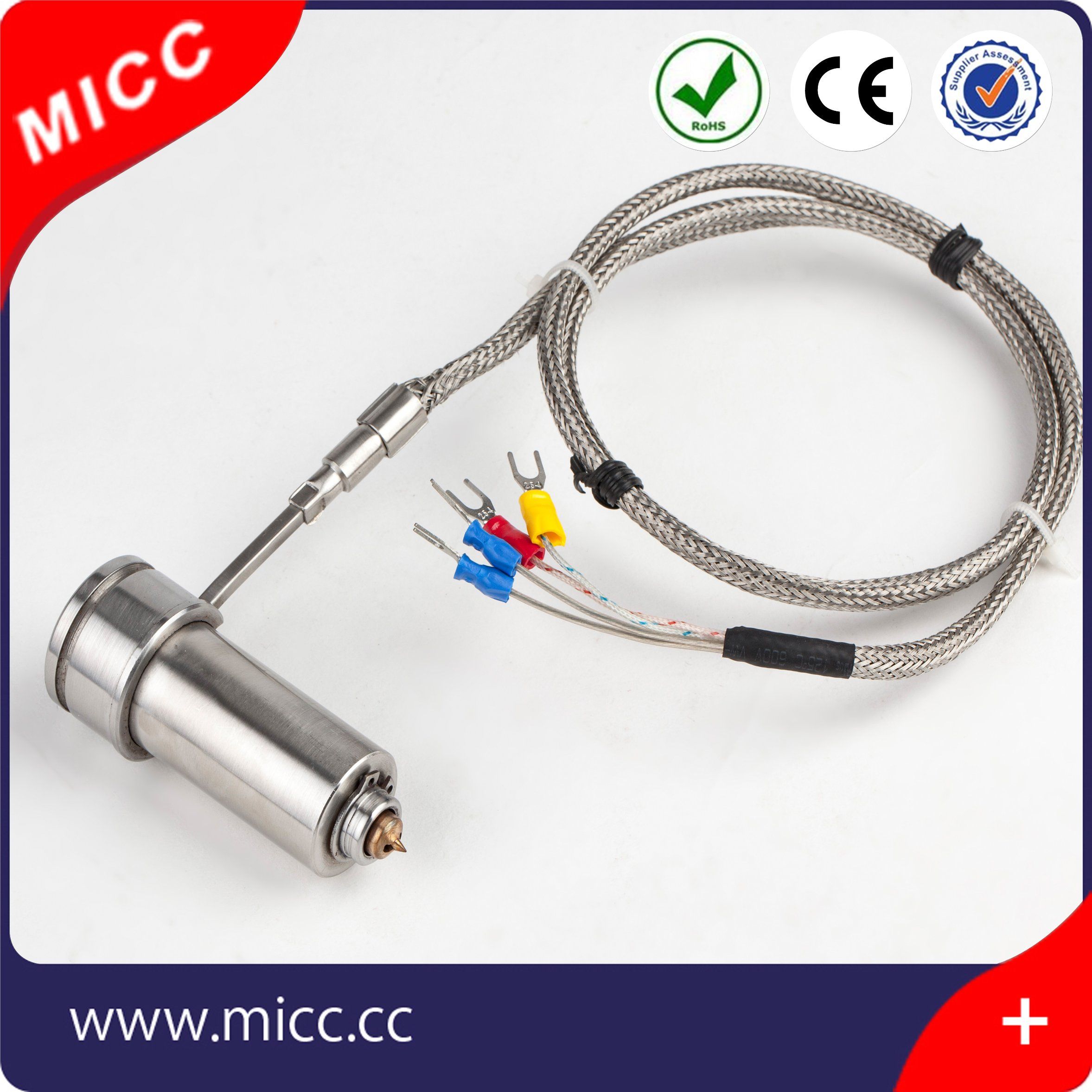

Micc 12V~440V Temperture Cartridge Heater

Prod Model:	Cartridge Heater
Voltage:	12V~440V
Diameter:	1.2~4mm

Product Description

Structure of thermocouple:

Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead material, lead lengths and sensor material are just a few of the variable that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment response time and accuracy. The junction of the thermocuple can be grounded, ungrounded or exposed. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed by determines the type of thermocouple manufactured.

1. Diameter and length: Can be customized as customer's requirements(16mm or 20mm)


Structure of screw thread thermocouple:

Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead material, lead lengths and sensor material are just a few of the variable that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment response time and accuracy. The junction of the thermocuple can be grounded, ungrounded or exposed. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed by determines the type of thermocouple manufactured.
1. Diameter and length: Can be customized as customer's requirements(16mm or 20mm)
2. Terminal box: Water-proof type, splash-proof type, anti-explosion type, connector type, import type.
3Fixed device: Flange/none/screw
4. Temperature Range: 0~1300 centigrade.
5. Terminal blocks: Terminals box
Type: B, j, k
Temp range: 0-1300 centigrade
Accuracy: < ± 0.5% t
Insulation resistance: 5MΩ (20° C)
Size: 300, 400, 450, 500, 550...(mm)
Features of screw thread thermocouple:
Thermocouple type: Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple, high temperature thermocouple, platinum and rhodium thermocouple, anti-corrosion thermocouple, , wear-resistence thermocouple, high temperature thermocouple, special thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armed thermocouple etc
Application of screw thread thermocouple:
Plastic injection molding machinery; Food processing equipment; Engine and turbine exhaust gas; Semiconductor processing; Heating treating and metals processing; Medical equipment; Aerospace industries; Packaging equipment; Test standards.
