| Model Number: |
K, N, E, J, T |
| Application: |
Temperature Sensor |
| Conductor Material: |
Nicr-Nisi, Nicrsi-Nisi), Nicr-Konstantan, Fe-Konst |
| Sheath Material: |
Ss321(Ss304), Ss316, Ss310, Incl600, Nicrobell |
| Insulation Material: |
99.6%High Purity MGO |
| Brand: |
Micc |
Product Description
MICC 99.6% high purity Mgo K type mineral insulated cable cn
Quick Details
| Product Name | Code | Type | Sheath material | Outer dia.(mm) | Temperature | |
| Ni Cr - Ni Si | KK | K | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 600 | |
| SS316 | 4.0-8.0 | 800 | |
| | 0.5-1.0 | 500 | |
| SS310 | 1.5-3.2 | 800 | |
| INCL600 | 4.0-6.4 | 900 | |
| | 8.0-12.7 | 1000 | |
| Ni Cr Si - Ni Si | NK | N | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 600 | |
| SS316 | 4.0-8.0 | 800 | |
| | 0.5-1.0 | 500 | |
| SS310 | 1.5-3.2 | 800 | |
| INCL600 | 4.0-6.4 | 900 | |
| | 8.0-12.7 | 1000 | |
| Ni Cr -Konstantan | EK | E | SS304 | 0.5-1.0 | 400 | |
| SS321 | 1.5-3.2 | 500 | |
| SS316 | 4.0-8.0 | 800 | |
| Fe - Konstantan | JK | J | SS304 | 1.0 | 300 | |
| SS321 | 1.5-3.2 | 500 | |
| SS316 | 4.0-8.0 | 800 | |
Cu - Konstantan | TK | T | SS304 | 1.0 | -200-100 | |
| SS321 | 1.5-3.2 | 100-200 | |
| SS316 | 4.0-8.0 | 100-350 | |
Wall thickness table for mineral insulated cable
| Outer Sheath(mm) | Core Wire Dia.(mm) | Sheath Material |
| Out Dia. | Wall Thickness | K,N,E,J,T Types | S,R,B Types | K,N Types | E,J,T Types | S,R Types | B Types |
| 0.5 | 0.05-0.10 | 0.08-0.12 | --- | SS304,
SS321,
SS316,
SS310,
INCL600 | SS304,
SS321,
SS316 | INCL600,
INCL800 | INCL600,
INCL800 |
| 1.0 | 0.10-0.20 | 0.15-0.20 | --- |
| 1.5 | 0.15-0.25 | 0.23-0.30 | --- |
| 1.6 | 0.16-0.26 | 0.26-0.36 | --- |
| 2.0 | 0.25-0.35 | 0.40-0.50 | 0.25-0.30 |
| 3.0 | 0.38-0.48 | 0.50-0.60 | 0.30-0.40 |
| 3.2 | 0.48-0.58 | 0.58-0.68 | 0.30-0.40 |
| 4.0 | 0.52-0.62 | 0.60-0.70 | 0.35-0.40 |
| 4.8 | 0.73-0.83 | 0.75-0.85 | 0.40-0.45 |
| 5.0 | 0.78-0.88 | 0.80-0.90 | 0.40-0.45 |
| 6.0 | 0.98-1.08 | 0.90-1.10 | 0.45-0.50 |
| 6.4 | 1.05-1.15 | 1.02-1.12 | 0.45-0.50 |
| 8.0 | 1.30-1.44 | 1.30-1.40 | 0.45-0.50 |
| 12.7 | 1.75-1.90 | 1.95-2.05 | ---
|

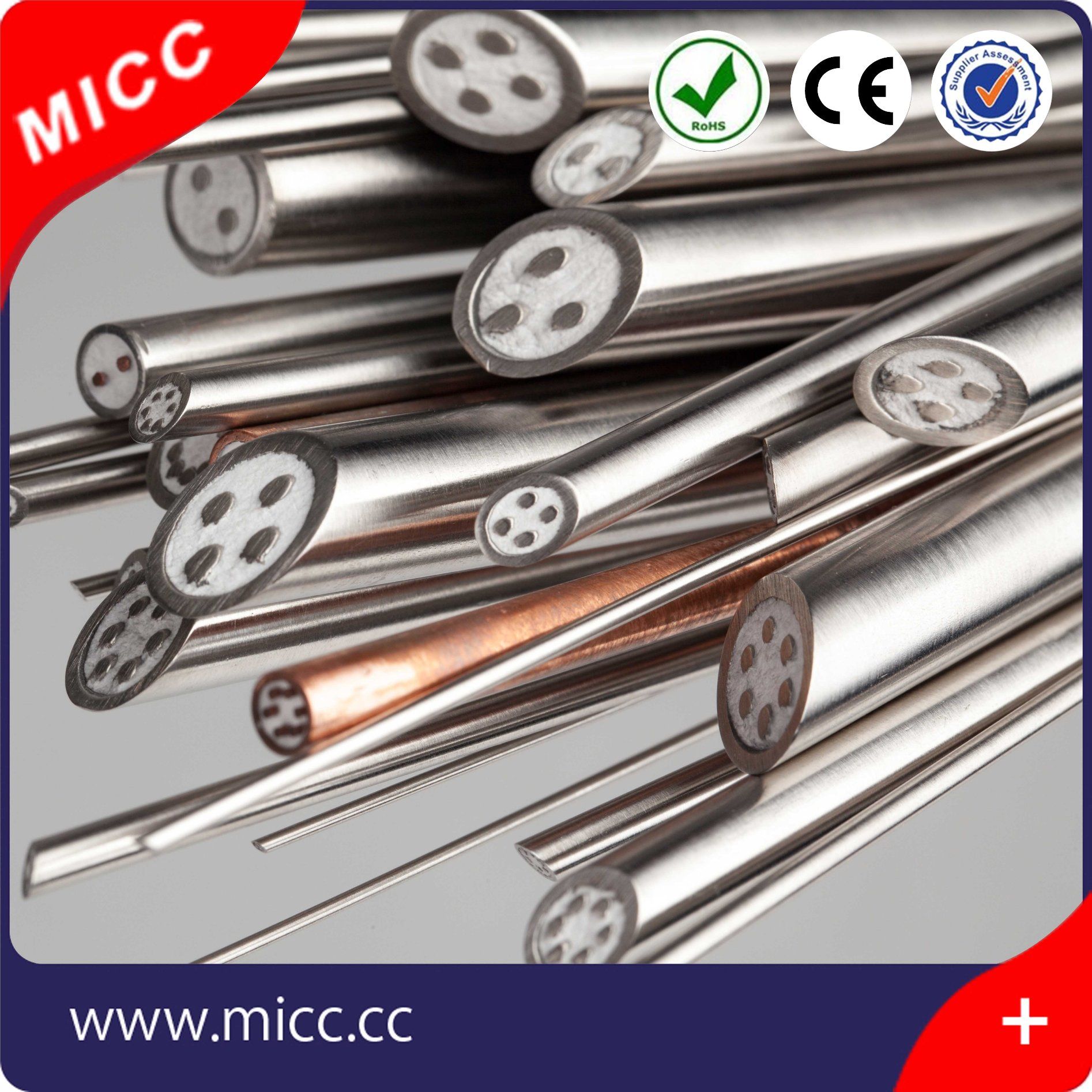

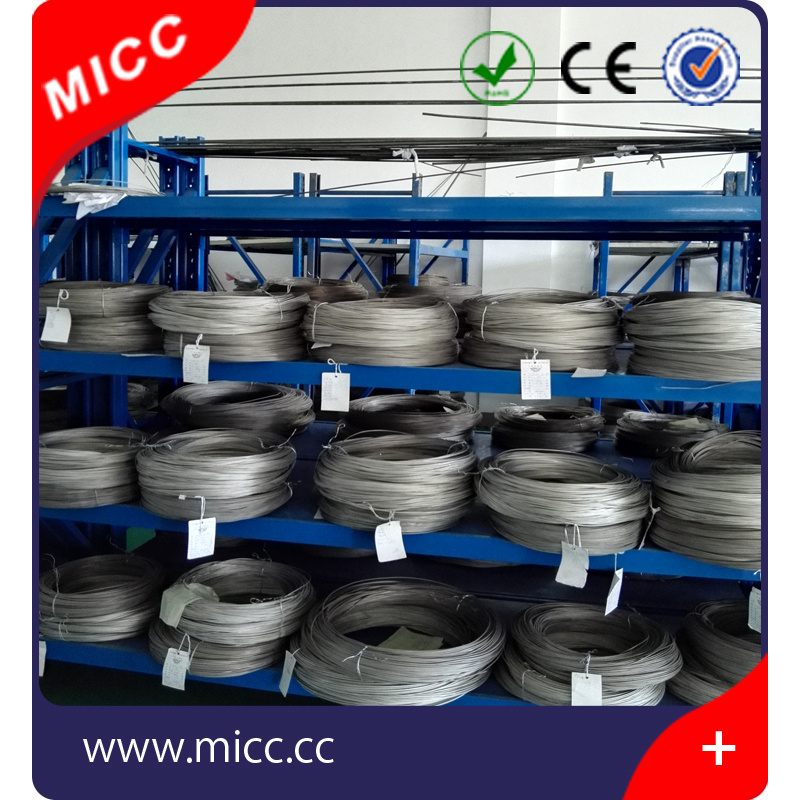

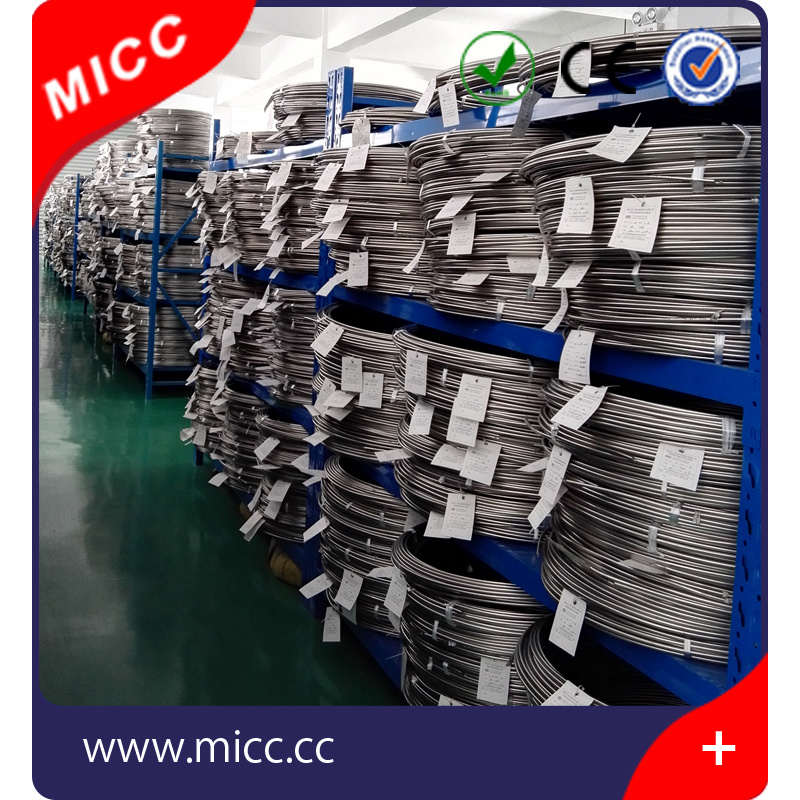

Product Show
Our Innovation
| Quality & Service At MICC, our priority is always providing our clients with great quality products and superior customer service. |
| Quick LeadTime We're dedicated to providing the quickest delivery time and work very Hard to ensure that all of your deadlines are met. |
| Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you! |
| Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers. |
| Special Offers In order to maintain our competitive edge, we are constantly running special offers on our promotion. |
Check below for more information on placing
| 1. Inquiry-Professional and accurate quotation. |
| 2. Confirm the price, trade term, lead time, artwork, payment term etc. |
| 3. MICC sales send the Proforma Invoice with MICC seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5.Initial Production step-Inform the clients that we have got the payment. And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
| 6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 7. End Production-Mass production products photos. |
| 8. Clients make payment for balance and MICC ships the goods. Inform the tracking number and check the status for clients. |
| 9. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 10. Feedback to MICC about Quality , Service, Market Feedback & Suggestion. And we will do better. |
Shipment for mineral insulated cable
MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!
According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.
We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
