Micc Nichrome 8020 Resistance Heating Wire

Name: Micc Nichrome 8020 Resistance Heating Wire
Brand: all-electronics-online.com
SKU: 815740405
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	resistance wire
Type:	Bare
Conductor Type:	Solid
Usage:	Heating
Delivery:	Short
Application:	Industry Heating Process
Shape:	Wire or Strip
Model Number:	Heating Resistance Wire
MOQ:	1kgs
Sample:	Available

Product Description

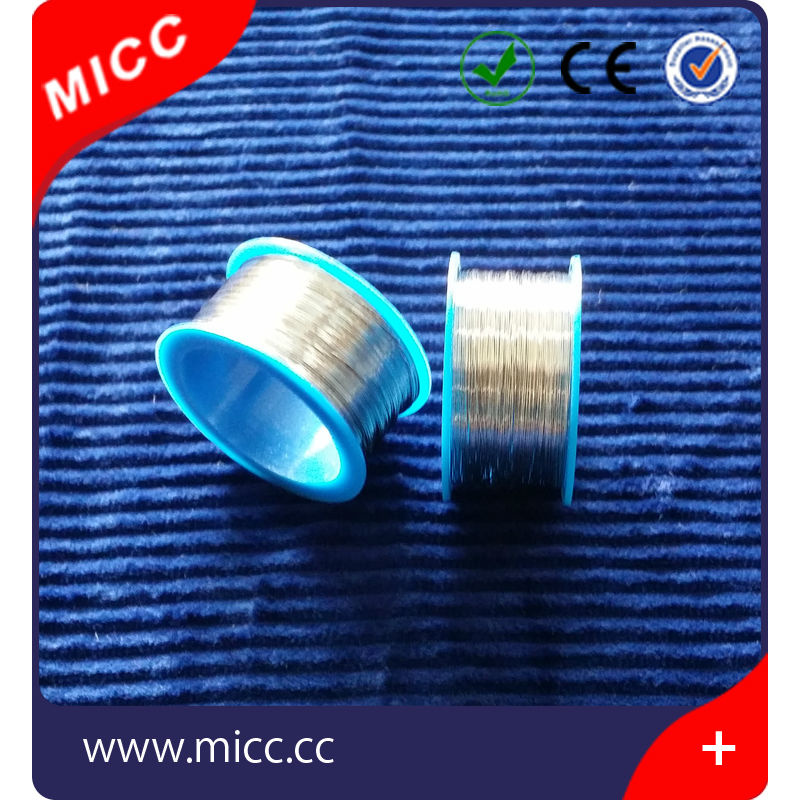

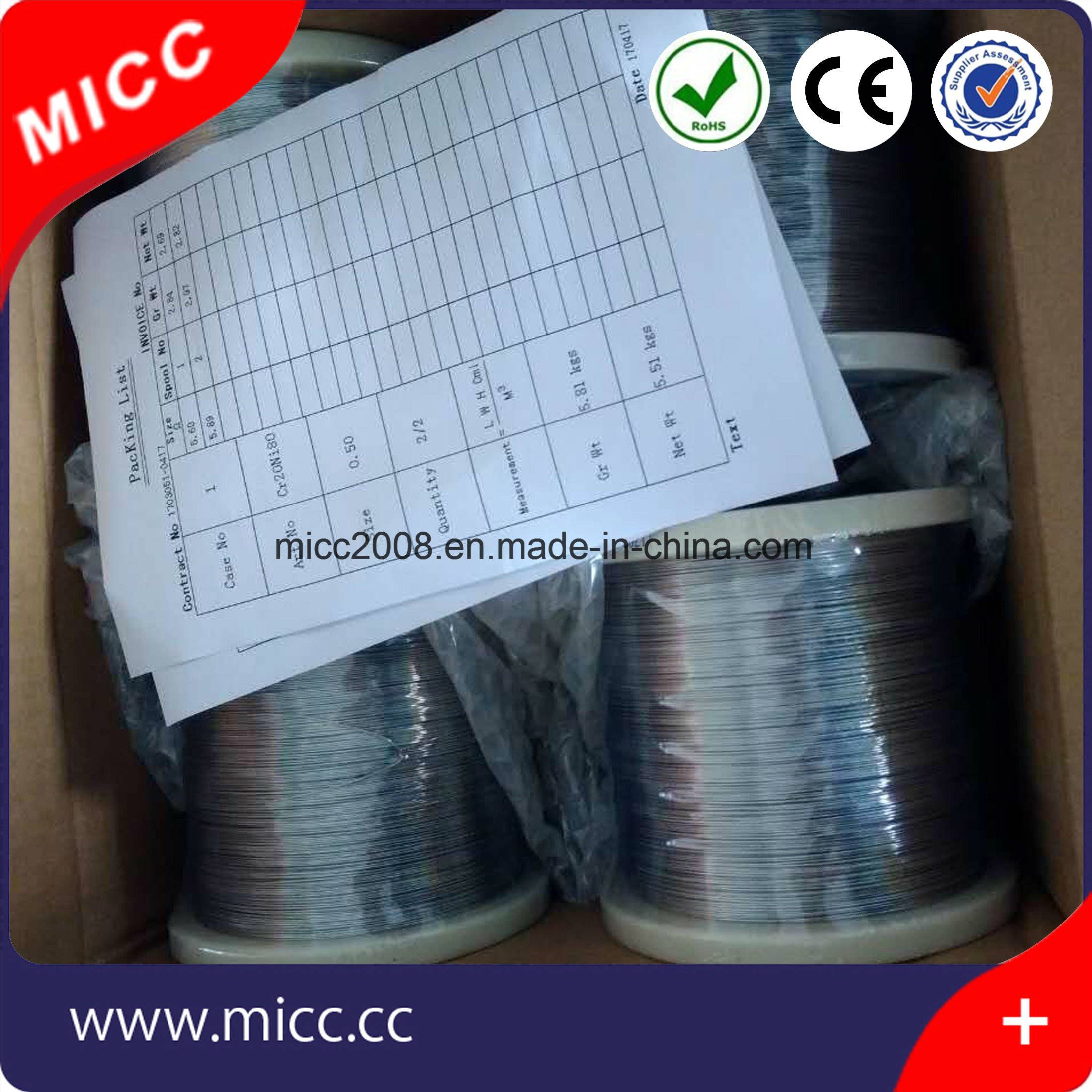

MICC NiChrome 8020 resistance heating wire

Our resistance wire(heating wire) has the characteristics of high rate of resistance, small resistance temperature coefficient and high use temperature. It has a good corrosion resistance at high temperature, low price and is particularly suitable for using in the atmosphere of sulfur and sulfide, so it is an ideal heating material used in industrial furnaces, household appliances and far-infrared devices.

Main characteristics of FeCrAl high resistance and heating alloys

Alloy Nomenclature / Performance		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main hemical composition	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element		650	1250	1250	1250	1100	1350	1400
Resistivity at 20º C (μ Ω @ m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density (g/cm 3 )		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m@ h@ º C)		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of lines expansion(α × 10-6/º C)		15.4	16	14.7	15	13.5	16	16
Melting point (approx. ) (º C)		1450	1500	1500	1500	1500	1510	1520
Tensile strength (N/mm 2 )		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		> 16	> 12	> 12	> 12	> 12	> 12	> 10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Bending frequency (F/R)		> 5	> 5	> 5	> 5	> 5	> 5	> 5
Hardness(H. B. )		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
