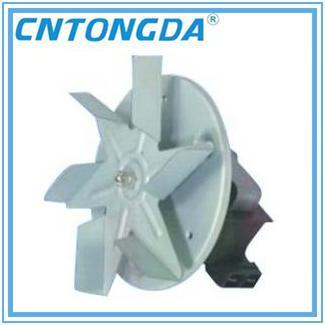

Micro Oven Fan Motor

Prod Model:	1807
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Class:	Class H
Certification:	Ce
Brand:	as Customer's Requests

Product Description

Oven fan motor, Shaded Pole Oven, Microwave Oven Fan Motor

Feature:
1) Input Voltage: 100V-240V
2) Rated Frequency: 50/60Hz
3) Input Power: 5W-110W
4) Working Condition: Continuous
5) Number of Pole: 2/4 Pole 3000/3600RPM
6) Insulation Class: B/F/H
7) Speed number: 1-5
8) Environment Temp: -20 -45 degree
9) Core lamination thickness: 7-50mm
10) Shaft diameter: φ 3-φ 12
11) Bearing: Ball bearing/sleeve bearing
12) Usage: Home appliances, such as microwave ovens, humidifiers, aquarium pumps, copy machines, vending machines, cooker hood, juicer, fan, blower, freezer, refrigerator, air-conditioner, heater, dishwasher, automatic hand dryer, hair dryer, exhauster, air purifier, etc.
13) Small, Light weight, Low loss, Long lifespan, Good self-healing, High efficiency, High reliability, Little vibration, Low noise
14) We can also supply more motors with different voltages and frequencies according to client's requirement
15) Guarantee: One year after shipment
Rated voltage and frequency can be any as needed.
Motor output power can be from 0.8W to 60W (approx)
Shaft diameter (d) can be: Ø 5, Ø 5.5, Ø 6, Ø 6.35mmor as needed.
Stator stack thickness (H) can be any from 8mm to 50mm.
Brackets can be either zinc-aluminum alloy type or metal type.
Bearing can be either sleeve bearing or ball bearing as needed.
Motor rotation direction can be either CW or CCW.
Thermostat or fuse are both available for over heating protection.
