Micro Switches

Name: Micro Switches
Brand: all-electronics-online.com
SKU: 651504905
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	others
Min Order:	1000/Piece
Pay Type:	Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe

Product Description

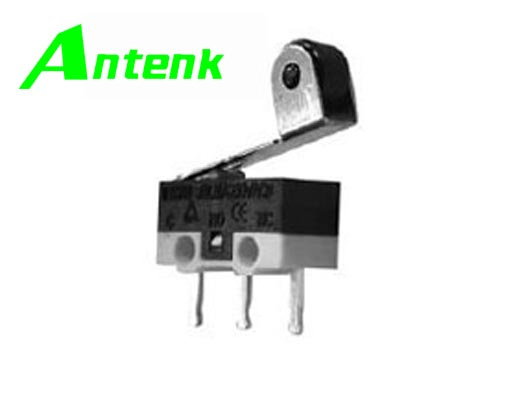

Micro switch
Rating: BDM-00/DM-04A: 3A125VAC, BDMB-00/DMB-04A: 1A/125VAC, BDMC-00/DMC-04: 0.1A/125VAC
Operting Temperature: -25degree~+85degree
Ambient Humidity: 85%RH Max.
Contact Resistance: 50m Ohm. Max. (inital)
Insuation Resistance: 100m Ohm. Max. (Between adjacent contact)
Dielectric Withstand Voltage: 1000VAC 50/60Hz for 1min.
Operating Speed: 1mm to 500mm/sec
Operating Frequency: 120 operations/min.
Service Life: Electrically: 3000, 000 operations min. Mechanically: 1000, 000 operations min. (at 60 tunes/nub. O. T. 70~100% at rating load)
Soldering Temperature: 255degree Max. (5sec).

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
