Micropower Voltage Reference Diode Lm385z-1.2 of Electronic Component

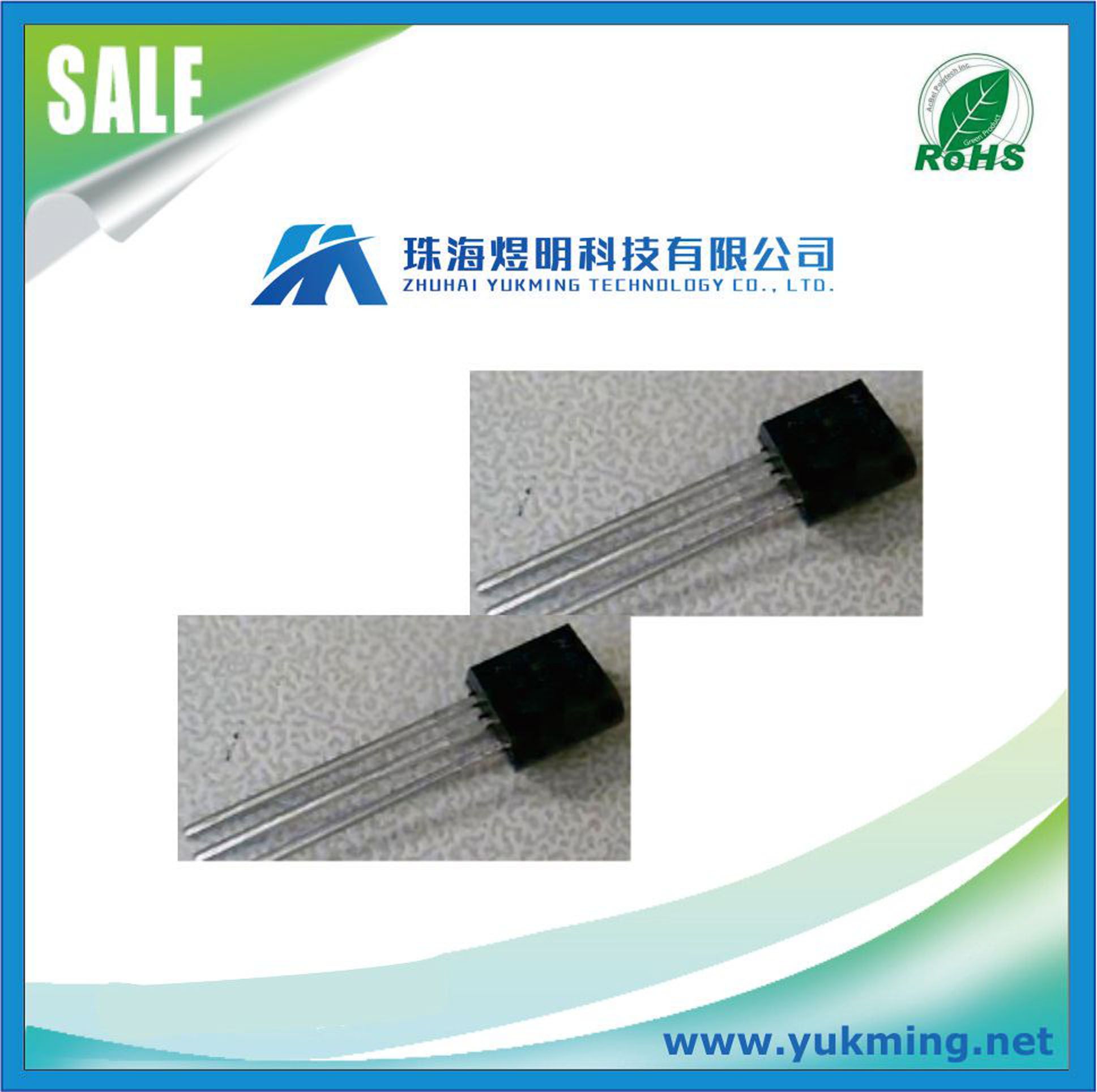

Name: Micropower Voltage Reference Diode Lm385z-1.2 of Electronic Component
Brand: all-electronics-online.com
SKU: 796688375
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 0.32/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM385Z-1.2
Encapsulation Structure:	to-92

Product Description

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Voltage Reference

DESCRIPTION
V-Ref Precision 1.235V 20mA 3-Pin TO-92 Bulk

Even in the event of large power supply variations, this LM385Z-1.2/NOPB voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 2%. With an output that has a voltage of 1.235 V, this is power management at its best. This voltage reference circuit supports shunt topology. To produce a constant current at your output, supply your circuit with a load regulation of 20mV. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C. It runs with a maximum temperature coefficient of 150ppm/°C.

Specifications
EU RoHS Compliant
Topology Shunt
Reference Type Precision
Output Voltage (V) 1.235
Initial Accuracy 2%
Load Regulation 20mV
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 70
Packaging Bulk
Maximum Temperature Coefficient 150ppm/°C
Mounting Through Hole
Package Height (mm) 5.34(Max)
Package Length (mm) 5.21(Max)
Package Width (mm) 4.19(Max)
PCB changed 3
Standard Package Name TO-92
Supplier Package TO-92
Pin Count 3
Lead Shape Through Hole

Features
• ±4 mV (±0.3%) max. initial tolerance (A grade)
• Operating current of 10 µA to 20 mA
• 0.6Ω max dynamic impedance (A grade)
• Low temperature coefficient
• Low voltage reference - 1.235V
• 2.5V device and adjustable device also available
• LM185-2.5 series and LM185 series, respectively
