| Prod Model: |
HW-MD6 |
| Supply Voltage: |
3.7V-24V |
| Current: |
Less Than 5mA |
| Operating Voltage: |
Vcc =+3 |
| Trigger Way: |
Repeat(Default) |
| Frequency: |
3.2GHz |
| Delay Time: |
Default 2 S-3s ( Adjustable) |
| Size: |
19*18*8mm |
| Distance: |
Normal=10m, Custom=0.5m-20m |
| Angle: |
180-360 |
| Working Temp: |
-20-+80 |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Customized: |
Customized |
| Condition: |
New |
| Certification: |
Ce |
Product Description

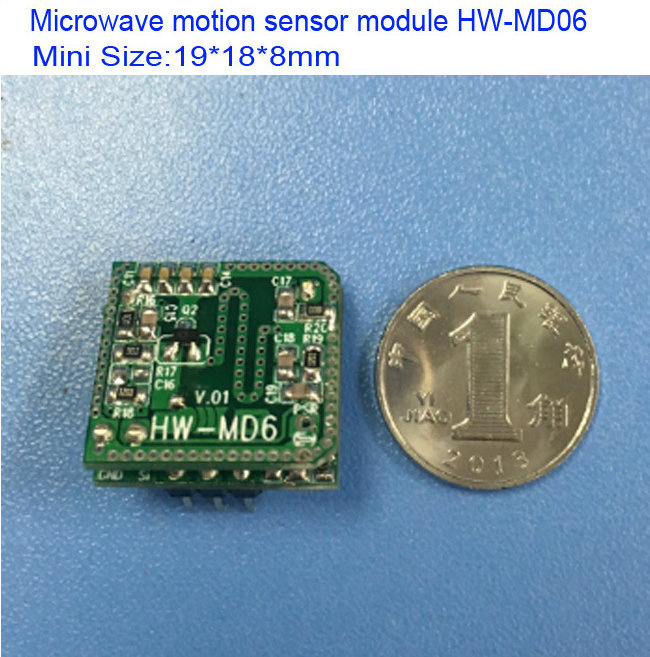

Microwave Motion Moving Sensor Module for LED Lighting(HW-MD6)
1.Detail:
HW - MD6 is a double plate composite type microwave induction module, compact circuit structure is simple, low cost and stable performance, cost-effective, especially suitable for supporting the intelligent appliances, security products, lighting products and other secondary development in the field of electronics.
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
2.Technical parameters:
| NO. | parameter item | design specifications | application and testing | estimate |
| 01 | Voltage input | DC3.7V~24V | 12V Li-batter,It working good | qualified |
| 02 | Operating voltage | Vcc =+3.3V or +5V | LDO Vcc=3.3V | qualified |
| 03 | Input current | static≤7mA;dynamic≤8mA | static≤2.5mA;dynamic≤3mA | qualified |
| 04 | Output way | High&low level:VH≈Vcc/VL=0V | High&low level≈Vcc ≈3V | qualified |
| 05 | Sensing distance | Normal=10m ;Custom=0.5m-20m | Horizontal test:
Indoor:Normal≥10m
Parking lot:Normal=8m-10m; | qualified |
| 06 | Delay time output | Default: 2s-3s | 1.5s - 2.5s | qualified |
| 07 | Frequency | 2.5GHz-3.2GHz(Basic standard),10.525GHZ | (Accord the Basic specification) | qualified |
| 08 | The dimensions | 2PCBs stacked:L19×W18×D8mm | 2PCBs stacked:L19×W18×D8mm | qualified |
| | The main parameters are reaching or higher than design value.It's qualified. |
3. Warm note:
1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock.
2.Avoid installed in the rain, to prevent damage or affect the lifetime.
3.Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
Our Service:
1.OEM and ODM are welcome.
2.Small quantity order is welcome.
3.Sample lead time: 1-3 days
4. Your inquiry for our products will be replied in 10 hours.
