Microwave Motion Sensor Ta-W201 Suitable for Light

Name: Microwave Motion Sensor Ta-W201 Suitable for Light
Brand: all-electronics-online.com
SKU: 734231842
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Microwave Sensor TA-W201
Model:	Microwave Sensor Ta-W201
Power Frequency:	50/60Hz
Installation:	Indoors, Ceiling Mounting
Detection Angle:	360 Degree
Detect Distance:	2-10m (Adjustable)
Service:	OEM/ODM
Light Source:	Incandescent
Lamp Type:	Flood light
Emitting Color:	Warm White
Material:	ABS
Appliances:	Corridor
Waterproof:	Not Waterproof
Type:	Microwave Motion Sensor Light
Theory:	Microwave Control

Product Description

Microwave Motion Sensor TA-W201 Suitable for Light

Specification:

The microwave sensors is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area.

The Detection way has the below advantages compared with other as follows:

1. Non-contact Detection,

2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light,

3. RF interference ability,

4. Transmission power only 0.2 mW, It will not harm the human Body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.

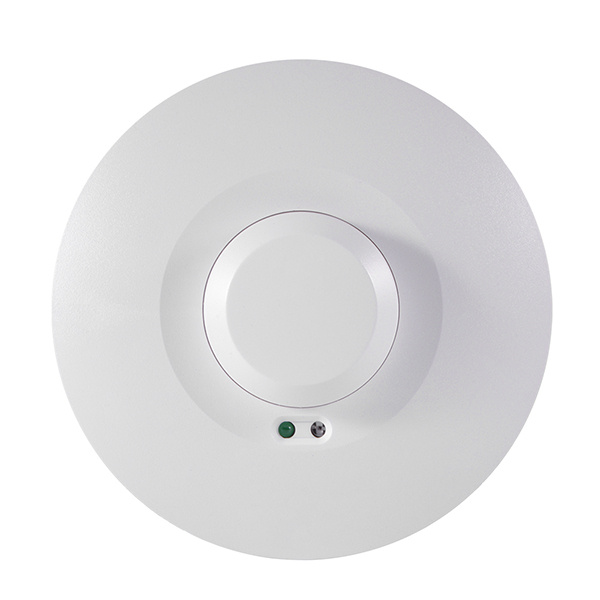

Picture:

Technical Data:

Item No.	TA-W201
Input Voltage	220-240 V/AC, 110-130 V/AC
Power frequency	50/60Hz
Installation	indoors, ceiling mounting
HF system	5.8GHz CW radar, ISM band
Transmission power	<0.2mW
Detection angle	360°
Power consumption	approx.0.5W
Rated Loading	1200W (220-240 V/AC) 600W(110-130 V/AC)
Time Delay	8sec to 12min
Detect Distance (radii.)	2-10m (adjustable)
Light Control	2-2000Lux
Adjustment Type	knob
IP Rating	IP20
