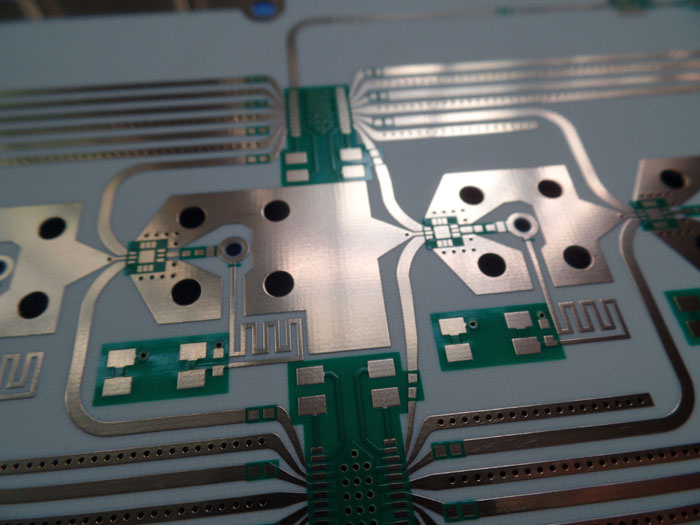

Microwave PC Board RO4350b Mixed Fr-4 PCB Hybrid Material
| Price: |
US $ 2.14/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1043R1.3 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Out Copper Thick: |
1.5 Oz |
| Inner Copper Thick: |
0.5 Oz |
| Board Thick: |
1.6mm |
| Minimum Trace and Space: |
7.99 Mil/9.37 Mil |
| Minimum/Maximum Holes: |
0.399mm/3.556mm |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b and Fr4 |
| Material: |
Fiberglass Epoxy and Hydrocarbon/Woven Glass |
| Insulation Materials: |
Epoxy Resin and Hydrocarbon/Woven Glass |
Product Description

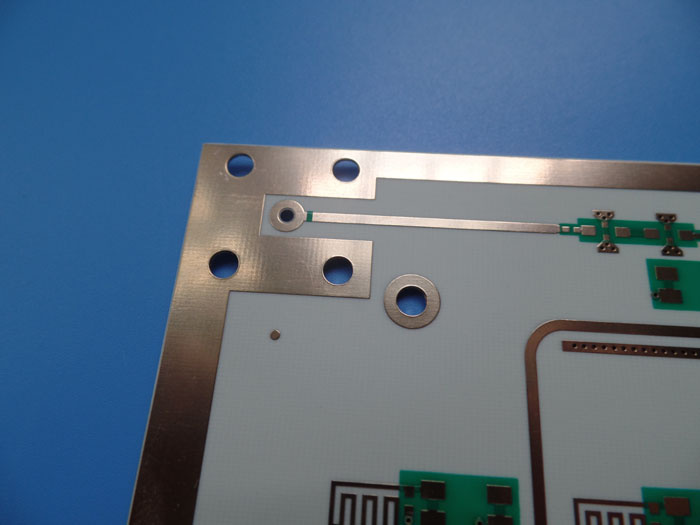

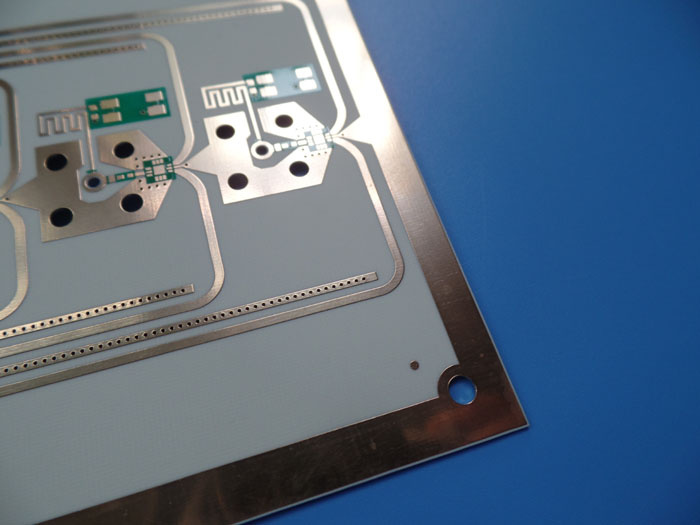

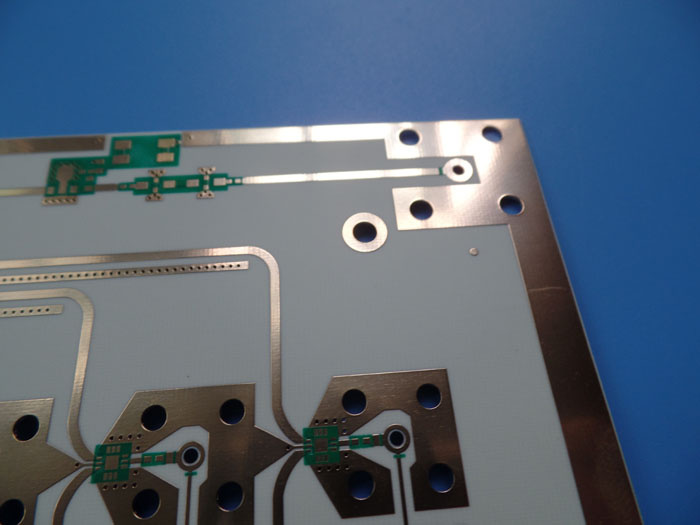

High Frequency PCB Microwave PC Board RO4350B Mixed FR-4 Hybrid Material Applied
In Multiplexer
Commodity Introduction
This is a type of RO435B mixed with FR-4 PCB for the application of Multiplexer. It's a 4 layer
board at 1.69mm thick. The base laminate is from Rogers Gorp. and ITEQ, Solder mask and
silkscreen from Nanya and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber
data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 201 x 69mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 20 mil ROGERS 4350B |
| copper ------- 18um(0.5oz) |
| Pregpreg |
| copper ------- 18um(0.5oz) |
| 28 mil FR-4 |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.99mil/9.37mil |
| Minimum / Maximum Holes: | 0.399mm/3.556mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 4511 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, RO4350B 20mil |
| Final foil external: | 1.5oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.69mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (12.7%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Multiplexer, Wireless CCTV
Tone Generator
Bluetooth PC
GPS Auto
Bluetooth For PC |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
