Microwave Radar Sensor Module for Ceiling Light (HW-M09)

Name: Microwave Radar Sensor Module for Ceiling Light (HW-M09)
Brand: all-electronics-online.com
SKU: 785649295
Availability: InStock
Rating: 4.8 (68 reviews)

Price:	US $ 3-4/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-M09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Green
Operating Current:	<5mA
Level Of Output:	High-5V/Low-0V
Trigger Way:	Repeat(Default)
Delay Time:	Default 2 S (3-200 S Adjustable)
Blocking Time:	The Default 0 S (Adjustable)
Size:	22236mm
Distance:	5-30m
Angle:	180*360
Working Temp:	-20-+80

Product Description

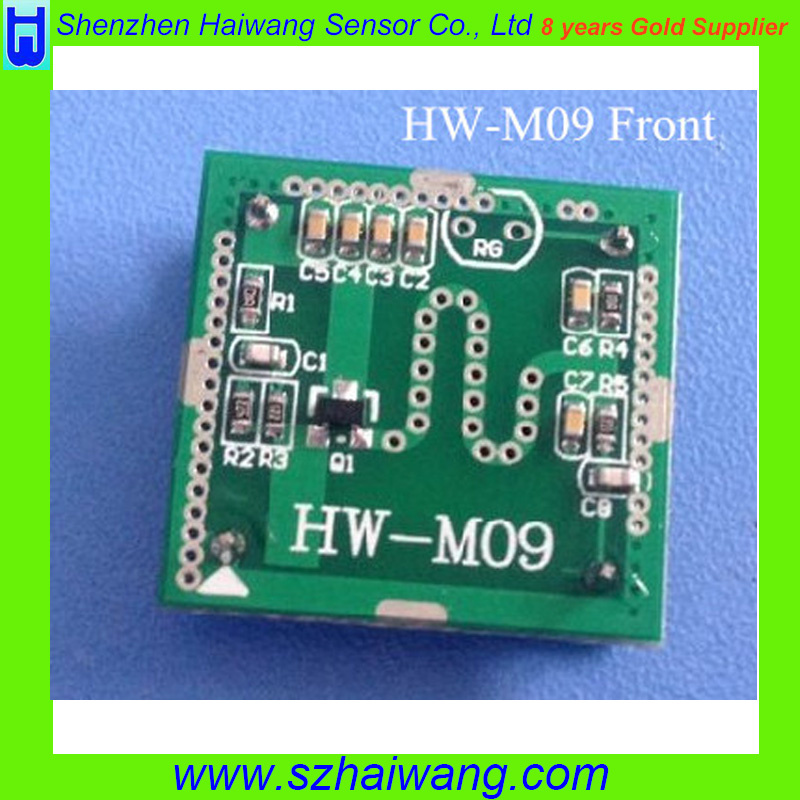

Microwave radar sensor module (HW-M09)

1:Detail:
This product is automatic induction control of Doppler radar products.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It is widely used in all kinds of human body induction lighting, anti-theft alarm situations.

HW - M09 USES planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525 GHz) and receive echo. HW - M09 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.

2:Features:
1.Strong anti-interference ability, stable performance, not influenced by environmental temperature.
2 .Small size, simple installation. Quick response and high sensitivity.
3. Induction distance can also customize, the detection angle is 180 x 360
4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc

3:Technical parameters:

Supply voltage	DC 12V (6-24V)
Operating current	<5mA
Level of output	High-5V/low-0V
Trigger way	Repeat(default)
Delay time	default 2 s (3-200 s adjustable)
Blocking time	The default 0 s (adjustable)
Size	22236mm
Distance	5-30M
Angle	180*360
Working temp	-20-+80
Transmission power	<0.2mW
Load power	1.By adding relay as a trigger signal. 2.Maximum power 1000 w
Install way	Hanging install, such as install suction a top;T8 is built
