Milight WiFi RGBW LED Strip Remote Control

Prod Model:	LYD-Mi
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Output:	4 Channel
Output Current:	6A
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12V~24V

Product Description

Basic Info
Model No.:LYD-2.4G
Voltage:DC12-24V
Output:4 channel
Output current:6A/ch
Connection mode:common anode
Static power consumption:<1w
Material:ABS
Telecontrol distance:30meters
Controller size:85*45*23mm
Max. Load Power:12V<288W, 24V<576W
Brand name:Louita
Place of origin:Shenzhen,China

Product Description
Application :
This 4-ZONE RGBW LED controller kit is a perfect solution for multi-zone lighting system control for its up-to-date function Setup.
If you are looking to controller multiple zones with a single hand-held remote, you already find the correct product!
While this controller is designed for low voltage RGB+White LED lighting products, it can also work with low voltage RGB(four channels) LED lighting products (strip light/ light bulbs).
Synchronization function enables you the flexibility to combine your lights in different groups or zones and make each group change lighting mode simultaneously but also independently from other groups.

Specification :

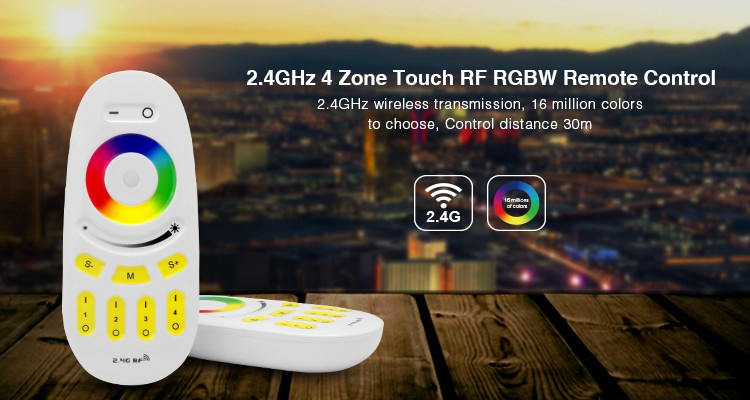

Remote:
Size: 120*52*20mm
Power: 2 pcs AAA battery (not included)
Material: ABS
Fabrication processing: multicolor printing & UV varnish
Controller:
Size: 85*45*23
Working voltage: DC12V-24V
Mas load per channel: 6A
Output connection: common anode
Operating range: 30m/98ft

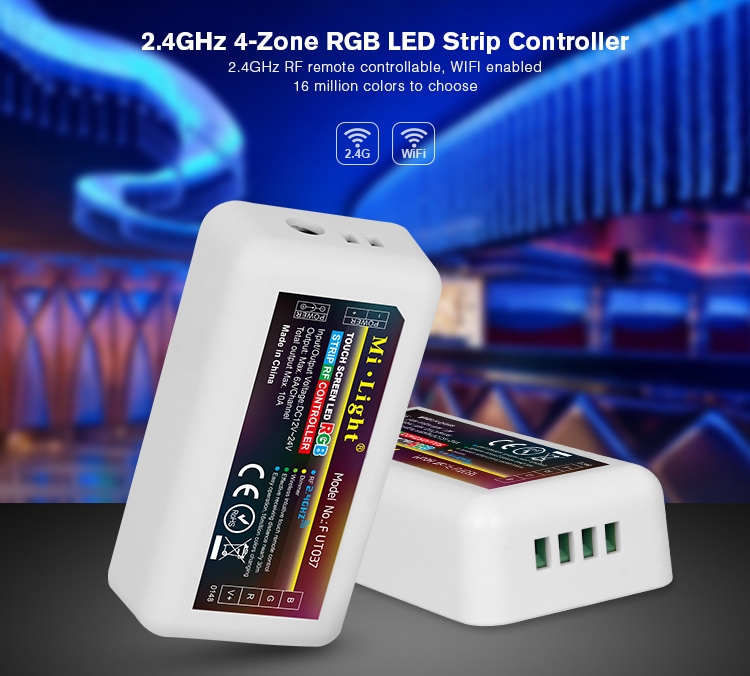

2.4G Controller :
Size: 85*45*23mm
Working voltage: DC 12V ~ 24V
Control way: R G B W four channels
Max load per channel: 6A
Total Output Current: 24A
Output connection: Common Anode(+)
Control distance: 30 meters
Programs: 9 kinds





Terms of Trade


 1.Payment: 30% advance payment by T/T, 70% balance should be paid off before loading.

 2.Production lead time:5-15 days.

 3.Sample can be delivered in 2-3 days.

 4.Loading port: Shenzhen

 7.Discounts are offered based on large quantities.


Our Service


 1. Your inquiry related to our products or price will be replied within 24 hours.

 2. All your inquiries will be well explained by our experienced staff.

 3. OEM & ODM ,also provide customized service.

 4. Distributorship is available for your unique design and some our current models.

 5.We will keep secret for customer sale area ,design ideas and all other private information

Package&Shipping
