Min DC to DC SD-15W 12V Power Supply, DC-DC,

Name: Min DC to DC SD-15W 12V Power Supply, DC-DC,
Brand: all-electronics-online.com
SKU: 839909475
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 14-15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SD-15
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	9.2-72VDC
Brand:	Ann

Product Description

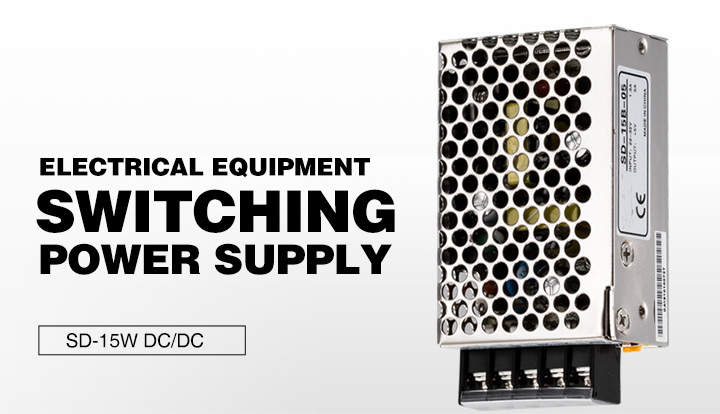

DC / DC 15W Switching Power Supply

Features:

1. DC Input A: 9.2~18V / B: 18~36V / C: 36~72V

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

MODEL

SD-15A
-5

SD-15B
-5

SD-15C
-5

SD-15A
-12

SD-15B
-12

SD-15C
-12

SD-15-24

SD-15B-24

SD-15C
-24

OUTPUT

12V

24V

1.25A

0.625A

0~3A

0~1.25A

0~0.625A

15W

100mVp-p

120mVp-p

150mVp-p

4.75~5.5VDC

10.5~13.2VDC

21.6~25.4VDC

±2.0%

±1.0%

±0.5%

±0.3%

±0.2%

±0.5%

±0.3%

±0.2%

2.5s, 25ms ,.....12VDC/24VDC/48VDC at full load

INPUT

A: 9.2~18VDC B: 18~36VDC C:36~72VDC

68%

76%

75%

72%

76%

79%

70%

77%

78%

1.9A/12VDC 0.9A/24VDC 0.45A/48VDC

PROTECTION

105~160% rated output power

Protection type :Hiccup mode ,recovers automatically after fault condition
is removed

5.75~6.75V/10%load

13.8~16.2V/10%load

27.6~32.4V/10%load

Protection type : shut down o/p voltage,re-power on to recover

ENVIRONMENT

~10~+60°C(Refer to output load derating curve)

20~90%RH non-condensing

~20~+85°C ,10~95%RH

±0.03%/°C(0~50°C)

10~500HZ , 2G 10min./1cycle,60min.each along X,Y,Z axes

SAFETY&EMC(Note4)

I/P~O/P: 2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC

I/P~O/P,I/P~FG,O/P~FG:100M Ohms/500VDC/25°C/70% RH

Compliance to EN55022(CISPR22) CLASS B

Compliance to EN61000-4-2,3,4,6,8:ENV50204,EN55024,light industry level ,
criteria A

OTHERS

78*51*28mm(L*W*H)

0.18kg,60 PCS/11.8kg
