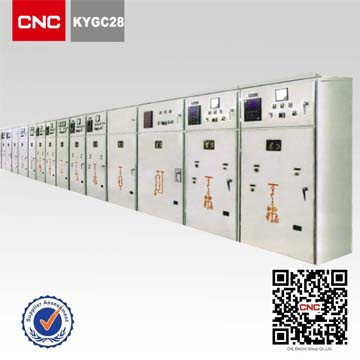

Mine Explosion Proof Switch Cabinet (KYGC28-10)

Prod Model:	KYGC28-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage(V):	380V or 660V
Lamp Body Material:	Aluminum Alloy
Corrosion-Proof:	Wf1
Protection Grade:	IP65
Mass (Kg):	1800
Type:	Power
Structure:	Protection

Product Description

About CNC

1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standard.

1. Function


KYGC28 handcart high-voltage vacuum switchgear is used as the switch device for the
Power distribution, starting. Control. Commutation, double-current switching and so on of
Such equipment as high-voltage fan and water pump, applicable for the 3-phase AC highvoltage
Power supply system with 12KV or 17.2kV rated voltage and 50Hz rated frequency.
Multiple solutions of fan switching
The switching can be realized by 3-position high-voltage iso-lated switch with corotation.
Isolation and reverse; Or by two sets fo 5-pole vacuum contactors; Or by changing the plug
Of the handcart. The structure can also be used as the switch cabinet of double-power
Supply switching, like double-power supply high-voltage switch cabinet for winch.
Multiple modes for starting motor
Such starting modes as direct starting. Reactor voltage reduction starting, frequency
Sensitive rheostat starting and one driving X soft starting can be adopted in accordance
With the max. Allowable stating current of the system, load nature and engine type.
Advanced and complete protective functions
KYGC28 switch cabinet can be provided with protection of short circuit. Over-current,
Leakage undervoltage and over-voltage in accordance with different applications. The
Protector adopts the traditional electro-mechanical relay, static multi-functional electronic
Relay or microcomputer integrated automatic protector with remote control, measurement
And communication for no-guard substation.

WHY US?

1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;

2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;

3. Our Laboratory is China Key Industrial Electrical Laboratory;

4. We have completely sales service system, ensure every detail is going smooth.

5. We have new designed products each year by our R&D Dpartment.

6. Perfect testing system ensure each product is qualified.

7. Want know more of us? Waiting for your inquiry.
