Mini 24 Key IR Remote Wireless Controller
| Price: |
US $ 1.00-1.09/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
LYD-mini24 |
| Output Current: |
2A/Channel |
| Max. Load Power: |
72W |
| Application: |
LED Products |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Transmission Distance: |
10-20m |
Product Description
Basic Info
- Model NO.: LYD-mini24
- Signal Transmission: IR Remote Control
- Certification: RoHS, CE
- Transmission Distance: <50m
- Material: Plastic
- Working Voltage: DC12-24V
- Connection Mode: Common Anode
- Max. Wattage: 72W(12V), 144W(24V)
- Specification: 24key ir led controller
- HS Code: 85371090
- Application: Household Appliances, LED Products
- Type: Button
- Universal: Universal
- Voltage: 12-24V
- Battery Type: Button Battery
- Output Current: 2A/Channel
- Button: 24
- Trademark:louita
- Origin: Shenzhen China
Product Description

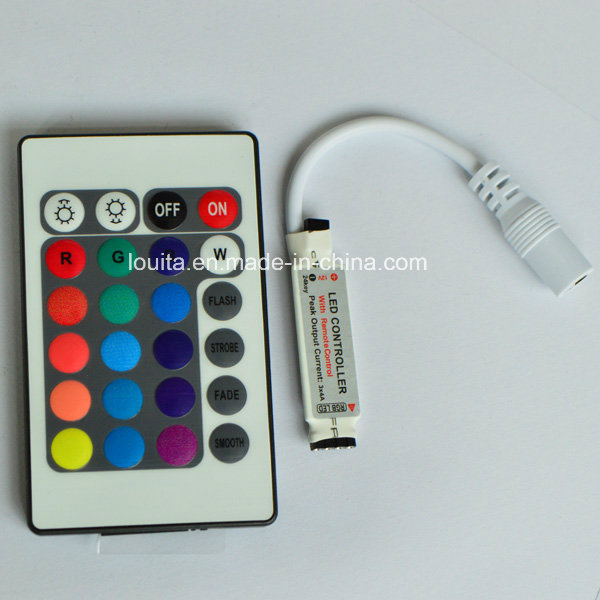

Mini 24 Key IR Remote Wireless Controller
24 Keys infrared remote controller adopts the advanced micro control unit.
It is used for controlling a variety of LED Light Strip.
It has many advantages such as low price, easy connection and simplicity to use.
Meanwhile, you could adjust brightness, static color choices
and various dynamic changes in lighting effects through infrared remote control!
Specifications:
Type: 24 Keys Remote Controller
Connection mode: Common Anode (+)
Output: DC 12V-24V
Max load current: 2A each color
Output: three CMOS drain-open output
Working Temperature: -20°C~60°C
| working voltage | DC12V-24V |
| Connection mode | Common Anode |
| Max load current | 2A/cahnnel |
| Max. output wattage | 72W(12V), 144W(24V)
|
Direction for using:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;2.Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.3.The key-press functions are shown in the table as below (in accordance with the key position order)
Brightness+(16 in all) |
Brightness-(16 in all) |
off |
on |
Static red |
Static green |
Static blue |
Static White |
Static orange |
Static light green |
Static dark blue |
Static white |
Static dark yellow |
Static cyan |
Static brown |
7 color jump/fade |
Static yellow |
Static light blue |
Static pink |
Single color jump |
Static light yellow |
Static sky blue |
Static purple |
3 color jump/fade |
Remark:when switching this four dynamic to realize 7 color jump/fade,
single color jump/ fade,than the brightness+is speed+,brightness- is speed-.in total 18 level. |
Problems |
Possible cause |
Solution |
Lamp does not light after power |
Power cord is not properly
connected, or there is not output
switching power supply |
Connect the power
cord properly or
replay the power |
Lamp power cord is not connected
or short circuit |
Connected lighting
power cord |
2. After connecting some of the
load the controller does not work |
The connected load is too large,
so that it has burned in
some of the components of the controller |
Replace parts of
components or
replace the controller |
3. After connecting to power the controller
is working properly,but remote control
can not work |
1. The blank on the button cell of
remote controller did not pulled
out 2. the remote controller
do not target the receiver |
1.Take away the
transparent blank
2.Target the remote
controller to the receiver |
With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.
Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.
Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
