| Prod Model: |
LYD-MINI-03 |
| Output: |
3 Circuit |
| Output Current: |
<2A((Each Circuit) |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<0.5W |
| Net Weight: |
11g |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Voltage: |
DC5-24V |
Product Description
Basic Info| Place of origin: | Shenzhen,China |
| output: | 3 circuit |
| output current: | <2A((each circuit) |
| Connection mode: | Common anode |
| Static power consumption : | <0.5w |
| Output Power: | 5V<30W,12V < 72W |
| Controller size: | 40*12*5mm |
| Brand name: | louita |

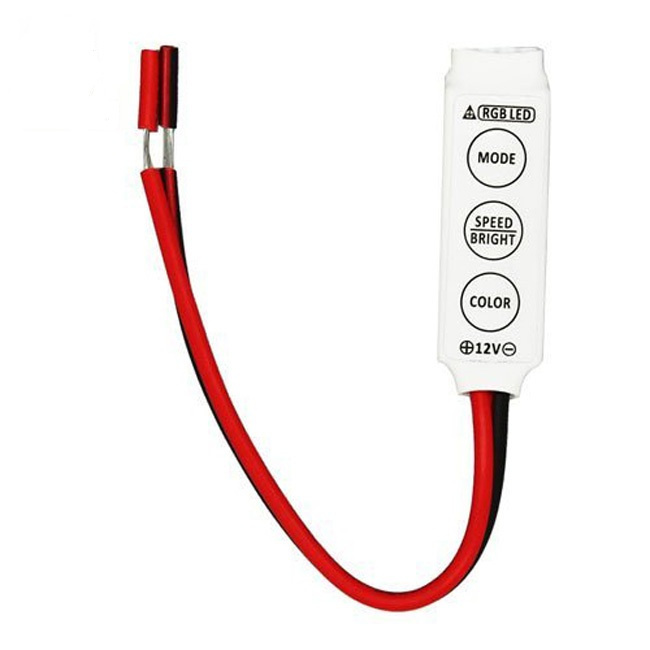

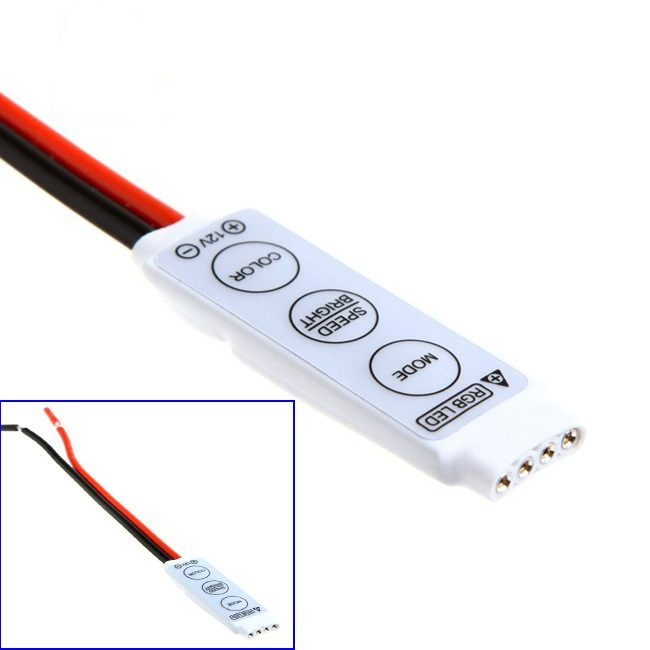

Product DescriptionMini three-button RGB controller uses advanced computer control chip, which is mainly used to control a variety of led light source for the lamps, such as: point light, soft light, wall lights, glass curtain wall lights; , Simple manipulation and so on. According to the actual needs of customers to achieve gradual, transition, gradually fades, flashing, blasting flash and other dynamic lighting effects, and a variety of static colors to choose from. At the same time the controller has a small size, easy to carry and so on.
Performance parametersModel: LYD-MINI-03
Name: 3-key mini RGB light bar controller
. Working temperature: -20-60 ºC
. Power supply voltage: DC5 ~ 24V
. Output: 3 circuits
. Connection: a total of Yang
. Controller size: L40.0 × W12.0 × H5mm
. Net weight: 11g
. Gross weight: 15g
. Static power consumption: <0.5W
. Output current: <2A (per loop)
.Output power: 12V: <72W
Instructions for useThe line order of this controller is RGB, if the connected light bar is other line order, the color change will appear in other order. Each power-up automatically restores the state before the last power-off. The three key functions on the controller are as follows:
Mode key: Press to switch to dynamic mode for the first time, then 20 dynamic modes for each press. The model table is as follows:
| Serial number | mode | Serial number | mode | Serial number | mode |
| 1 | Seven-color gradient | 8 | Purple gradually fades | 15 | Blue burst flash |
| 2 | Three-color gradually fades out | 9 | Blue gradually fades | 16 | Purple burst flash |
| 3 | Seven-color gradually fades | 10 | Three-color transition | 17 | Yellow burst flash |
| 4 | White gradually fades | 11 | Three-color gradient | 18 | White burst flash |
| 5 | Green gradually fades | 12 | Three-color flashing | 19 | Three-color burst flash |
| 6 | Yellow gradually fades out | 13 | Red burst flash | 20 | Automatic cycle |
| 7 | Red gradually fades out | 14 | Green burst flash | | |
Color key: Press to switch to the static mode. Each change of a static mode, a total of 20 kinds of static colors, the model table is as follows:
| Serial number | mode | Serial number | mode | Serial number | mode |
| 1 | red | 8 | blue | 15 | brown |
| 2 | Orange | 9 | Light blue | 16 | white |
| 3 | Dark yellow | 10 | sky blue | 17 | milky |
| 4 | yellow | 11 | blue | 18 | Powder white |
| 5 | light yellow | 12 | Navy blue | 19 | Yellow and white |
| 6 | green | 13 | blue purple | 20 | Blue and white |
| 7 | light green | 14 | Purple | | |
Speed / Bright key: also known as adjustment keys. In the static mode, press this key to adjust the brightness (brightness level is 5). In dynamic mode, press this key to adjust the speed (speed level 5). Long press this key for the switch function.
Package&Shipping

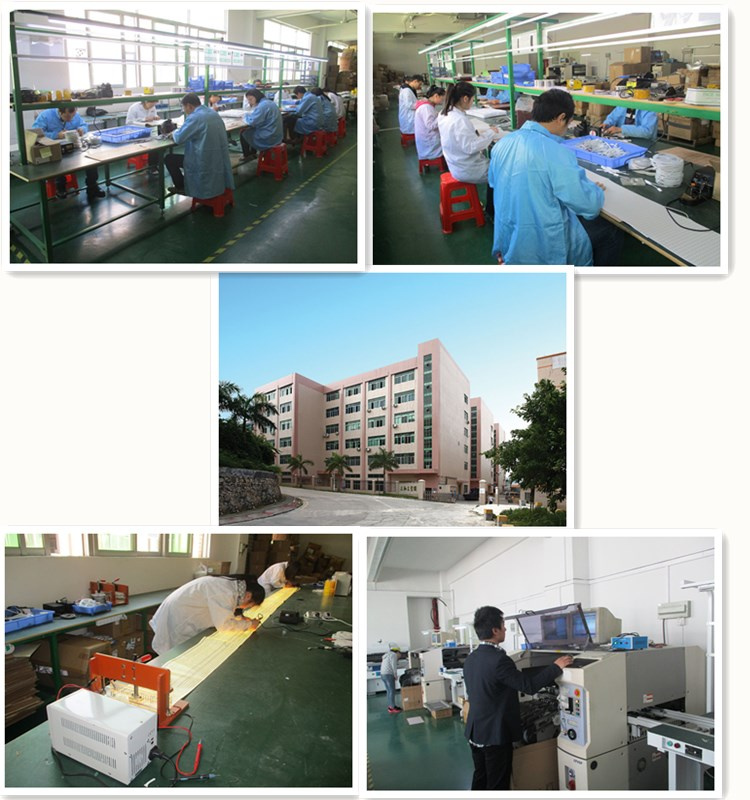

Our Factory
