| Prod Model: |

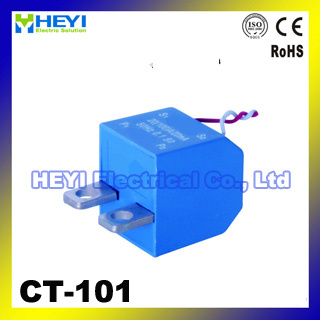

CT-101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Accuracy Class: |
0.1 |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Product description:
|
- Suitable for a wide range of current(1.5A~120A);
- There are standard holes on the primary lead wire; therefore, can be fixed at the terminal of
the electricity meters with standard bolts, which makes it both firm and convenient;
- The primary lead wire is highly customer-tailored with more than 100 specifications;
- Encapsulated with epoxy resin to ensure strong insulation ability;
- Linear output current, high precision;
- PBT anti-combustion pladtic casing.
|
The main technical parameters:
model | CT-101 |
| Rated input current | 5A / 10A / 20A / 20A |
| Rated output current | 5mA / 10mA / 20mA / 10mA |
| turns ratio | 1000:1 |
| phase angle error | ≤15'(input 5A,sampling resistor 20Ω) |
| linear range | 0~30A(sampling resistor 20Ω) |
| linearity | ≤0.3%(5%dot~120%dot) |
| Permissible error | -0.3%≤ f ≤+0.3%(input 5A,sampling resistor 50Ω) |
| isolation voltage | 4500V |
| application | Precise measurement of current and power |
| Encapsulation | Epoxy |
| installation | Loading Type |
| operating temperature | -40ºC~+85ºC |
| Model | Specification | Rated Pr.Current | Max. Current | Rated Sec.Current | Rated Sampling Voltage | Load Resistance | Accuracy Class |
| CT-101 | 5(30)A /5mA | 5A | 30A | 5mA | 100mV | 20Ω | 0.1 |
| 10(60)A/10mA | 10A | 60A | 10mA | 100mV | 10Ω | 0.1 |
| 20(100)A/20mA | 100A | 100A | 20mA | 100mV | 5Ω | 0.1 |
| 20(120)A/10mA | 120A | 120A | 10mA | 100mV | 10Ω | 0.1 |
Application :
Our products are widely used in various high-precision, low phase requirements of instrumentation and other energy devices. Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
