Mini Microwave Sensor Switch, Human Body Sensor Switch

Name: Mini Microwave Sensor Switch, Human Body Sensor Switch
Brand: all-electronics-online.com
SKU: 734333892
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Human Body Microwave Sensor Switch TA-MW13
Model:	Human Body Microwave Sensor Switch Ta-MW13
Time Delay:	5s/1min/3min/10min (or 5s/1min/5min/10min)
Detection Distance:	4-10m (Mounting Height: 3m)
Power Source:	220-240V/AC 50Hz
Detection Range:	360 Degree
Type:	Microwave Sensor Switch
Standard:	Standard
Application:	Corridor
Principle:	Microwave

Product Description

Mini Microwave Sensor Switch, Human Body Sensor Switch

Specification:

The microwave sensors is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area.
The Detection way has the below advantages compared with other as follows:
1. Non-contact Detection,
2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light,
3. RF interference ability,
4. Transmission power only 0.2 mW, It will not harm the human Body.
Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.

Technical Data:

Detection Range	360°
Power Source	220-240V/AC 50Hz
Load Type	≤400W (Inductive) ≤800W(Resistive)
HF System	5.8 GHz ±75 MHz
Detection Distance	4-10m (Mounting Height: 3m)
Time Delay	5s/1min/3min/10min (or 5s/1min/5min/10min)
Ambient Light	25lux/disable
Wiring Method	4-pole press fit terminal (Input grey L. N. Output grey N. L')
Product Size	623625mm

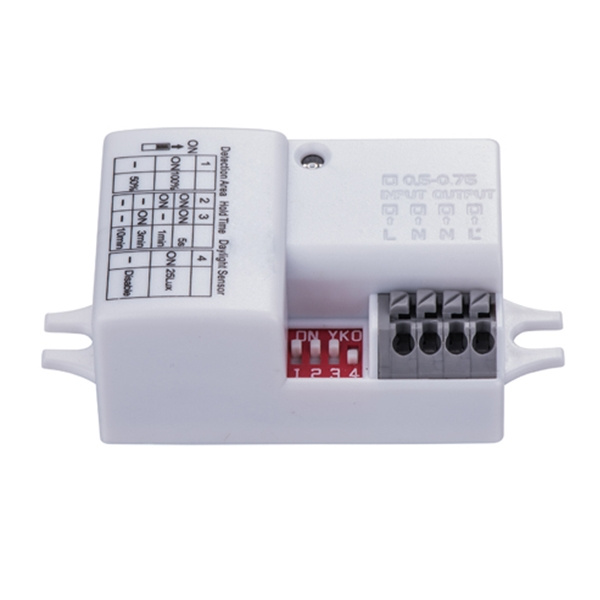

Picture:
