Mini Personal GPS Tracker Lk208 Car Tracking Device GPRS GSM Locating Alarm System Powerful Magnet

Prod Model:	LK208
Warranty:	5 Years
Weight:	144G
Network:	GSM/GPRS
Band:	850/900/1800/1900MHz
GPS Chip:	Ublox ( Mtk6260d GSM/GPRS Module)
Dimension:	105mm X 60mm X 20mm
GPS Accuracy:	5m
Standby:	60 Days
Humidity:	5%--95% Non-Condensing
Operation Temp.:	-20°c to +55°c
Type:	GPS Tracker
Use:	Automotive&Hand Held
Screen Size:	4.3"

Product Description

         Mini Personal GPS Tracker LK208 Car Tracking Device GPRS GSM Locating Alarm System                                              Powerful Magnet

1. SUMMARY
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and A-GPS
Dual positioning.

Device Description
Frequency (850/900/1800/1900 MHz)
Easy to installation
Unit size: 105× 60× 20 Weight: 0.5 kg
Portable and fashionable design
Internal GPS and GSM antenna
Track by Demand
Track by Time Interval automatically, SOS Assistance, two way calling
With 60 standy days(4400 mA )
Reply sms with google position link to cell phone
Geo-fence, Over speed alarm
Sleeping power-save mode, Reboot the device

Main functions
1. Initialization
2. Change the password
3. Authorization
4. Single Locating
5. Auto Track
6. Monitor (Voice Surveillance)
7. Geo-fence
8. Movement alert
9. Overspeed alert
10. SOS button
11. Low battery alert
12. Terminal (local) Time Setting
13. Restore factory settings
14. GPRS setting


Content	Specs.
Dim.	105mm x 60mm x 20mm
Weight	144g
Network	G S M/GPRS
Band	850/900/1800/1900Mhz
GPS chip	UBLOX ( MTK6260D GSM/GPRS module)
GPS sensitivity	-159dBm
GPS accuracy	5m
Time To First Fix	Cold status  45-120s Warm status  35s  Hot status  1s
Car charger	12_24V  input       5V   output
Wall charger	110 - 220V  input        5V   output
Battery	Chargeable changeable 3.7V 5000mAh Li-ion battery
Standby	60 days
Storage Temp.	-40°C  to +85°C
Operation Temp.	-20°C  to +55°C
Humidity	5%--95% non-condensing

User must send SMS via cell phone to set up IP, port and APN before starting GPRS
Platform Website: www.zg888gps.com
DEMO account number: 4109106067 password: 123456

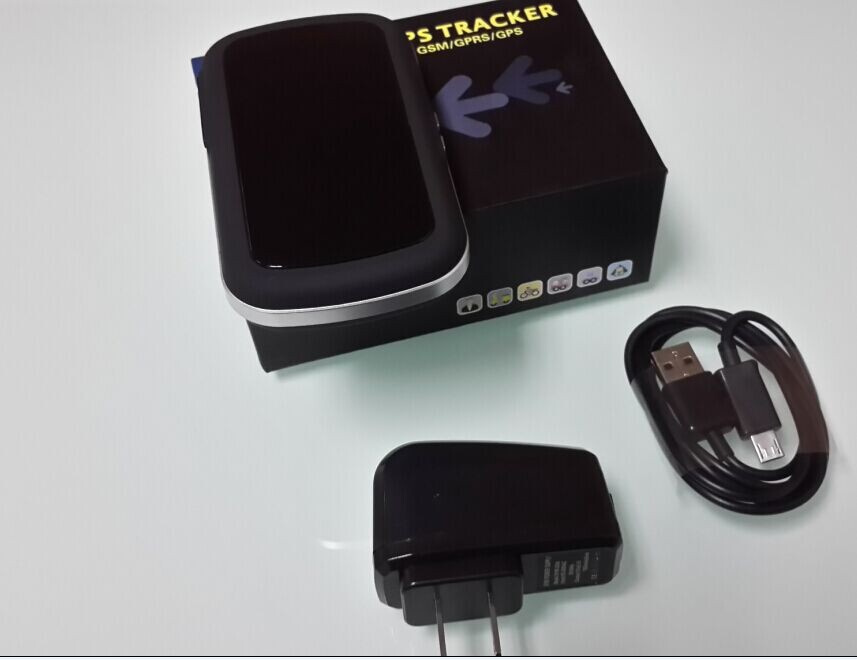

Standard accessories
Machine
Data line
Travel Charger
Instructions
