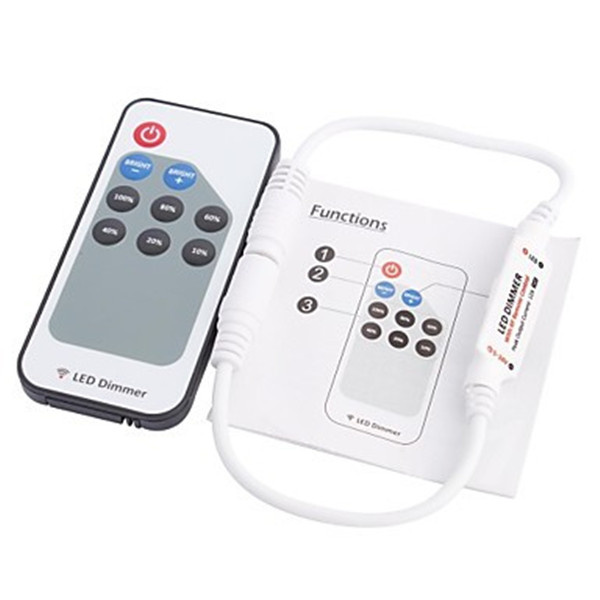

Mini PWM 433.92MHz DC12V~24V 12A LED Dimmer Switch Controller

Name: Mini PWM 433.92MHz DC12V~24V 12A LED Dimmer Switch Controller
Brand: all-electronics-online.com
SKU: 802143955
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 2.79-2.8/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RFMINI-06
Net Weight:	35g
Gross Weight:	40g
Working Temperature:	-20 - 60
Power Plug:	DC Female
Remote Frequency:	433.92MHz
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC5-24V

Product Description

Basic Info

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	louita	Model Number:	LYD-RFMINI-06
Type:	Remote Control	Max. Load Power:	288W	Voltage:	DC5V -24V
Working temperature:	-20-60ºC	Power supply:	DC5V -24V	Power:	144W-12V, 288W-24V
Current:	5A*1 CH	Power Plug:	DC Female	Feature:	64 Class Color Change,6 brightness adjust,Working with Remote
Remote control mode:	RF wireless	Remote frequency:	433.92MHz	Remote distance:	>15m at open area
Brightness Shortcut:	6 shortcuts

Product Description
This RF Mini 9 keys dimmer adopted the advanced computer control chip, 433 MHz Frequency technology. It can be installed & used easily, Ten levels brightness can be selected with your command. It also has memory function because we inside the memory chip on the PCB. With all these high functions, we still make it so tiny, and make it more economical and practical. It's mainly used to control all kinds of constant voltage led lights, such as: LED source, LED strips, led wall washer, wall Glass curtain lights, etc.

Technical Parameters:
Working temperature :-20-60ºC
Input voltage:DC5-24V
Output:1 circuit

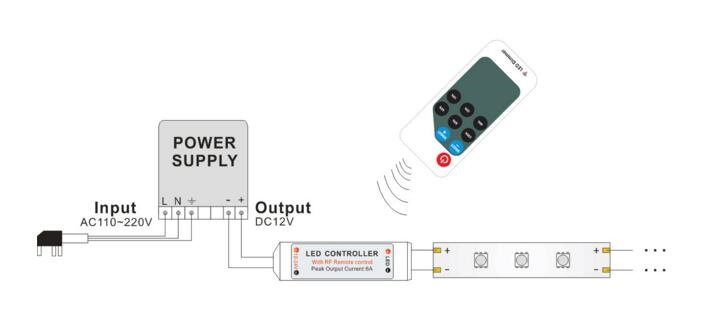

Connection mode:Common anode
controller size:L40.0×W12.0×H5mm
Remote size:L85×W40×H6mm
Net weight:35g
Gross weight:40g
Static power consumption:<0.5W
Output current:<6A
Output power: 5V:<30W, 12V:<72W24v:<144w

Application:
