Mini RGB LED Remote Controller

Name: Mini RGB LED Remote Controller
Brand: all-electronics-online.com
SKU: 795340895
Availability: InStock
Rating: 4.7 (95 reviews)

Price:	US $ 2.7-2.8/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-miniRGB
Current:	3*2A
Max. Load Power:	5V/30W;24V/144W
Channel:	3channel
Working Temperature:	-20-50
Output Power:	5V:<30W, 12V:<72W, 24V:<144W
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery

Product Description

Basic Info

Application: Household Appliances, LED Products, Industrial Machinery
Signal Transmission: RF Remote Control
Type: Button
Certification: RoHS, CE
Universal: Universal
Transmission Distance: <50m
Voltage: 12V
Material: Plastic
Battery Type: Button Battery
Maxium Power: 288W
Color: White
Connection Mode: Common Anode
Output Control: 3 Channels
Power Supply: DC
Max. Output Current: 4A Each Channel
Control: Manual Switch
Occasion: Square/Aquaria/Christmas/Decoration etc
Trademark: louita
Specification: CE, RoHS
Origin: China

Place of Origin:	Guangdong, China (Mainland)	Brand Name:	louita	Model Number:	LYD-MINIRGB
Type:	Remote Control	Max. Load Power:	5v/30w;24v/144w	Voltage:	DC5V-DC24V, DC5V-DC24V
Current:	3*2A	Channel:	3Channel	Output power:	5V:<30W, 12V:<72W, 24V:<144W
Certificates:	CE,RoHS	Working temperature:	-20-50	Warranty:	2 Years
Name:	rf LED controller	Size:	1.6(L)0.5(W)0.2(H) inch	Application:	rgb led strip lights

Overview :

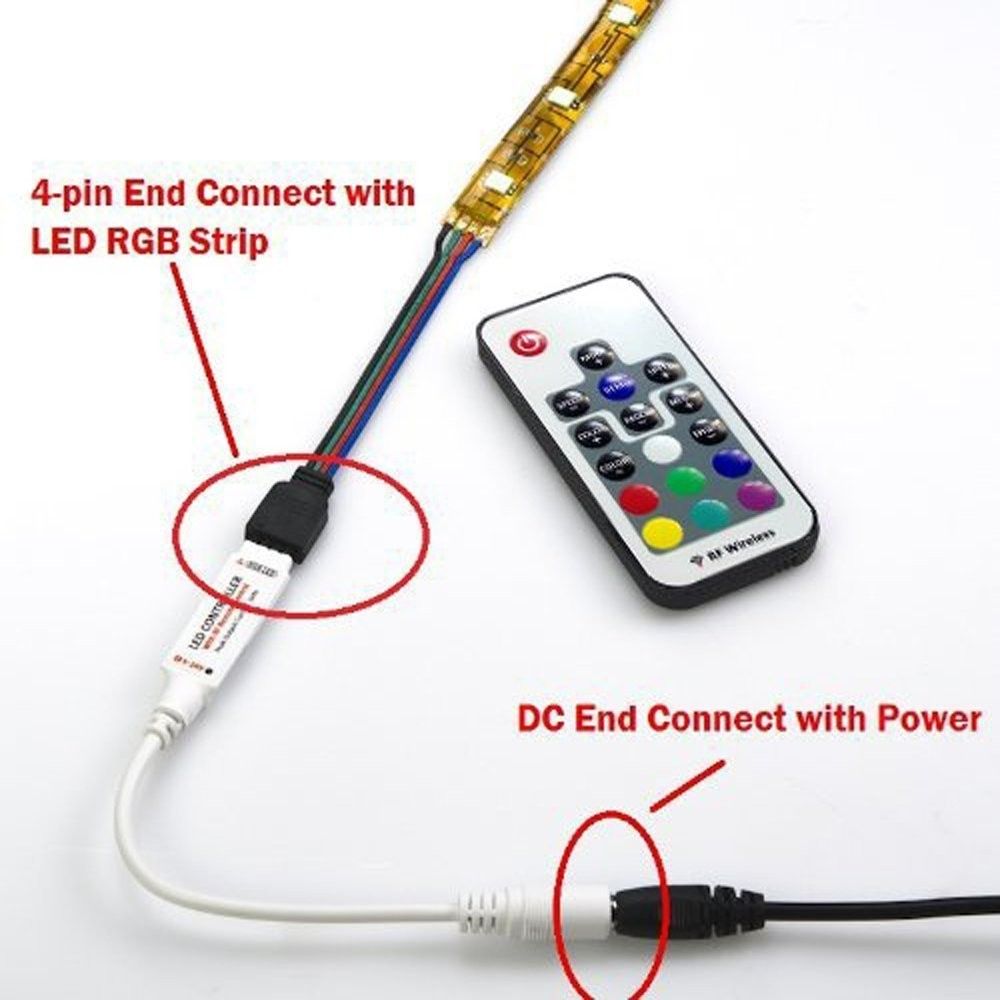

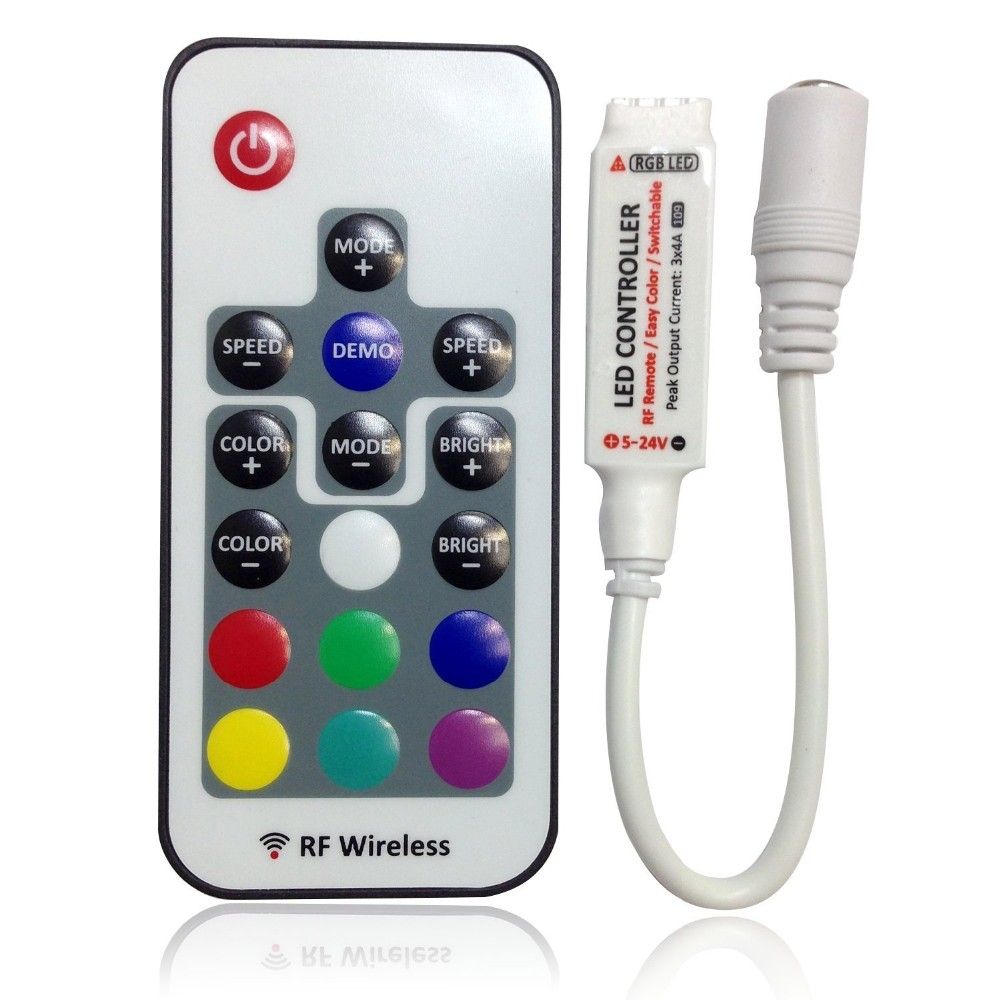

This product is the accessory product for the LED Strip light RGB controller, used to control a variety of LED lighting as the light source brightness,. With manual adjustment knob to adjust the lighting brightness, wiring convenient, simple and intuitive.
Specifications:
1.Voltage:DC5-24V
2.Max output:3*4A
3.Power Dissipation:<0.5W
4.Work Temperature:-20~+60degree
5.Power output: 5V-60W,12V-144 W,24V-288W
6.Dynamic mode: 22 modes
7.Static color: 20 colors
8.PWM grade: 256 levels
9.Brightness grade: 5 levels
10.Speed grade: 10 levels
11.Demo mode: Yes
12.Direc color select: Yes
13.Output color switchable: Yes, 6 options
14.Weight:30g
15.RGB Controller with Power Supply Socket.
16.Supper Mini, safe,easy to operate.
17.Can be used for SDM 3528 Led strip light,SMD 5050 Led strip light,SMD 5630 Led strip light
18.no products box, just PPS package.

Application:
1. The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
2. The 4wires coming out of the controller can't be incorrectly interconnected or short circuit could occur
3. Connect the wires of the controller and LED fittings as per the instruction
4. Don't peel off the label on the controller in case any indication information will be missed
5. The standard warranty is one yeas Our company won't be responsible for any damage of the Controller due to any wrong operation.
