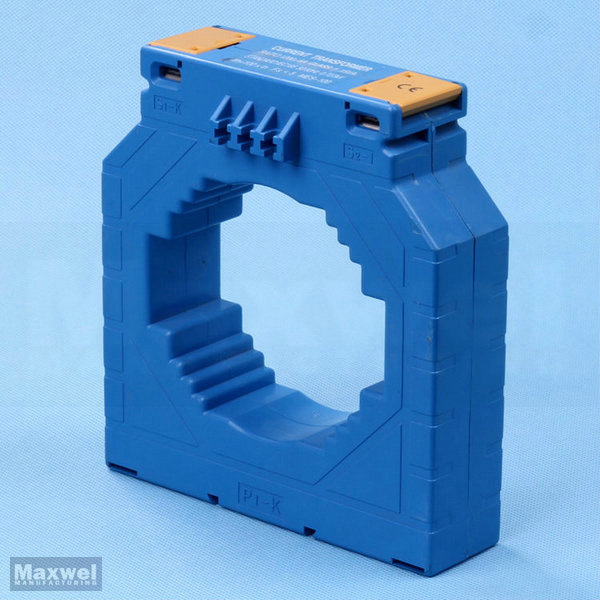

Mini Single Phase Current Transformer (MES)

Prod Model:	MES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue
Primary Current:	5A-3000A
Class:	0.5/1.0
Frequency:	50/60Hz

Product Description

MES current transformers, railtype current transformer

This series of CT can be applied to test, control. Display and record the running of the electrical equipment, and to protect the equipment against the damage. In the AC circuit with the raled voltage value below 720V and the frequency of 50-60Hz. The product can be also applied to form a complete of mine transformer.
The products comply with VDE 0414, BS7626 and IEC 44-1 standard.

Primary current:	5A-3000A
Secondary current:	5A, 1A
Standary approval:	VDE0414, BS7626, CT IEC 44-1 standard
Maximum voltage:	0.72/3kv
Frequency:	50-60Hz
Rated load:	2.5VA, 5VA, 10VA, 15VA
Class:	0.5, 1.0
Short-time thermal current:	1th=60X1h
Rated security coefficient:	FS<5



Type	Rated    current   (A)	Rated power(VA)
		Class: 0.5	Class: 1
MES-145/100	1000/5	15	30
	1200/5	15	30
	1500/5	15	30
	1600/5	15	30
	2000/5	15	30
	2500/5	15	30
	3000/5	15	30

MES-62-20B	5/5	2.5	5
	10/5	2.5	5
	15/5	2.5	5
	20/5	2.5	5
	25/5	2.5	5
	30/5	2.5	5
	40/5	2.5	5
	50/5	2.5	5
	60/5	2.5	5
	75/5	2.5	5
	100/5	2.5	5
	150/5	2.5	5

Maxwel Manufacturing Co., Ltd. efficiently produces a wide range of tapes and electrical products.Our products meet various international standards for easier market entry.
A large range for your selection. You can come to Maxwel for self-amalgamating, semi-conducting, butyl,mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers,residual current circuit breakers, residual current circuit breakers with over-current protection,switch disconnections, distribution boxes and more.
Product Details:


About Warranty:

At least  A year!

Delivery Time:

Whin 15 Days After you place an Order!

A: Standard export package and we can make special designed for you if need.
