Mini Size Steady Single Output 5V 15W Ms-15-5 Power Supply, Ms-15 5V 12V 24V 48V

Name: Mini Size Steady Single Output 5V 15W Ms-15-5 Power Supply, Ms-15 5V 12V 24V 48V
Brand: all-electronics-online.com
SKU: 839708155
Availability: InStock
Rating: 5 (25 reviews)

Price:	US $ 5-6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-15
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

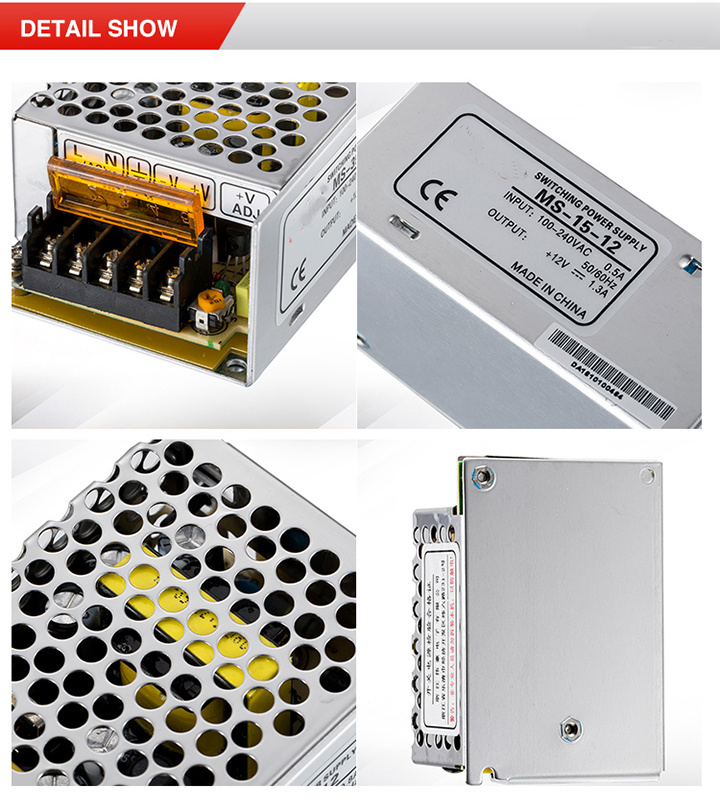

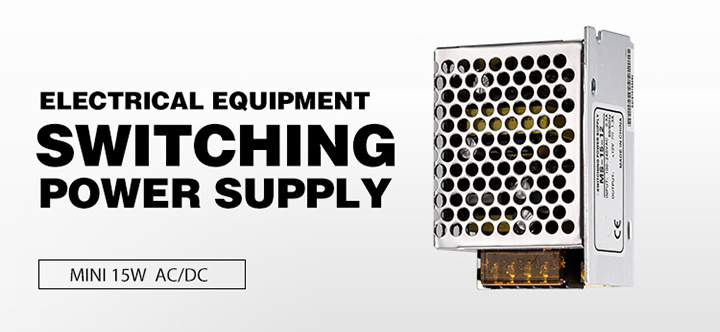

15W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

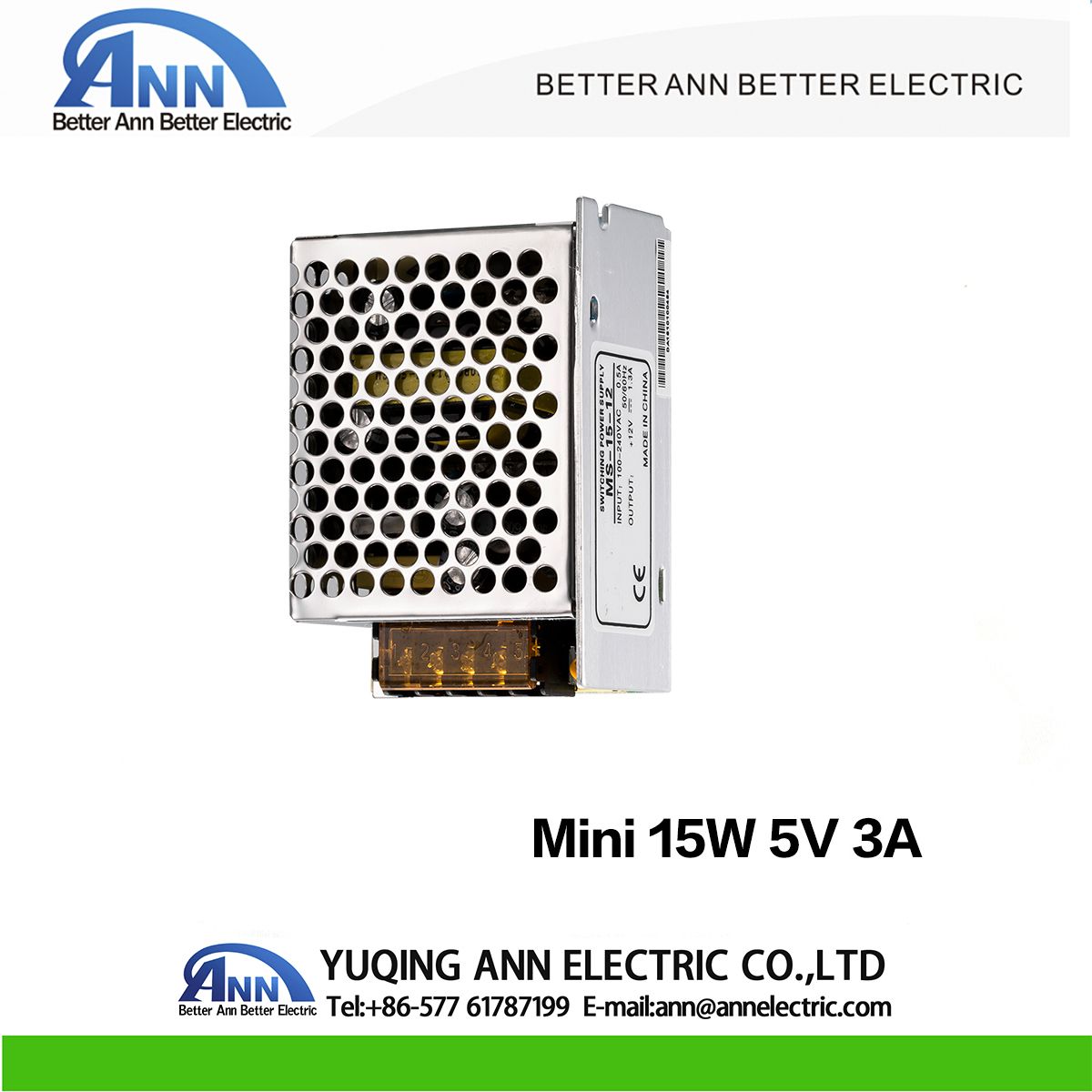

Mini size steady single output 5v 15w ms-15-5 power supply

Model	MS-15-5	MS-15-12	MS-15-15	MS-15-24
DC output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	3A	1.3A	1A	0.7A
Output current range	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise(Note:3)	70mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	15W	15W	15W	15W
Efficiency	70%	76%	76%	72%
Adjustable range for DC voltage	+10.-5%	±10%	±10%	±10%
Input current	0.5A/115V 0.25A/230V
AC inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°c(-10~+50°c)
Setup, rise , hold up time	200ms, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	85×58×38mm
Weight	0.15Kgs
Safety standards	Meet EN60950
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
