Mini Small Laser Engraving Machine CO2 Laser Engraver
| Price: |
US $ 3000-6000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
FMJ6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Advertising |
| Resolution: |
0.025mm |
| Carving Command: |
G Mode*, U00*.Mmg*.Plt |
| Resetting Accuracy: |
0.025mm |
| Max. Carving Speed: |
8m/Min |
Product Description

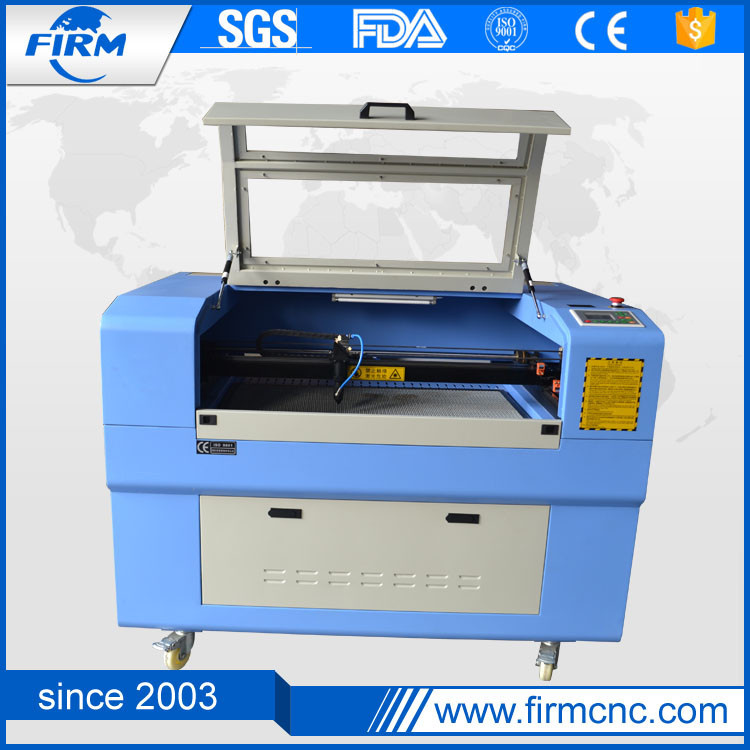

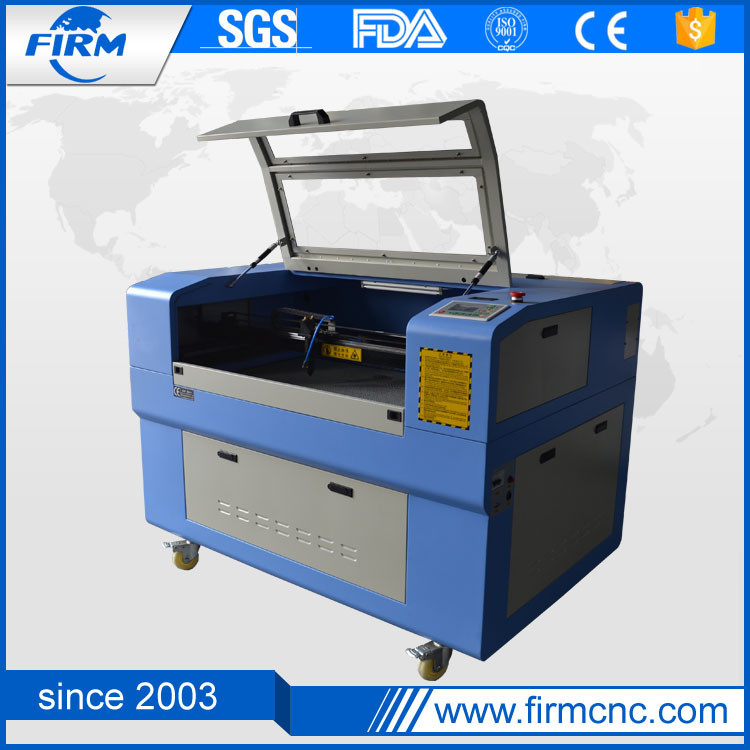

Mini small Laser Engraving Machine Co2 Laser engraver
Features

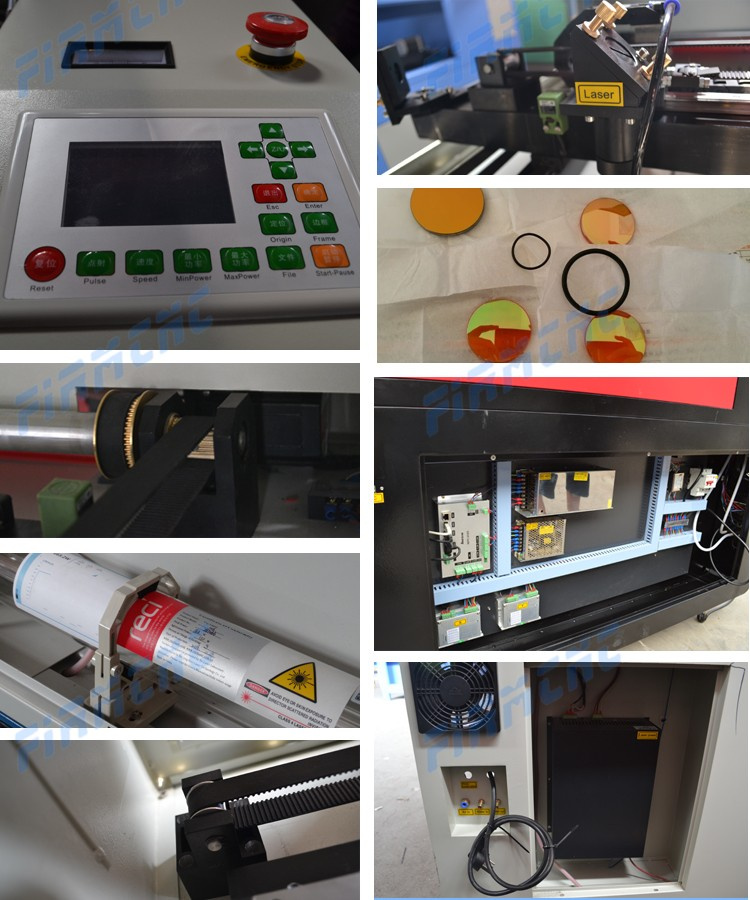

1. The imported linear guide way of the laser cutting machine ensures the high precision and the long service.
2. The stepper motor of the laser cutting machine guarantees cutting and engraving smooth.
3. The structure of the laser cutting machine is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.
Technical specification| del | FMJ series |
Engraving Area (mm)W*L |
600* 900 |
1300*900 |
1400*1000 |
1300*2500 |
Laser tube power |
40W 60W 80W 100W 120W 130W 150W |
Laser Type |
CO2 sealed laser tube |
Engraving Speed |
0-64000mm/min |
Cutting Speed |
0-36000mm/min |
Resetting positioning
accuracy |
≤±0.01mm |
Laser Output |
1-100% software setting |
Cooling mode |
Circulating-water-cooling and protection system |
Machine control and drive |
Speedy DSP controlling, stepper motor |
Cutting Platform |
knife-strip platform |
Min. shaping character |
Character2.0mm×2.0mm,English1.0mm×1.0mm |
Power Supply |
AC220V 50HZ |
Operating system |
DSP off-line control system |
Dictate format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
Operating Temperature |
5°C-40°C |
Operating Humidity |
5-95%(Free of Condensed Water) |
Compatible Software |
CorelDraw ,AutoCAD transmit directly |
Optional Spare Parts |
Rotary system, Industrial Chiller, Infrared Locating System,
Laser Tube, Up-down clump |
Recommended Spare Parts |
Laser Tube |
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser machine appliances.

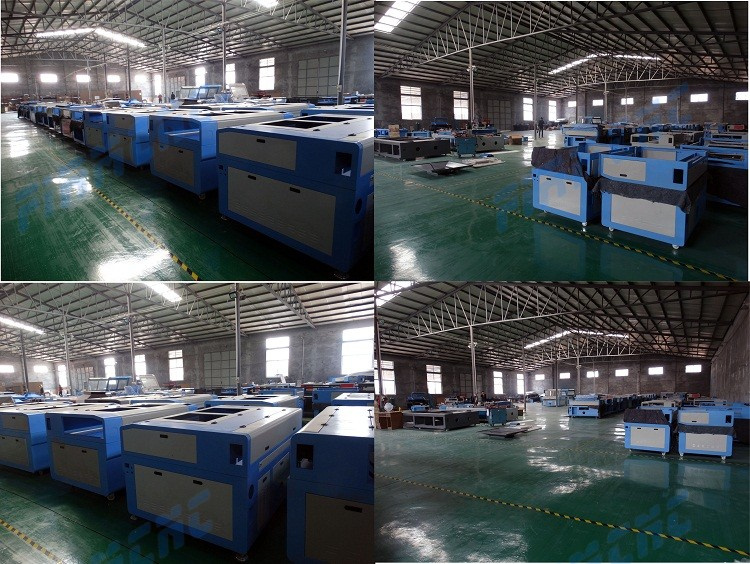

2016 Version Shanghai International CNC Exhibition photos,some customers paid the deposit for us right away
when we finished the test on the sc

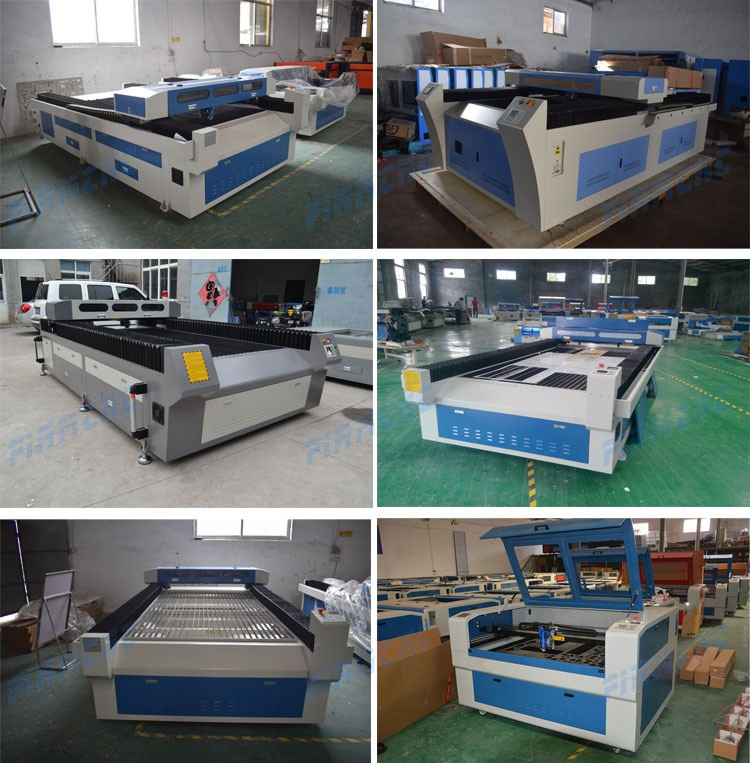

Other related laser machines for your reference
# Metal and nonmetal lase cutting machine
# Fabric laser cutting machine
# 3d mini laser engraving machine
After sale serices
1. 12 Months for Machine
2. 6 Months for laser tube
3. 6 Months for equipments outside, such as water chillrt, fan, air pump, etc.
4. Detailed manual and video to guide the user how to use the machine and maintenance, also supply the
specs settings for the speed and power to engrave or cut on various material.
5. Lifely and fast technical guide and solution within 24 hours by email and web camera.
6. The machine will be tested before delivery
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
# You just need to tell me your working area, such as lenght, width, then I can recommend suitable model for you.
metal laser cutting machine is mainly used to pocessing metal, stainless steel materials, standard co2 laser machine is mainly processing nonmetal materials.
such as wood, plywood, acrylic, board, MDF, plastic etc
2.Do you have operation manual and working video?
# Yes, we have. after confirm which machine do you need, then working video are shown for you.
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/, http://firmcnc.en.made-in-china.com
www.firmcnc.com
Cell phone: +86-13954117091
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
