Wood Acrylic Leather CNC Laser Engraving Cutting Machine

Name: Wood Acrylic Leather CNC Laser Engraving Cutting Machine
Brand: all-electronics-online.com
SKU: 688085382
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	US $ 3500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FM9060
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	Laser Engraving Machine
Control:	CNC
Current:	AC
Laser Type:	CO2
Usage:	Advertising
Size:	6090
Laser Tube Power:	60W 80W 100W
Controller:	DSP Controller
Drive Motor:	Stepper
Laser Tube:	CO2

Product Description

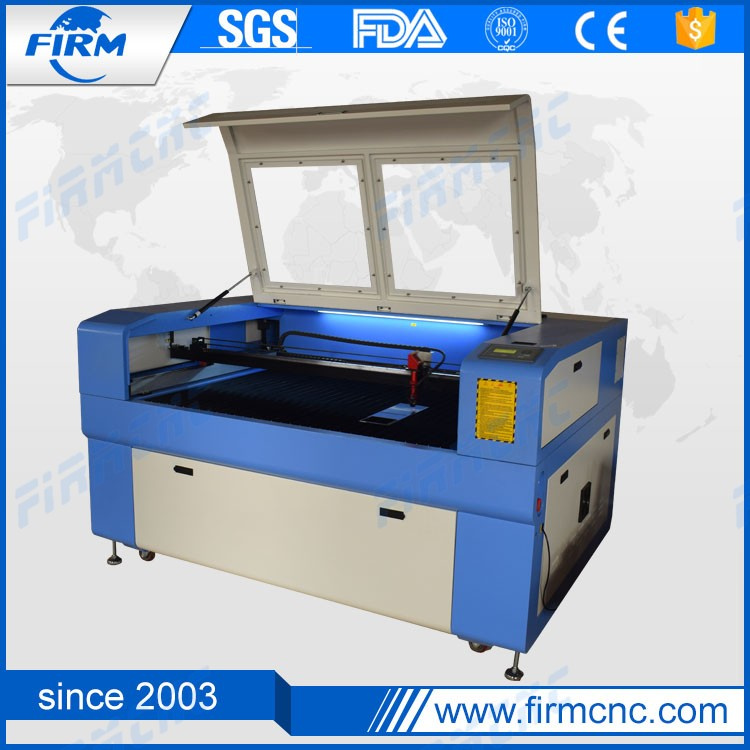

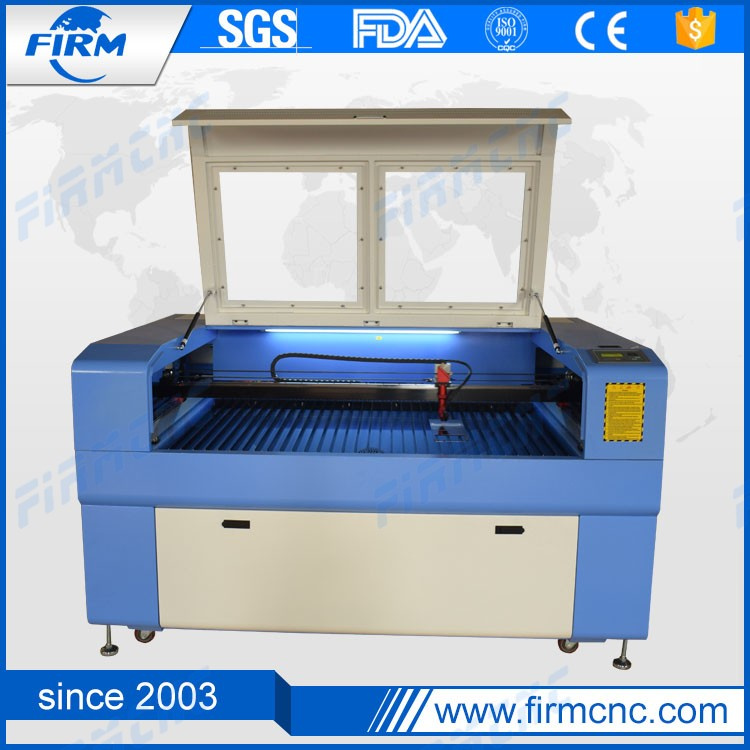

Wood acrylic leather CNC Laser Engraving Cutting Machine

This machine can cut and engrave on the leather, can help you to make the leather shoes and wallet, key holders, belt...The thickeness of the leather it can cut and engrave is: 2-3mm, if the leather is the Natural cowhide, you could choose the laser tube power: 100-120w, if the leather is not thick then just choose 60w laser tube power can fit for your work. You know the laser tube power decide the materials thickness you cut and engrave.

If you using this machine to cut and engrave the leather, please choose the honey nest table. It is convenience for you to put the leather on the table.
This machine is one of a main products of Firm company, it can also cut and engrave on the fiber, paper, metal, acrylic, double colour board, bamboo, glass, metal and the craft industry.
Would be more clear if you could supply more information regarding the machine colour, machine size, what will you do using this machine...
Forget to tell you, we can according to your requirments to produce the machine.
Agent price and end user price is different, so please tell me you are the ender user or agent, when you send us the letter.
So don't hesitate contact us!

Model	FM-series
Engraving Area (mm)W*L	900*600	1300*900	1400*1000	1300*2500
Laser tube power	60W 80W 100W 120W 130W 150W
Laser Type	CO2 sealed laser tube
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Laser Output	1-100%software setting
Cooling mode	Circulating-water-cooling and protection system
Machine control and drive	Speedy DSP controlling, stepper motor
Cutting Platform	knife-strip platform
Min. shaping character	Character2.0mm×2.0mm,English1.0mm×1.0mm
Power Supply	AC220V 50HZ
Operating system	DSP off-line control system
Dictate format	.plt,.dst,.dxf,.bmp,.dwg,.al,*las etc.
Operating Temperature	5°C-40°C
Operating Humidity	5-95%(Free of Condensed Water)
Compatible Software	CorelDraw ,AutoCAD transmit directly
Optional Spare Parts	Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump
Recommended Spare Parts	Laser Tube

JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website: http://firmcnc.en.alibaba.com/,  http://firmcnc.en.made-in-china.com
www.firmcnc.com

Cell phone: +86-13954117091

Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China

Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.

The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.

Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
