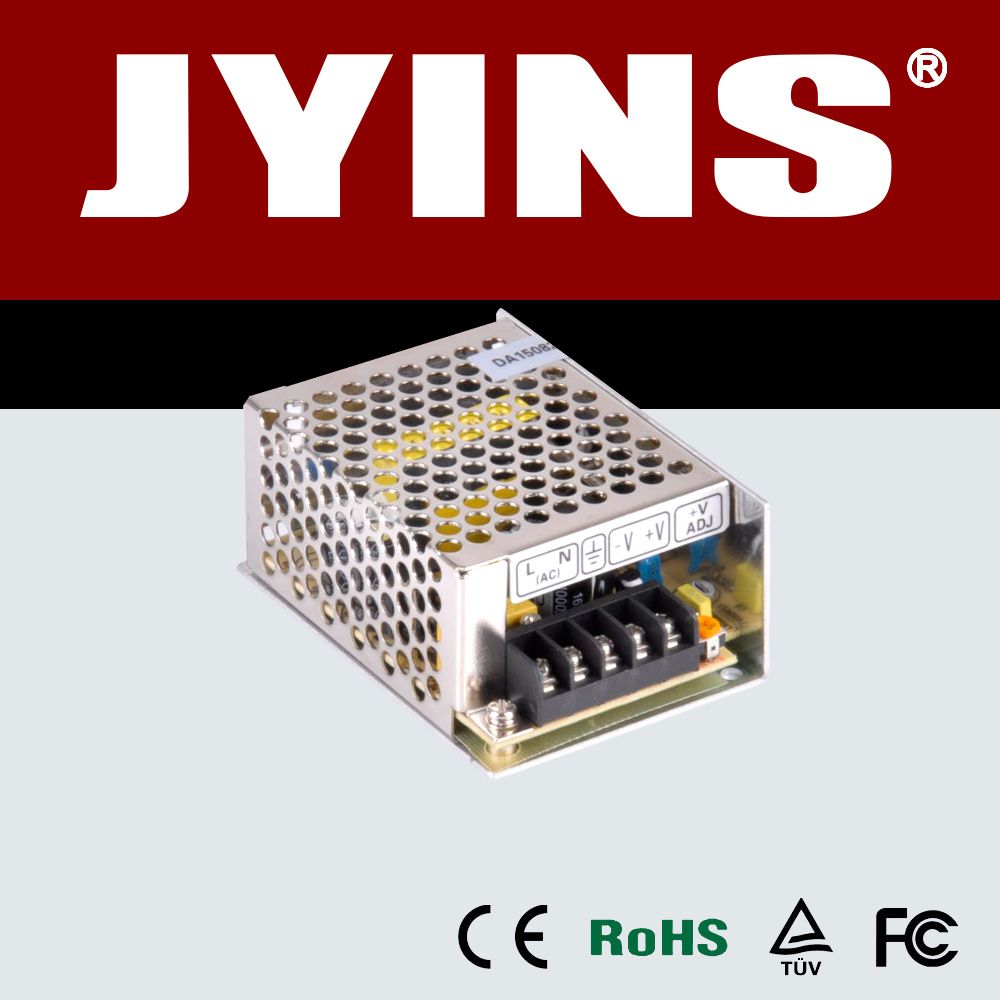

Mini Switch Mode Power Supply (S-10) High Quality
| Price: |
US $ 3.85-5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
S-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
18 Months |
| OEM, ODM: |
Accepted |
| Input Volt: |
5V/12V/24V |
| Efficiency: |
88% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Jyins |
Product Description
10W Single Output Mini Switching Power Supply MS-10 series
Features:
Universal AC input / Full range
Protections: Short circuit/Over load
100% full load burn-in test
Cooling by free air convection
Low cost
High reliability
78*49*21mm (L*W*H)
| Model /Specification | S-10-5 | S-10-12 | S-10-24 |
| DC output voltage | 5V | 12V | 24V |
| Output voltage error (Note2) | ± 2% | ± 1% | ± 1% |
| Rated output current | 2A | 0.8A | 0.4A |
| Output current rage | 0-2A | 0-0.8A | 0-0.4A |
| Wave and noise(Note3) | 50mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability(Note4) | ± 0.5% | ± 0.5% | ± 0.5% |
| Load stability(Note5) | ± 1% | ± 0.5% | ± 0.5% |
| DC output power | 10W | 10W | 10W |
| Efficiency | 65% | 68% | 72% |
| Adjustable range for DC voltage | ± 10% | ± 10% | ± 10% |
| AC input voltage range | 85~264VAC 47~63Hz |
| Input current | 0.5A/115V 0.25A/230V |
| AC impulse current | Cold-start current 15A/115V 30A/230V |
| Leakage current | < 0.5mA/240VAC |
| Overload protection | 105%~150%Type: current limiting ; Reset: auto recovery |
| Over-voltage protection | … … |
| High-temperature protection | … … |
| Temperature coefficient | ± 0.02% degrees Celsius (0~50 degrees Celsius) |
| Setup rise hold up time | 200ms, 100ms, 30ms |
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, Each axes |
| Withstand voltage | Input and output interval: 1.5KVAC, Input and enclosure: 1.5KVAC, Output and enclosure: 0.5KVAC |
| Isolation resistance | Input and output interval, Input and enclosure, Output and enclosure: 0500VAC/100M Ohms |
| Working temperature and humidity | -10 degrees Celsius~+50 degrees Celsius, 20%~90%RH |
| Store temperature and humidity | -20 degrees Celsius~+85 degrees Celsius, 10%~95RH |
| Overall dimension | 69 x 75 x 28mm |
| Weight | 0.12Kgs |
| Safety standards | Meet UL1012 |
| EMC standards | … … |
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25 degrees Celsius 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: adopting“ A12” double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
6. C2, 3, 11must be knocked down. |
