Mini Type Digital Liquid Pressure Transmitter for Refrigerator
| Price: |
US $ 20-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TPZ400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
0~1......4590kpa |
| Overpressure: |
1.5 F.S |
| Accuracy: |
0.5%F.S |
| Stability: |
0.1%F.S/Year, Max. 0.2%F.S/Year |
| Working Temp. (Degrees Celsius): |
-40~85 |
| Temp. Compensation (Degrees Celsius): |
-10~70 |
| Transmission Type: |
2-Wire or 3-Wire, as Required |
| Output Signal: |
4-20mA DC, 0~5V DC, 1-5V DC, 0~10V DC |
| Power Supply: |
10~30V DC |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
Product Description
Tosilon Mini Type Digital Liquid Pressure Transmitter for Refrigerator (CE, Ex Approved)Design and Manufacturing According to CE StandardIntroduction Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features· Full stainless steel construction;
· Alarm Available (upper and lower value set);
· Pressure Buffer Connector;
· Electric connection optional;
· Pressure connection optional;
· Ceramic core and cell imported from German;

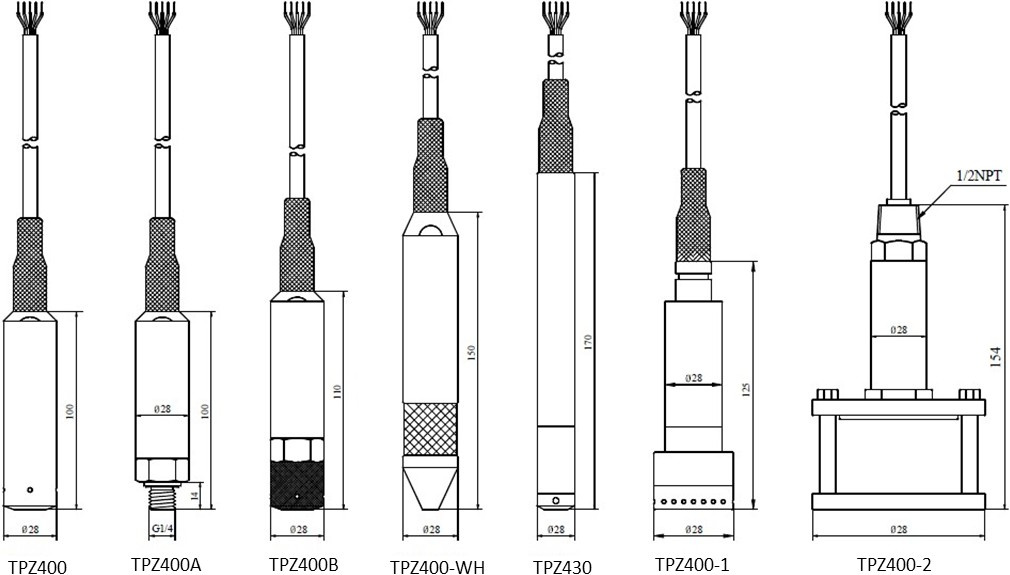

· CE approvedOutline Structure
Performance Parameters (For details, please contact Tosilon)Pressure Range Overpressure
0~1......4590kPa 1.5 F.S
Accuracy Stability
±0.5%F.S 0.1%F.S/year, Max. 0.2%F.S/year
Working Temp. Temp. Compensation
-40 oC~85 oC -10 oC~70 oC Transmission Type Output
2-wire or 3-wire, as required 4-20mA DC, 0~5V DC, 1-5V DC, 0~10V DC
Power Supply Pressure Type
10~30V DC Gauge, Sealed Gauge, Absolute For more information, please contact Tosilon
