Mini Vacuum Circuit Breaker Dz47-63 Lighting Loop Protection

Name: Mini Vacuum Circuit Breaker Dz47-63 Lighting Loop Protection
Brand: all-electronics-online.com
SKU: 685983421
Availability: InStock
Rating: 4.5 (147 reviews)

Price:	US $ 0.48-0.5/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

Advantages:
1.Our Company Has Great Reputation In The Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Description
Electrical Features
Rated current In: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A

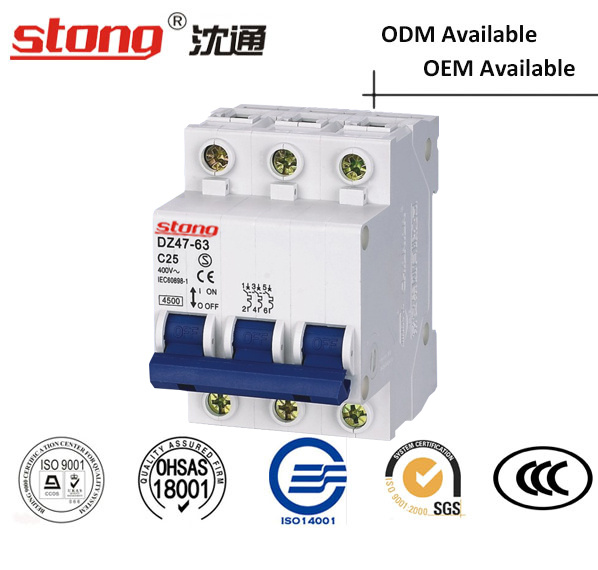

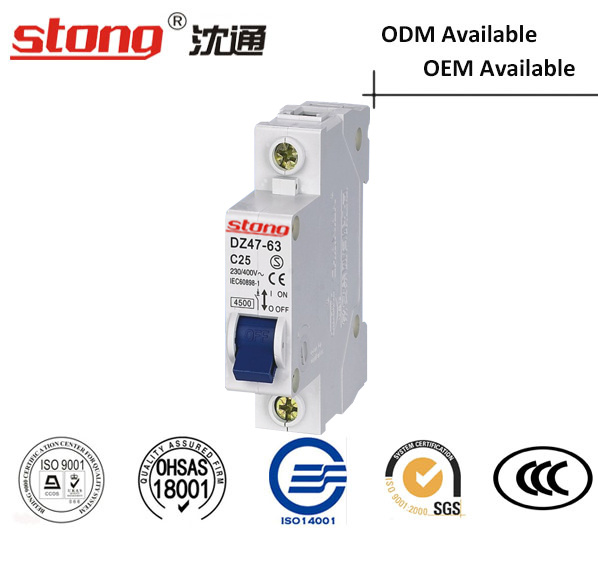

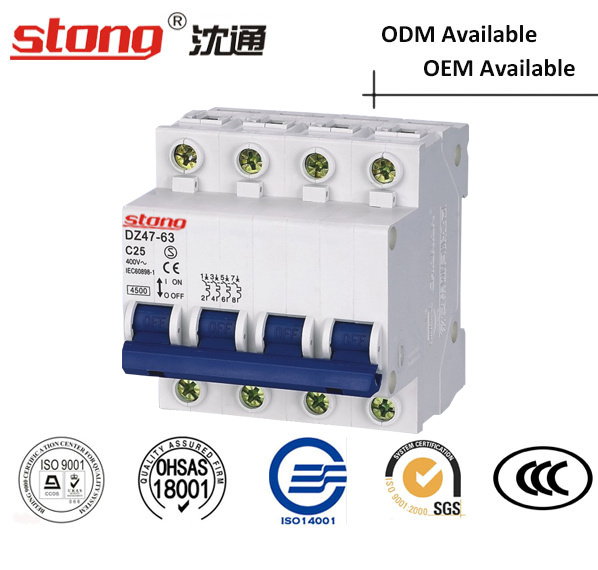

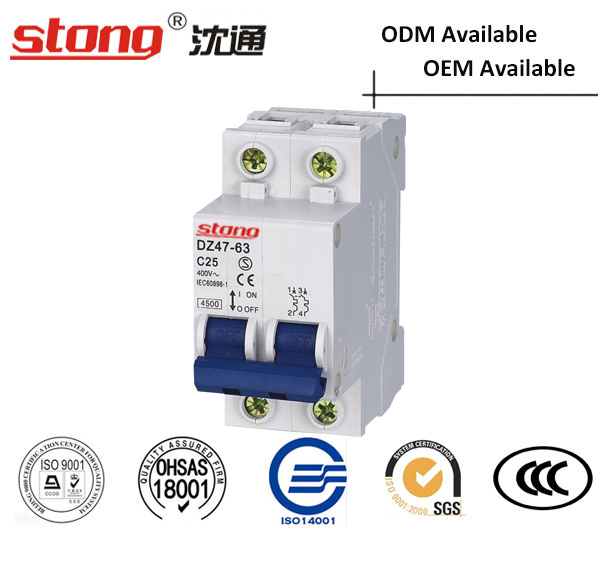

Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 4500A/3000A
Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
Pollution degree: 2
Thermo-magnetic release characteristic: B, C, D
Mechanical Features
Electrical life: 4, 000
Mechanical life: 10, 000
Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 25mm2
Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.0 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
