Yueqing Shuntong Imp. & Exp. Co., Ltd. >> Miniature Circuit Breaker, 1p 1, 2, 3, 4A MCB, 4.5ka, 6ka (DZ47-63)

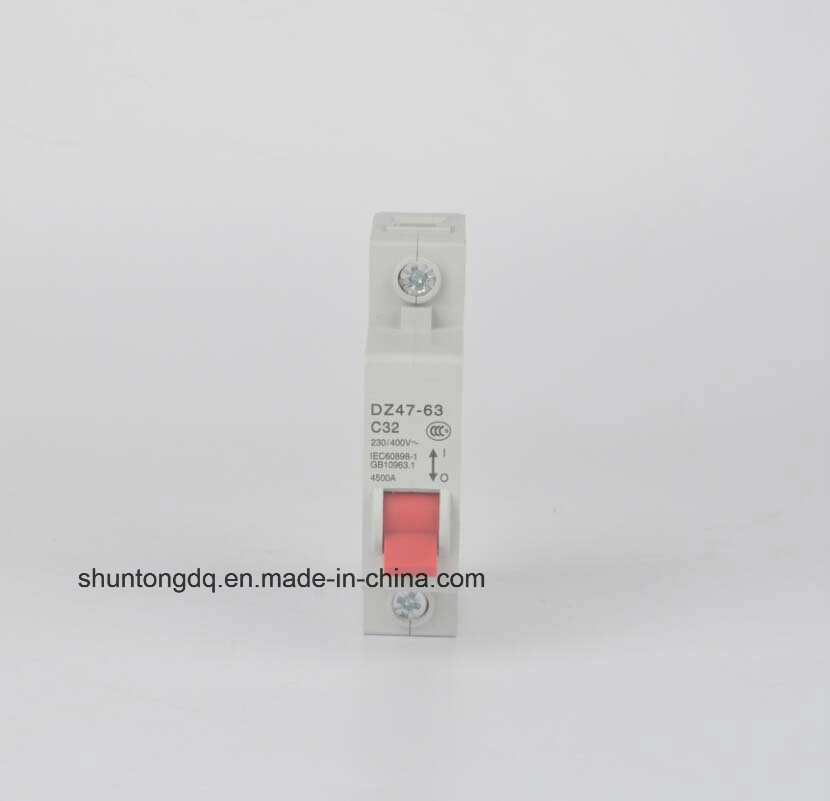

Miniature Circuit Breaker, 1p 1, 2, 3, 4A MCB, 4.5ka, 6ka (DZ47-63)

Miniature Circuit Breaker, 1p 1, 2, 3, 4A MCB, 4.5ka, 6ka (DZ47-63)
Price: US $ 0.4-1.2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DZ47-63
Working Voltage: 230V/400V
Rated Current: 1,2,3,4,6,10,16, 20,25,32,40,50,63A
Rated Breaking Capasity: 4.5ka,6ka
Characteristic Curve: B C D
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Insert
Structure: MCB
Poles Number: 1
Certification: CCC

Product Description

DZ47 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and Its installation uses with guide, Its case and items are adopted with high fire-resistant and shockproof plastics. The product, with long life, Is mainly used in AC 50/60Hz single-pole 230V or two, three, four-pole 400V circuit for overload and short-circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit in normal case. The product complies with EN/IEC60898.

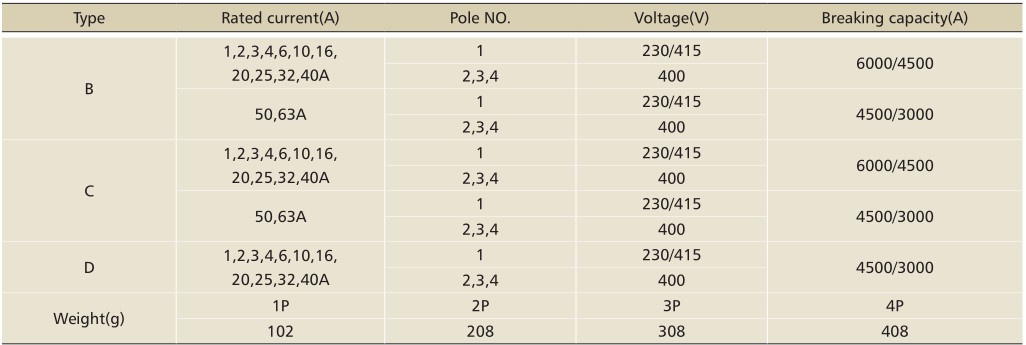

Specification:

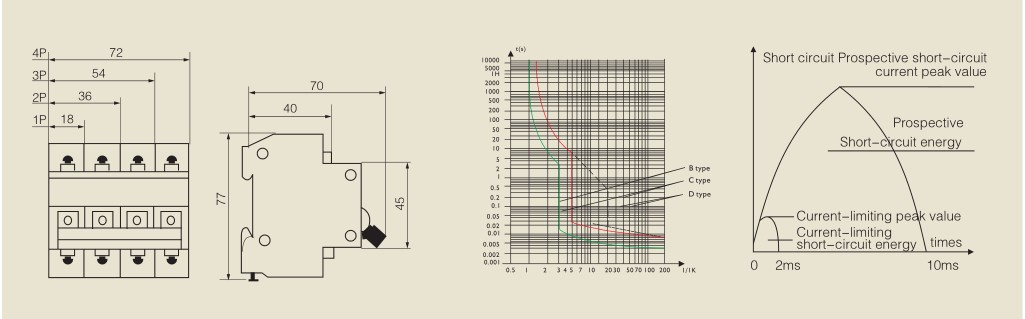

Dimensions and characteristic curve:
