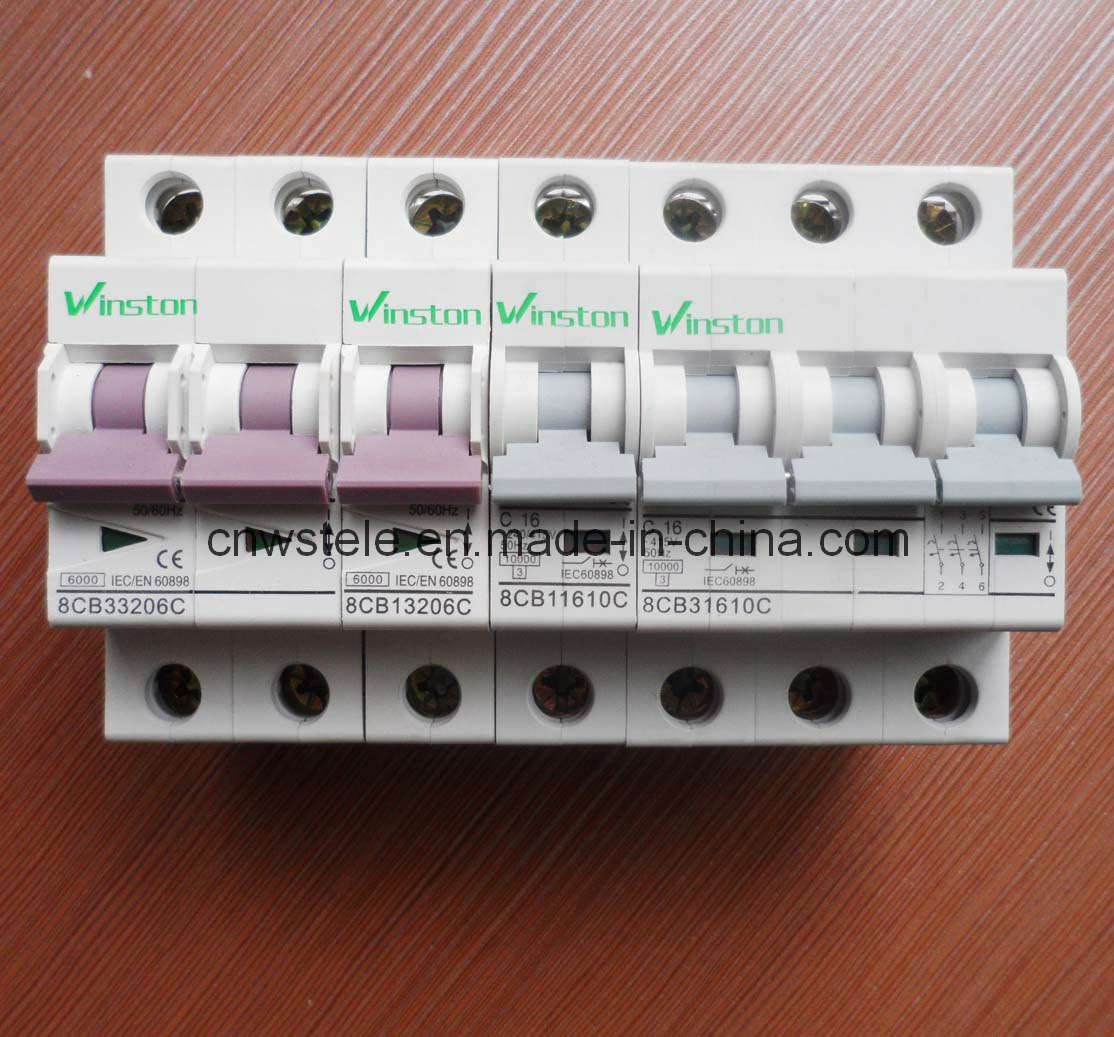

Miniature Circuit Breaker (L7 Moller type)

Miniature Circuit Breaker (L7 Moller type)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: L7,L7 old type,L7 new type
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Circuit Breaker
Function: Overcurrent Protection
Arc-extinguishing Medium: Air
Breaking Capacity: Low Voltage Circuit Breakers
Certification: CE
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Structure: Miniature Circuit Breaker
Installation: DIN Rail

Product Description

The product of L7 miniature circuit breaker belong to the advanced level of the nineties in the world instead of the older generation of L7. They have protective function as shortage as overload, and are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade (up to IP20), high break capacity, reliable sensitive action, convenient, multiple assembling. Long life etc, they are mainly adapted to the circuit of AC50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.
Electrical specification
Conforms to standard of electrical: EN60898(IEC898) GB10963-99
Rated current(Ue): 230V/440V; 50/60HZ
Rated breaking capacity: 10KA IEC898(0.5~63A)
15KA IEC947-2(0.5~63A)
Short circuit breaking capacity of DC: Max. 48V(L7...., 10KA)single pole
Max. 250V(L7-DC, 6KA)single pole
Perfermance: C, D charactisistic curve
Max. fuse that can be connected to: 100AgL(10KA)
Selective grade: 3
Working ambient temperature: -5 TO+40
Enclosed protective class: P40(Under mounting)
Life: Electrical Mechnical Not less of 8000times switching operation
Not less of 20000 times switching operation

















The length of exposed plane: 45mm
Enclosure height: 80mm
Enclosure width: 17.5mm per pole(single pole)
35mm: 1P+N(two poles)
Mounting manner: Used for track of 35mm of IEC standard
Terminal manner: Two-function terminal can connect with busbar and conducting wire
Terminal block capacity: wire 1-25mm 2
Conducting wire 0.8-2mm
