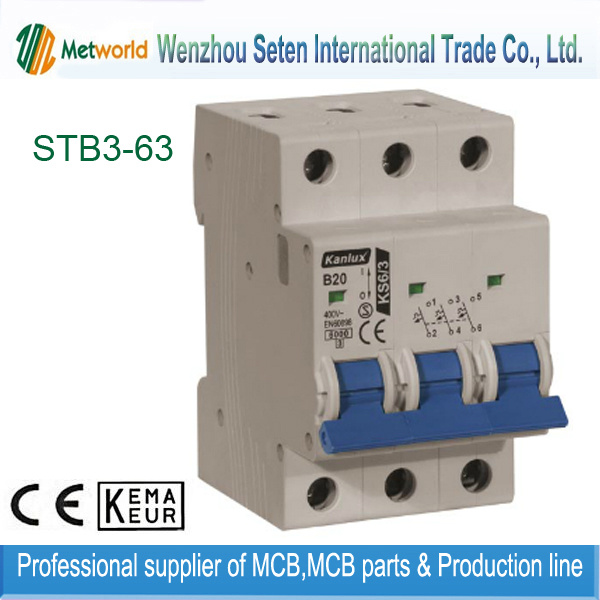

Miniature Circuit Breaker MCB (10KA)

Name: Miniature Circuit Breaker MCB (10KA)
Brand: all-electronics-online.com
SKU: 708224815
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 3/Piece
Trade Terms:	FOB,CIF
Min Order:	240/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STB3-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	Customized
No Of Pole:	1,2,3,4
Standards:	IEC
Brand:	Metworld
Width:	17.8mm Per Pole
Installations:	Mounting on 35mm DIN Rail
Type Of Trip:	Thermal/Magnetic Release
Curve:	B,C,D
Types:	Lug Type of Pin Type
Terminal Capacity:	Customized
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CB
Structure:	Conventional Circuit Breaker
Type:	Circuit Breaker
Function:	Overcurrent Protection

Product Description

STB3-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system.
The product novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic.
The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.
This product conform with GB10963, IEC60898.
