Miniature Circuit Breaker Mini Circuit Breaker MCB Kema

Name: Miniature Circuit Breaker Mini Circuit Breaker MCB Kema
Brand: all-electronics-online.com
SKU: 708224735
Availability: InStock
Rating: 4.9 (96 reviews)

Price:	US $ 0.85/Piece
Trade Terms:	FOB,CIF
Min Order:	240/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	10KA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width:	17.8mm Per Pole
Installations:	Mounting on 35mm Dinrail
Standards:	IEC/En60898
Characteristic:	B,C,D
Degree:	20
Type Of Terminal:	Lug or Pin
Ambient Temperature:	-5 to 40 Degree
Rated Voltage:	230/400V
Category:	Alb Series MCB
Protection:	Against Overload and Short Circuit
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	1
Certification:	CB
Structure:	Conventional Circuit Breaker
Type:	Circuit Breaker
Function:	Overcurrent Protection

Product Description

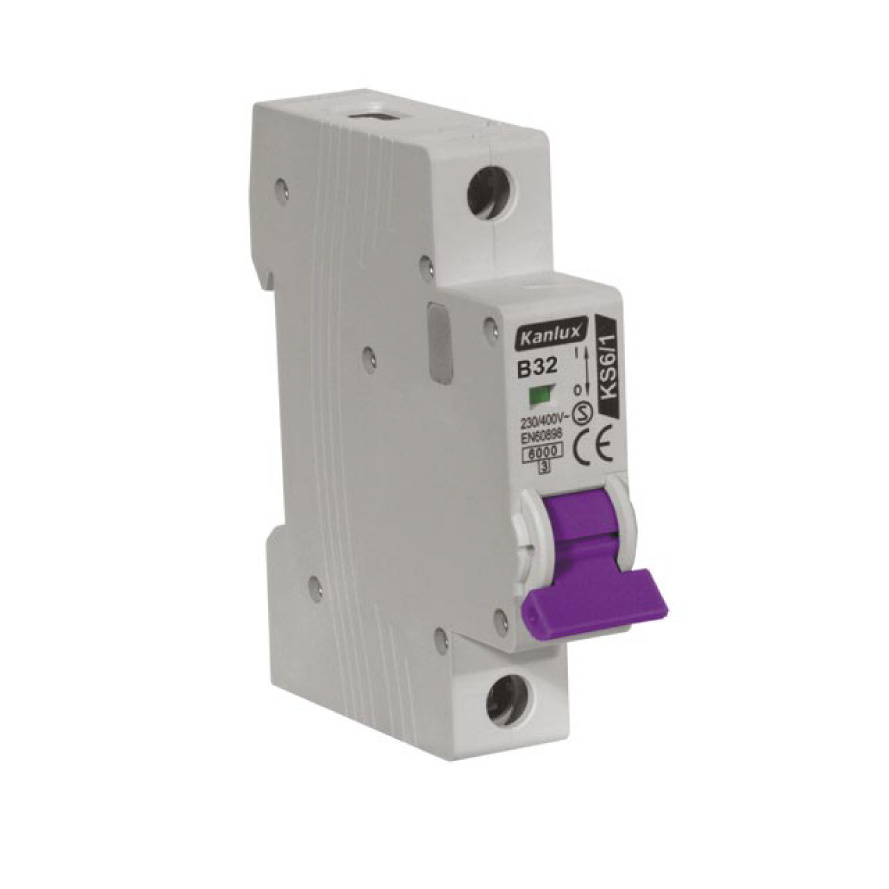

10KA Mini Circuit Breaker

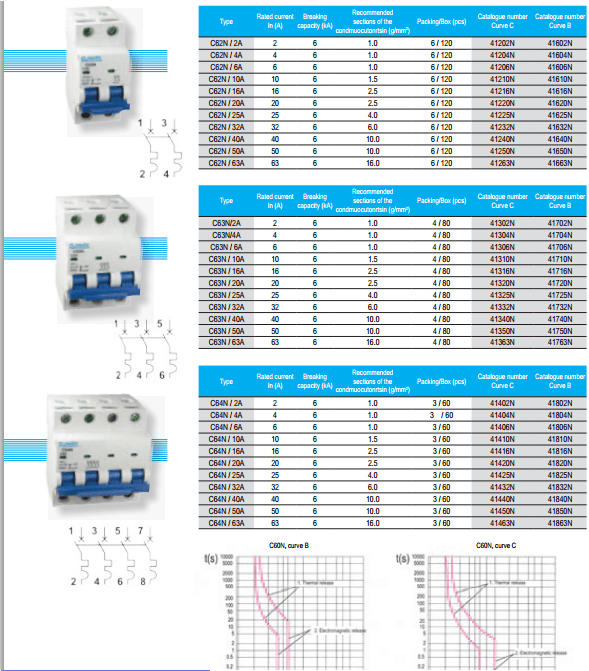

SPECIFICATIONS	Tripping Curve	Rated current (A)	Pole	Voltage (V)	Breaking capacity (A)	Standard
6A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
10A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
16A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
20A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
25A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
32A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
40A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
50A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898
63A	B.C.D	1 to 63	1,2, 3, 4	240/240, 400/415	10000	IEC60898

STB1-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic. The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product conform with GB10963, IEC60898.
