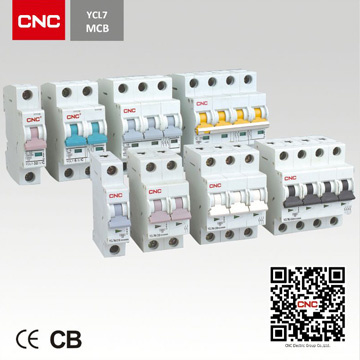

Miniature Circuit Breaker (YCL7-63)

Prod Model:	YCL7-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	230/400
Rated Current (a):	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40
Rated Frequency(Hz):	50/60
Dielectric Test Voltage(Kv):	2.0
Rated Breaking Capacity(a):	4500, 6000, 10000
Rated Impulse Withstand Voltage(V):	6000
Insulation Voltage(V):	500
Protection Degree:	IP20
Curve:	B, C, D
Mechanical Life:	10000
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Certification:	CCC
Poles Number:	1p-4p

Product Description

Miniature Circuit Brekaer (YCL7-63)

About CNC

1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

General

1. Certificate: CE CB Semko
2. Capacity: 6KA; 10KA
3. Rated current: 1 to 63 A
4. Rated voltage: 240V/415V
5. Number of pole: 1, 2, 3, 4Pole
6. Electrical endurance: 10, 000 times

Normal Working Condition
1. Working temperature: -25° C~+60° C, At+20° C, humidity shall not be higher than 95%; At+40° C, humidity shall not be more than 50%.
2. Altitude: ≤ 2000m;
3. Installation Type: II, III
4. Installation Method: Embedded Vertical DIN Rail Installation
5. Pollution Degree: 2

CNC Circuit Breaker:
1. We have new designed circuit breaker by our R&D Dpartment.
2. Perfect testing system ensure each product is qualified.
3. Annual output is about 15, 000, 000 Poles.

WHY US?

1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;

2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;

3. Our Laboratory is China Key Industrial Electrical Laboratory;

4. We have completely sales service system, ensure every detail is going smooth.

5. We have new designed products each year by our R&D Dpartment.

6. Perfect testing system ensure each product is qualified.

7. Want know more of us? Waiting for your inquiry.

Electrical features	Rated current In	A	1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	1, 2, 3,  4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500, 6000,  10000
	Rated impulse withstand voltage (1.2/50) Uimp	V	6000
	Rated sensitivity  IΔn	A	0.03, 0.1, 0.3
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
Mechanical features	Electrical life	t	8000
	Mechanical life	t	10000
	Protection degree		IP20
	Storage temperature	ºC	-25~+70
	Ambient temperature (with daily average≤35ºC)	ºC	-5~+40
Installation	Terminal connection type		Cable / Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18-3
	Tightening torque	N*m	2.5
		In-Ibs.	22
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	Connection		from top and bottom
