| Prod Model: |
DZ47LE-63 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current In: |
6A, 10A, 16A, 20A, 25A, 32A, 40A, Soa, 63A. |
| Rated Residual Operating Current: |
0.03A, 0.05, 0.1A. |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Oil-immersed Type |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
IEC 61009-1, GB 16917.1, GB 16917.22 |
Product Description
Scope of Application
DZ47LE-63 series Residual Current Operating Breakers (hereinafter referred to as breaker) is suitable for distribution systems of N line direct grounding AC SOHz/6OHz, rated voltage 230V/400V, rated current up to63A. And can be used for residual current protection.
The breaker could quickly switch off electrical power when people get an electric shock or leakage current exceeds rated value, protecting personal and electrical equipment safety.
It can protect circuit from overload and short circuit And also can be used in circuit for infrequently switching.
Standard:
IEC 61009-1, GB 16917.1, GB 16917.22
Main Specification And Technical Parameters
1.Classification
1.1 According to rated current In:
6A, 10A, 16A, 20A, 25A, 32A, 40A, SOA, 63A.
1.2 Rated residual operating current: 0.03A, 0.05, 0.1A.

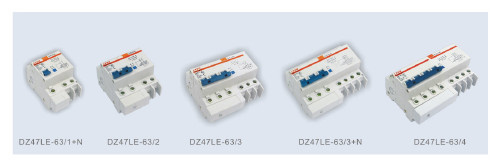

1.3 According to poles and current loop:
a. 1P of two lines residual current circuit breaker;
b. 2P residual current circuit breaker;
c. 3P residual current circuit breaker;
d. 3P of four lines residual current circuit breaker;
e. 4P residual current circuit breaker;
1.4 According to the features of instantaneous release:
Type C (for power distribution) Type D (for motor protection)
2 Main technical parameters
2.1 Rated voltage Un:
1P of two line and 2P 230V,
3P. 3P of four line and 4P 400V;
2.2 Rated short circuit breaking capacity lcn: 4,000A.
2.3 Rated residual making and breaking capacity lm: 2,000A.
2.4 Rated residual not operating current lno: 0.SlAn
2.5 Residual current operating breaking time
2.6
2.7 Mechanical and electrical life
a. Electrical life: 2,000 times, COSf' =0.8S.
b. Mechanical life: 2,000 times.
c. Operation frequency: ln2SA, 240 times/h, ln>25A, l20times/h
2.8 Insulation impulsive voltage performance
a. Between the connected each pole and N pole can endure peak impulse voltage 6,000V.
b. Between connected each pole, N pole and metal frame can endure peak impulse voltage 8000V.
2.9 Residual current operating breaker with enduring capability and not cause malfunction under peak impulse current 200A and surge overvoltage
Order Information
To order DZ47LE-63 RCBO needs to indicate product model, name, poles, rated current and quantity.
For example: DZ47LE-63 RCBO rated working current 40A, 1P+N, 300 sets.
