| Prod Model: |
BIC1225R1.2 |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
White |
| Outer Copper Thick: |
1 Oz |
| Board Thick: |
1.6mm |
| Solder Mask Color: |
Green |
| Minimum Trace and Space: |
4.5 Mil/5.5 Mil |
| Minimum / Maximum Holes: |
0.3mm/1.3mm |
| Inner Copper Thick: |
0.5 Oz |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
MultiLayer PCB Supplier Bicheng 4 Layer PCB board FR-4 1.6mm Thick PCB Applied In
Digital Transmitter
Commodity Introduction

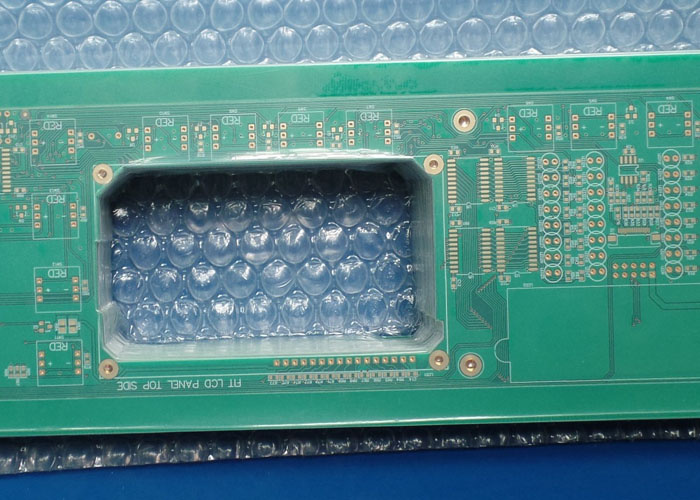

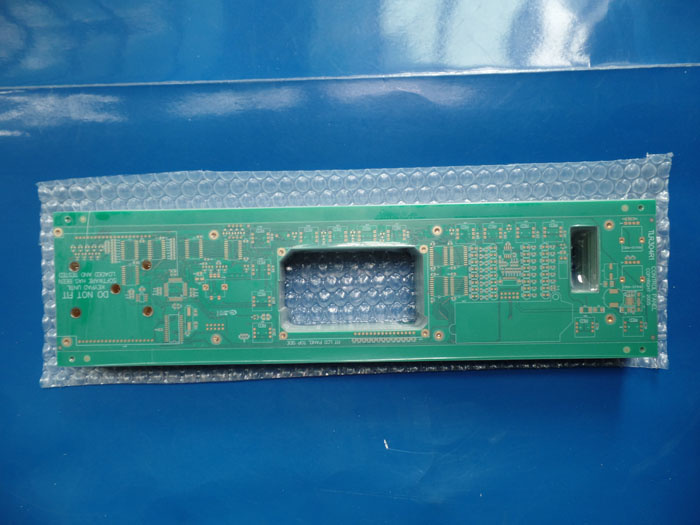

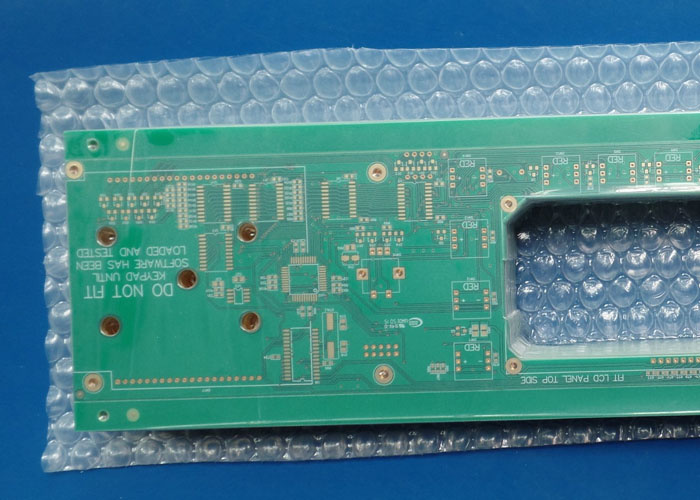

This is a type of FR-4 PCB for the application of Digital Transmitter. It's a 4 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Nanya and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately
. Parameters & Data Sheet| PCB SIZE | 395 x 110mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.8um(0.5oz)+plate TOP layer |
| Pregpreg 508um |
| copper ------- 17.8um(0.5oz) |
| Core FR-4 508um |
| copper ------- 17.8um(0.5oz) |
| Pregpreg 508um |
| copper ------- 17.8um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.5mil/5.5mil |
| Minimum / Maximum Holes: | 0.3mm/3.1mm |
| Number of Different Holes: | 45 |
| Number of Drill Holes: | 3406 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (12.7%) 4µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Digital transmitter, Switches
Powered Speakers
Mobile Voip
Microprocessor
Wifi Modem |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
12 layer PCB, 2.4mm stack up
Among multi-layer PCB's, 12- layer is the largest number of layers that can be produced easily
in 1.6mm thick. The 12- layer PCBs rang 1.6 to 2.4mm thick in the application of industrial
communication equipment, wireless module, industrial computers and backplanes etc.
The standard 2.4mm stack up
-----17.5um copper + plate
-----PP 1080
-----PP 2116
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 1080
-----PP 1080
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 1080
-----PP 1080
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 1080
-----PP 1080
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 1080
-----PP 1080
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 1080
-----PP 1080
-----FR-4 core 0.2mm, 2 x 35um copper
-----PP 2116
-----PP 1080
-----17.5um copper + plate
Finished thickness: 2.4mm+/-10%
0.5oz(18um), 1oz(35um) and 2oz(70um) are available for outer layers' copper
