Mirco Wind Pressure Sensor

Name: Mirco Wind Pressure Sensor
Brand: all-electronics-online.com
SKU: 773141535
Availability: InStock
Rating: 4.7 (138 reviews)

Price:	US $ 110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-D30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	Min.: 0~0.6mbar, Max.: 0~2bar
Measure Medium:	Humid, Nepheloid Gas
Display:	LED Optional
Power Supply:	12~36VDC
Electrical Connection:	Hirschman Connector or Waterproof Joint
Product Name:	Micro Differential Pressure Transmitter

Product Description

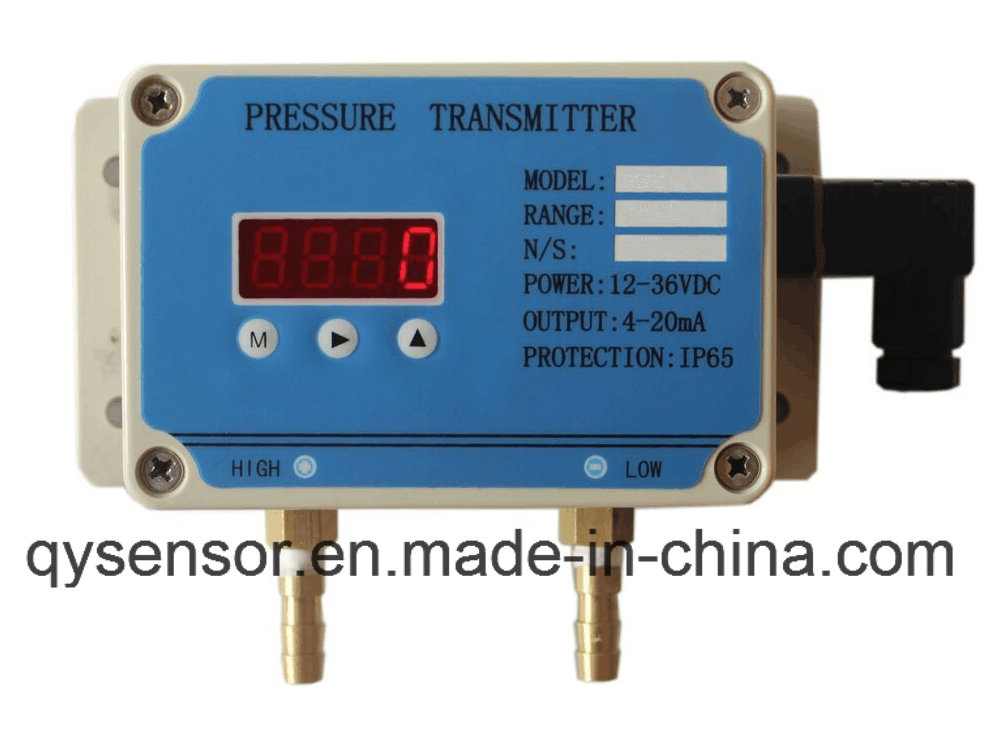

Micro Differential Pressure Transmitter/ Wind Pressure Sensor

Features:

Can measure humid, nepheloid gas
One sensor can be used for differential pressure, pressure, negative pressure measurement
   good long-term stability

overload capacity is up to ten times

  LED digital field indicator optional

  Eliminate the effect from sensor installation location

open-air installation, protection grade of IP65

Technical Specifications:

   Measuring Medium: Gas

Range: measuring method and range depend on sensor applicable, ranged rift should not exceed the upper or lower limit of the sensor measurement
Pressure: min .: 0~0.6mbar, Max.: 0~2bar

Output: 4~20mA
Linear: 0.2% , 0.5 %, 1%
Long-term Stability: 0.8%F.S/year
Temperature Factor: 0.3%F.S/1 0ºC(between -40 and 85ºC, Zero and Span)
Power Supply: 12~36VDC
Induct Pressure Connection: M 8x1 female or Ø 8 dowel connection
Material: : Silicon, glass, PTV
: Carbon steel galvanized
: ABS
Protection: IP65
Electrical Connection: Hirschman connector or waterproof joint

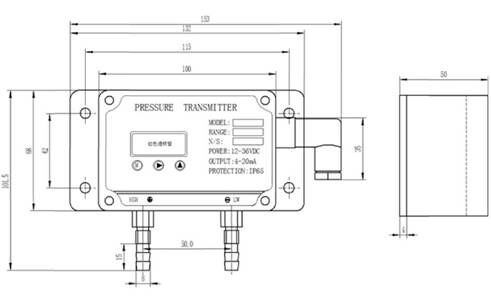

Size and shape:
