Mirror Aluminum PCB with 1W / Mk 1.0mm Core Immersion Gold
| Price: |
US $ 1.02/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1278R1.3 |
| Solder Mask Color: |
White |
| Minimum Trace And Space: |
12 Mil/12 Mil |
| Minimum / Maximum Holes: |
1.5mm |
| Legend Color: |
No Required |
| Surface Finish: |
Immersion Gold |
| Board Thick: |
1.6mm |
| Copper Thick: |
1 Oz |
| Thermal Conductivity: |
1W/Mk Dielectric Material |
| Via: |
No Via |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description

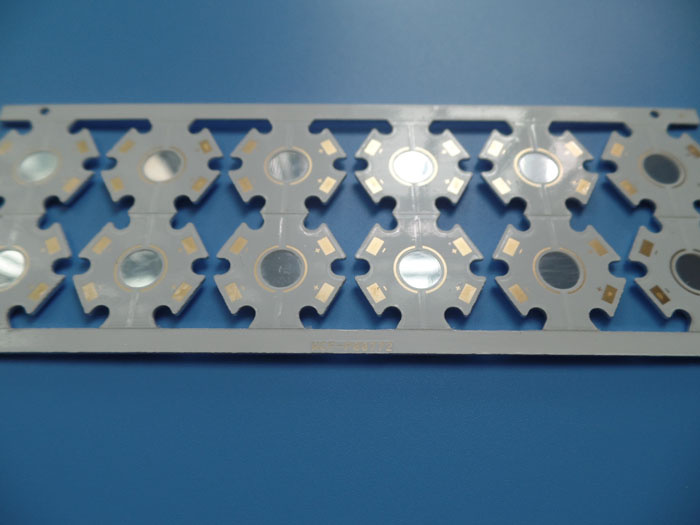

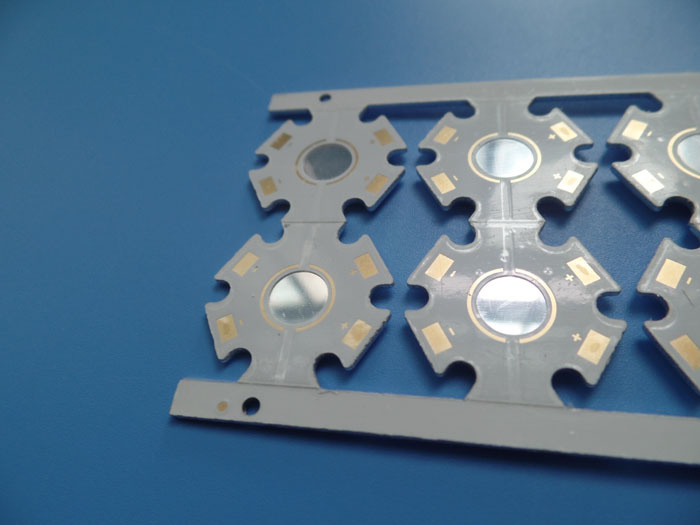

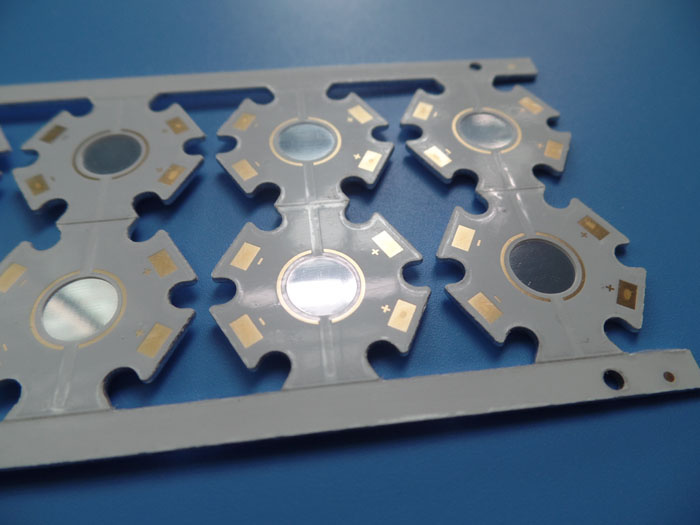

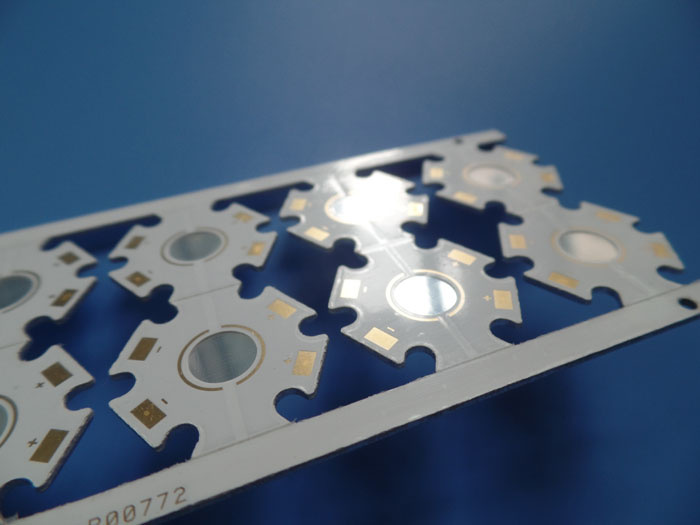

Mirror MCPCB Aluminum PCB Single Sided With 1W / MK Aluminum 1.0mm core Applied In
Led Lights
Commodity Introduction
This is a type of Aluminum PCB for the application of Led Lights It's a single sided layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabrica
-ted per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 130 x 48mm=12PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB, Metal core PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material, 75um |
| Aluminum 5052, 1.0mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/12mil |
| Minimum / Maximum Holes: | 1.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold, Mirror reflection |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | no silkscreen |
| Colour of Component Legend | no silkscreen |
| Manufacturer Name or Logo: | as per requirement |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED lights, Wireless Antenna
AC Power Adapter
Router Adsl
DCAC
Modem Wi Fi |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Mass production capability
The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. And the brand new automatic equipment was introduced from Israel, Germany,
Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
