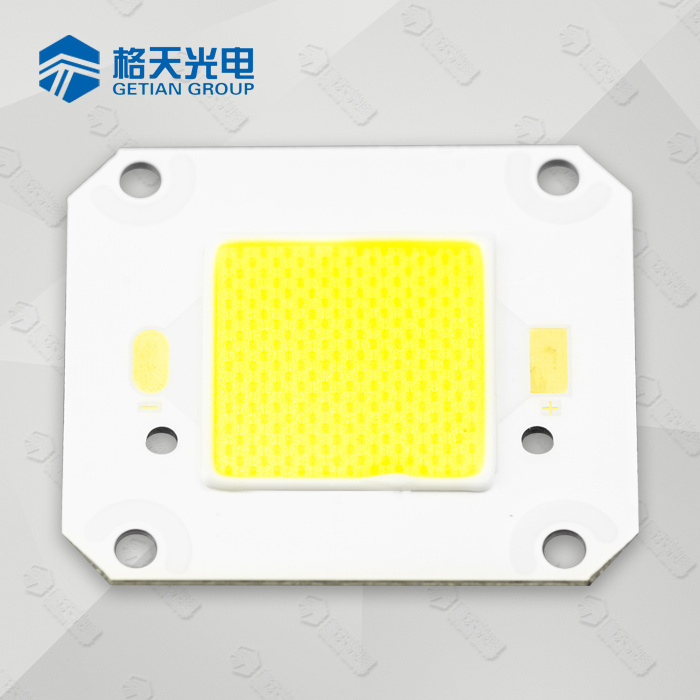

Shenzhen Getian Opto-Electronics Co., Ltd. >> Mirror Surface Aluminum Base Bridgelux Chip Brand 80W LED Diode

Mirror Surface Aluminum Base Bridgelux Chip Brand 80W LED Diode

Mirror Surface Aluminum Base Bridgelux Chip Brand 80W LED Diode
Price: US $ 12.25-12.83/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: GT-COB4046
Current: 2400mA
Voltage: 31-36V
Luminous Efficacy: 140-150lm/W
CCT: 5500-6000K, 6000-6500K
CRI: 70
Warranty: 3 Years
Max Current: 4800mA
Sdcm: 3-5
Lumen: 11000-12000lm
Usage: LED Track Light
LED Chips: Tekcore
Beam Angle: 120??
Base Material: Aluminum
Life: 30000h
Certification: Lm-80, En62471
Power: 80W
Emitting Color: Cool White
Welding Process: Solderless Holder
IP Rating: IP20
LED Packaging Type: Surface Mount

Product Description

Mirror Surface Aluminum Base Bridgelux Chip Brand 80W LED Diode

Specification.
ItemPowerCCTCRIVoltStandard CurrentMax.CurrentLuminous EfficacyLumen Output
4046 COB LED20W5500-6000K7031-36V600mA1200mA150-160lm/w3000-3200LM
30W5500-6000K7031-36V900mA1800mA150-160lm/w4500-4800LM
50W5500-6000K7031-36V1500mA3000mA150-160lm/w7000-9000LM
70W5500-6000K7031-36V2100mA4200mA140-150lm/w9800-10500LM
80W5500-6000K7031-36V2400mA4800mA140-150lm/w11200-12000LM


Keyfeatures.

.High Luminous Efficacy 160LM/W
·Mirror-surface Aluminum Base
·Wide Lighting Area & High Intensity Chip Array
·RoHS Compliant
·>30000 hrs
·Suitable for high current application.
. A good choice to replace P100W COB LED with high efficiency

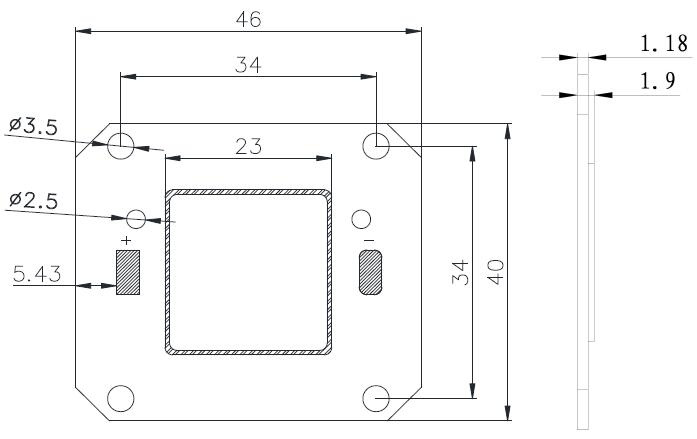

Dimension(mm)






Getian Other availabe LEDs



Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
