| Prod Model: |
STC-102 |
| Mount: |
Standard Rail or Bolts |
| Input Power Supply: |
DC 9-36V or AC 85-265V |
| Key Words: |
Remote Control Switch |
| Warranty: |
3 Years |
| Working Temperature: |
-20~70 (Centigrade Degree) |
| Size: |
125*110*40mm |
| Io: |
16do |
| Application: |
Special Equipment |
| Certification: |
CE |
| Type: |
RTU |
| Universal: |
Can Customized |
Product Description

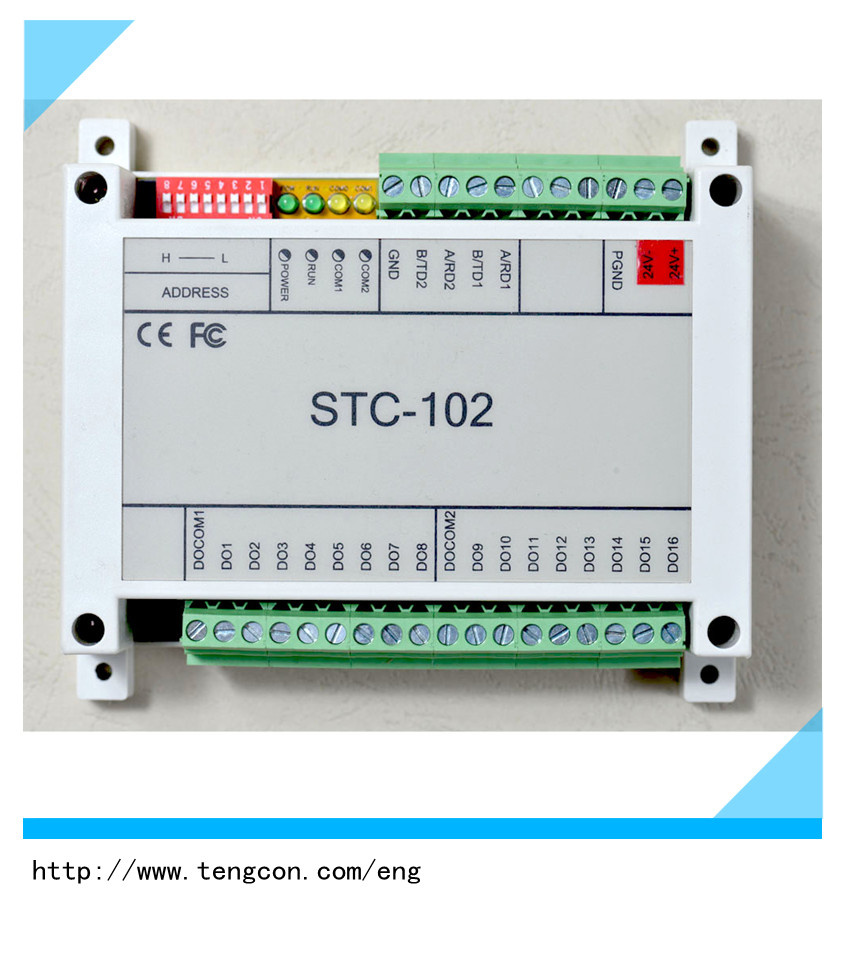

Modbus Slave RTU Controller TENGCON STC-102 with 16DOTechnical Specification:
dimension |
125x110x40 (mm) (W x H x D) |
weight |
450g |
mount |
Standard rail or bolts |
Working temperature |
From -20°C to 70 |
Storage temperature: |
-40~85°C |
Operating humidity: |
<85% RH(20±5°C) |
Relay Output
Relay Output |
16 Channel Relay Output |
8 Channel use one common connector |
One Form A (SPST) |
250V/5A AC Contact Capacity |
Relay Contacts Directly connect to IO terminals |
Communication:
1 RS485 or RS232( 3 wire) ,1 RS485 |
Modbus RTU |
Max baud rate 38400bps |
Address Setting: DIP SW 1~31 |
I/O feature:
Beijing Tengcontrol Technology Limited Company
Rely on the hardware, software and network technique, Tengcon Technology devoted to manufacture industrial automation core products and systems with more than 30%of employee are focus in Research & Development. Tengcon has deep and wide experience in various signal acquisition, especially on electric signal acquisition, and also, familiars with all main protocol like MODBUS, IEC8705, PROFIBUS DP, CAN, PROFINET etc., and knows the ropes of IEC61131 and technology of Programmable Logic Controller development as well as IEEE1588 and Clock Synchronization Technology in Ethernet, we are also robust on antiinterference and lightning protection technology to ensure the reliability of every product delivered to customer.
Tengcon Technology proposed a new advanced concept of Complete Distributed Network Control System, in that the control system is constructed via absolutely new theory. It can be applied to construct the SCADA (Supervisory Control and Data Acquisition), PLC (Programmable Logic Controller) and DCS (Distributed Control System). Typical product were developed based on these is T9 series which were launched in market already. More than 100 thousands of product have been delivered to customers and got widely and good customer acceptance in past years.
All these products are being used in various industries in 18 counties. They showed strong reliability in different systems and wide environment include High Speed Rail, oil and gas field, power monitor and control system, kind of automatic production line, Building Management System,city lighting control system, vehicle monitoring, agricultural farms etc. we are keeping to develop and provide first class of product to all the customer in worldwide.
Beijing Tengcon Technology, first known as Beijing Econtrolnet Technology, was found in 2002. Now, it consists of Beijing Econtrolnet, Tengcon Automation and Tengcon Intellitrument. By now, we have made more than 100, 000 PLC and I/O modules. Our products are working in many large projects, for instance, they are west-east gas pipeline, Beijing 2008 Olympic Games, Tangjiashan dammed lake, oilfield well, Baosteel, Yangzi Petrochemical.
Beijing Tengcon Technology has 40 employees and more than 30 percent are employed in R&D work. We focus on the hardware, software and network research, target to produce the leading automation device and equipment.
We have engaged in electronic research and development for many years, we also have rich experience on the signal acquisition & processing, our products are very robust on electromagnetic interference and lightning protection.
Rely on the computing hardware, software and network technique, Tengcon Technology devoted to manufacture industrial automation core products and systems. More than 30 per cent staffs are in Research & Development, so we gets strong ability on product R&D. Tengcon Technology has deep and wide experience on various signal acquisition, especially on electric signal acquisition, so that, our products are very robust on anti-interference and lightning protection.
Tengcon Technology advanced a Complete Distributed Network control system, in that the control system is constructed via absolutely new theory. It can be applied to construct the SCADA (Supervisory Control and Data Acquisition), PLC (Programmable Controller) and DCS (Distributed Control System).
We have manufactured more than 100 thousands products in 10 years, and all are used in various industrial plants and agricultural farms. With customer's continuous testing and our technology improving, Tengcon Technology product are widely accepted by various users for its excellent network communication, architecture, anti-interference ability and wide temperature adaptation.
