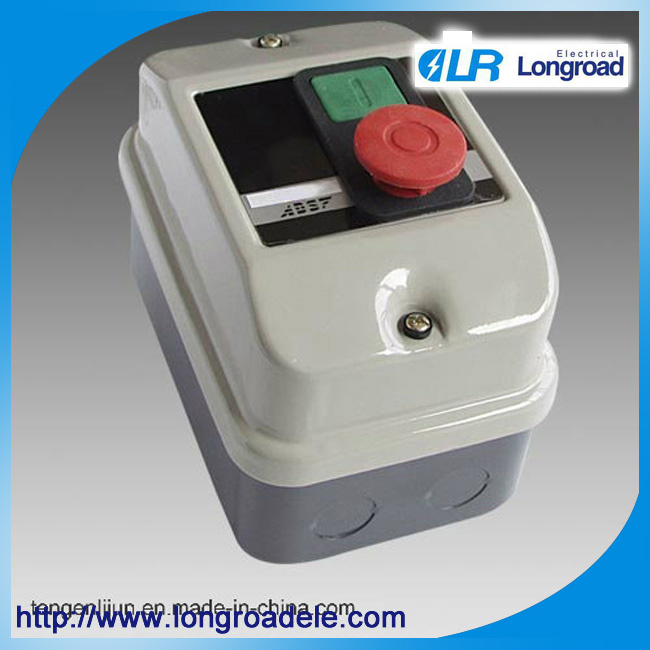

Model Ad Series Magnetic Starter and Star-Delta Starter

Prod Model:	AD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ad
Circuit:	AC 50 or 60Hz
Rated Voltage:	550V
Name:	Magnetic Starter and Star-Delta Starter

Product Description

Application
AD Series Magnetic Starter and Star-delta Starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.

Type	Rated current  AC3 415V(A)	3-phase motor capacity AC3 load 415V
		KW	HP
Direct-on-line, surface mounting Direct-on-line, flush mounting Direct-on-line, surface mounting, reversing Direct-on-line, surface mounting, with isolator ADE7 ADS7	0.74-1.11	0.37	0.50
	1.11-1.66	0.55	0.75
	1.66-2.50	1.10	1.50
	2.50-3.70	1.50	2.00
	3.70-5.60	2.50	3.40
	5.60-8.40	4.00	5.50
	8.40-11.9	5.50	7.50
	11.4-16.0	7.50	10.0
	16.0-23.0	11.0	15.0
	22.0-33.0	15.0	20.0
Star-delta, surface mounting ADE	4.30-6.40	3.00	4.00
	6.40-9.70	5.00	6.80
	9.70-14.5	7.50	10.0
	14.5-20.6	10.0	13.5
	19.7-27.7	15.5	20.0
	26.0-38.0	22.0	30.0
