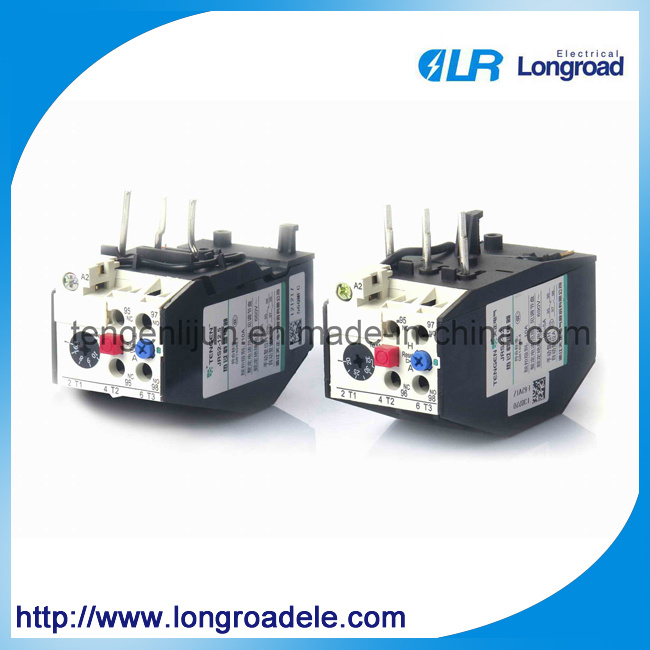

Model Jrs2 Series Thermal Overload Relay

Name: Model Jrs2 Series Thermal Overload Relay
Brand: all-electronics-online.com
SKU: 639230775
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRS2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Jrs2

Product Description

Specification
. 3-Phase(R-S-T)Protection
. Temperature Compensation&Phase failure protection
. Standard: IEC60947-4-1
. Current setting continuously readjustable

Type	Number	Setting range(A)	For contactor	Type	Number	Setting range(A)	For contactor
JRS2-12.5/Z	0A	0.1~0.16	CJX1-09 CJX1-12	JRS2-25/Z	0A	0.1~0.16	CJX1-16 CJX1-22
	0C	0.16~0.25			0C	0.16~0.25
	0E	0.25~0.4			0E	0.25~0.4
	0G	0.4~0.63			0G	0.4~0.63
	0J	0.63~1			0J	0.63~1
	0K	0.8~1.25			0K	0.8~1.25
	1A	1~1.6			1A	1~1.6
	1B	1.25~2			1B	1.25~2
	1C	1.6~2.5			1C	1.6~2.5
	1D	2~3.2			1D	2~3.2
	1E	2.5~4			1E	2.5~4
	1F	3.2~5			1F	3.2~5
	1G	4~6.3			1G	4~6.3
	1H	5~8			1H	5~8
	1J	6.3~10			1J	6.3~10
	1K	8~12.5			1K	8~12.5
	2S	10~14.5			2A	10~16
					2B	12.5~20
					2C	16~25
Type	Number	Setting range(A)	For contactor	Type	Number	Setting range(A)	For contactor
JRS2-32/Z	1G	4~6.3	CJX1-32	JRS2-63/F	0K	0.8~1.25	CJX1-09~63
	1J	6.3~10			1A	1~1.6
	2A	10~16			1B	1.25~2
	2B	12.5~20			1C	1.6~2.5
	2C	16~25			1D	2~3.2
	2D	20~32			1E	2.5~4
	2Q	25~36			1F	3.2~5
JRS2-45/Z	0A	0.1~0.16	CJX1-32 CJX1-38		1G	4~6.3
	0C	0.16~0.25			1H	5~8
	0E	0.25~0.4			1J	6.3~10
	0G	0.4~0.63			1K	8~12.5
	0J	0.63~1			2A	10~16
	0K	0.8~1.25			2B	12.5~20
	1A	1~1.6			2C	16~25
	1B	1.25~2			2D	20~32
	1C	1.6~2.5			2E	25~40
	1D	2~3.2			2M	32~45
	1E	2.5~4			2T	40~57
	1F	3.2~5			2P	50~63
	1G	4~6.3		JRS2-135	2H	55~80	CJX1-85 CJX1-110
	1H	5~8			2W	63~90
	1J	6.3~10			2X	80~110
	1K	8~12.5			3H	90~120
	2A	10~16			3J	110~135
	2B	12.5~20		JRS2-150	2H	55~80	CJX1-140
	2C	16~25			2W	63~90
	2D	20~32			2X	80~110
	2Q	25~36			3H	90~120
	2R	32~40			3J	110~135
	8M	36~45			3K	120~150
JRS2-80/Z	1G	4~6.3	CJX1-45 CJX1-63 CJX1-75 CJX1-85	JRS2-180/F	2H	55~80	CJX1-170CJX1-205
	8A	11~17			2W	63~90
	2B	12.5~20			2X	80~110
	2C	16~25			3H	90~120
	2D	20~32			3J	110~135
	2E	25~40			3K	120~150
	2F	32~50			3L	135~160
	2T	40~57			3M	150~180
	2P	50~63		JRS2-400	2K	80~125	CJX1-110~400
	2V	57~70			3B	125~200
	2U	63~80			3C	160~250
	8W	70~88			3D	200~320
JRS2-63/F	0A	0.1~0.16	CJX1-09~63		3E	250~400
	0C	0.16~0.25		JRS2-630	3F		CJX1-400
	0E	0.25~0.4			3G
	0G	0.4~0.63
	0J	0.63~1
