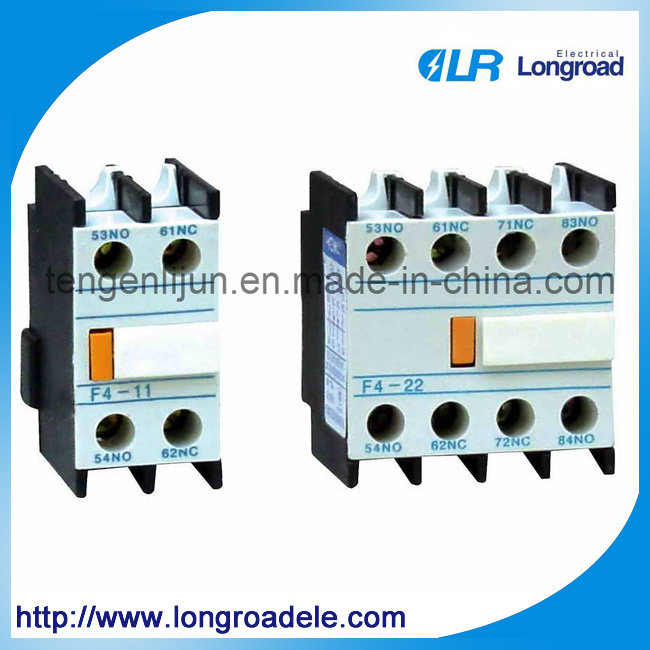

Model La1-D La2-D Auxiliary Contact Block

Prod Model:	LA1-D LA2-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	La1-D La2-D
Name:	Auxiliary Contact Block

Product Description

Application
LA series auxiliary contact blocks are installed on the top of CA2-D control relay LC1-K or LC1-D AC contactor respectively for expanding the couples of auxiliary contacts points. Owing to adopting the contacting functions of sliding frictions, the item can be self-cleaning & ensure the electric circuit to be reliable.

Type	Type of Contact
LA1-DN01	1NC
LA1-DN02	2NC
LA1-DN10	1NO
LA1-DN11	NO+NC
LA1-DN20	2NO
LA1-DN22	2NO+2NC
LA1-DN40	4NO
LA1-DN04	4NC
LA1-DN13	1NO+3NC
LA1-DN31	3NO+1NC
LA8-DN11	1NO+1NC
LA8-DN20	2NO
LA1-KN11	NO+NC
LA1-KN20	2NO
LA1-KN02	2NC
LA1-KN22	2NO+2NC
LA1-KN31	3NO+1NC
LA1-KN13	1NO+3NC
LA1-KN40	4NO
LA1-KN04	4NC
