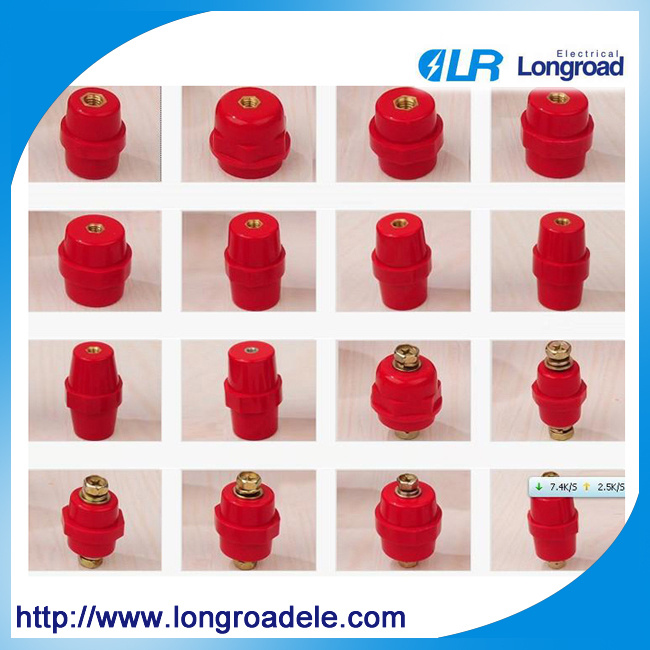

Model Sm Series Insulator

Prod Model:	SM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Sm
Voltage-Withstand(Kv):	6~25
Torque(FT Lbs):	5~40
Screw Thread(mm):	6~10
Application:	Insulators
Material:	BMC SMC
Maximum Voltage:	6kv~25kv
Color:	Red

Product Description

Specification:
Expansion and Contraction strength(LBS): 400~2000
Voltage-withstand(kV): 6~25
Torque(FT LBS): 5~40
Screw Thread(mm): 6~10
Screw Thread Depth(mm): 8~18.
Specifications:

Model	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Tensile strength (1bs)	500	550	600	650	1000	1500
Tongue strength (ft 1bs)	6	8	10	10	20	40
Voltage withstand (kv)	6	8	10	12	15	25
Screw (mm)	6	8	8	8	8	10
Weight (g)	28	44	50	86	83	233

About us:
Longroad Electric Co.ltd  founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China". Longroad Electric specialized in the industrial electrical appliance, high-low voltage electrical equipment integrated with R&D, Manufacturing, International trade and service.
    Longroad Electric Co,ltd regards quality of products as life,Longroad Electric Co.,ltd  has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV, CE, CQC, SGS, ROHS,SASO. the products sells well to UK,Spain,Portugal,Singapore,Turkey,Russia, Korea,South Africa... more than 70 countries and regions.
Longroad Electric Co.ltd is always striving hard to provide the best services and competitve pricing to all customers.
