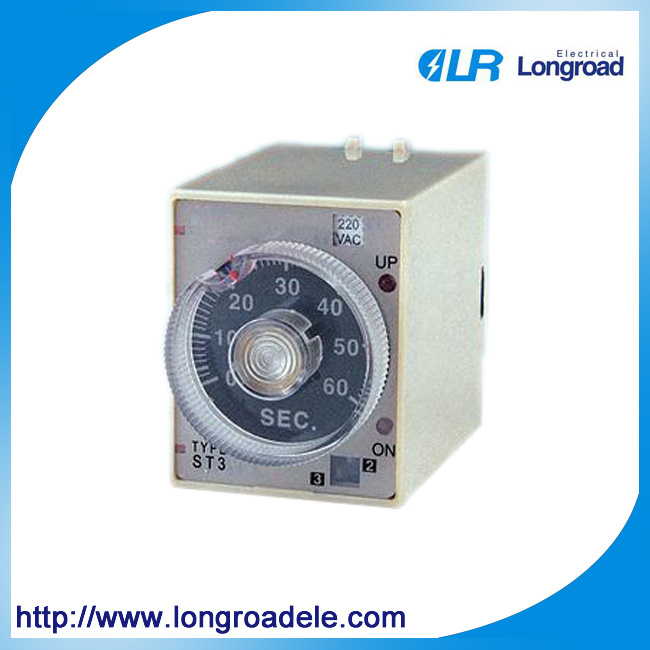

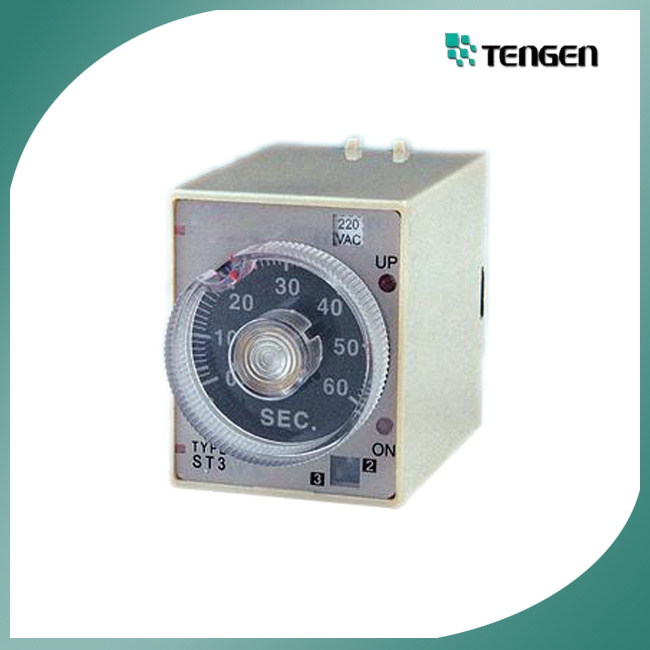

Model St3p Electric Power Timer Relay

Name: Model St3p Electric Power Timer Relay
Brand: all-electronics-online.com
SKU: 694063715
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	St3p
DC:	12, 24
Voltage(V):	12, 24, 110, 220, 240, 380 50/60Hz
Material:	Fire Resistant Materials

Product Description

Specification
Voltage(V): AC: 12, 24, 110, 220, 240, 380 50/60Hz
DC: 12, 24

Classification		Timer			Multi Range Timer			Multi Range Timer		Timer
Model Specification		AH3-X			AH3-XX			AH3-NX		ST2P
Dimension		50H x 40W x 57.5D			50H x 40W x 57.5D			50H x 40W x 57.5D		50H x 40W x 57.5D
Mounting & Socket	Surface(-N)	PF083A(E)			PF083A(E)			PF083A(E)		PF083A(E)
	Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08		US-08 P3G-08
Full Timing Range		SEC: 1,3,6,10,12,30,60 MIN: 3,6,10,12,30,60 HR: 3,6,10,12,30			A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H			A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H		SEC: 1,3,6,10,12,30,60 MIN: 3,6,10,12,30,60 HR: 3,6,10,12,30
Rated Voltage (V)		AC: 12,24,110,220,240, 380 50/60Hz DC: 12,24			AC: 12,24,110,220,240, 380 50/60Hz DC: 12,24			AC: 12,24,110,220,240, 380 50/60Hz DC: 12,24		AC: 12,24,110,220 (50/60Hz) DC: 12~24
Indicator Operating		ON-UP Operating			ON-UP Operating			Time Operating Flicker		ON-UP Operating
O/P Contact	Model	AH3-1	AH3-2	AH3-3	AH3-1X	AH3-2X	AH3-3X	Mode A/B		ST2P-E
	Time Limit 1C	5A		5A	5A		5A		5A	5A
	Time Limit 2C		5A			5A		5A		5A
	Instantaneous 1C			5A			5A		5A	5A
Life	Mechanical	5 x 10 6 > Times			5 x 10 6 > Times			5 x 10 6 > Times		5 x 10 7 > Times
	Electrical	10 5 Times			10 5 Times			10 5 Times		10 5 Times
Accuracy	Repeat Error	±1% max			±1% max			±1% max		±2% max
	Setting Error	±10% max			±10% max			±10% max		±5% max
	Voltage Error	±1% max			±1% max			±1% max		±5% max
	Temp Error	±2% max			±2% max			±2% max		±2% max
Reset Time		0.1 sec max			0.1 sec max			0.1 sec max		0.5 sec max
Consumed Power		3VA			3VA			3VA		3VA
Ambient temperature		-10°C~+55°C			-10°C~+55°C			-10°C~+55°C		-10°C~+55°C
Ambient Huminity		48~85% RH			48~85% RH			48~85% RH		35~85% RH
Weight		160g			160g			160g		100g

Long Road Electric Co. Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric specialized in the SMC, DMC and PLASTIC materials energy meter boxes Manufacturing, International trade and service.

Long Road Electric Co, Ltd regards quality of products as life, Longroad Electric Co., Ltd has been granted ISO9001 management system certifications. The comprehensive product line has more than 100 models which have been approved by TUV, CE, CB, SGS, RoHS, SASO. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 70 countries and regions.

Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
