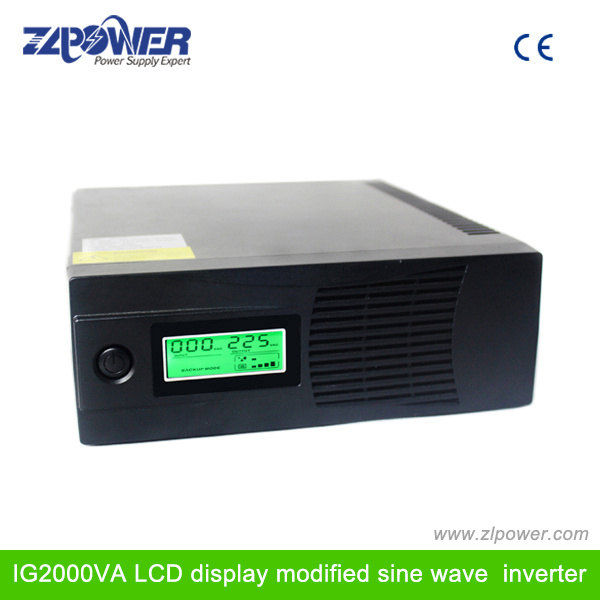

Modified Sine Wave 500~2000va Power Inverter

Name: Modified Sine Wave 500~2000va Power Inverter
Brand: all-electronics-online.com
SKU: 824010555
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	IG Series
Power Rating:	300W~1200W
Output Voltage Waveform:	Modified Sine Wave
Charging Algorithma:	3-Step Charging
Transfer Time:	15ms Typical,20ms Max
Efficiency(Battery Mode):	>87%.
Efficiency(Line Mode):	>98%
Display:	LED Display
Protections:	Low Battery, Over Charging, Over Load, Over Temp
Warranty:	2 Years
Appliances:	Tvs, Stereos, Desktop or Laptop Computers

Product Description

Features:
IG Series AC charging Inverter.
Adopt advanced MCU microprocesor control technology.
Modified sine wave output.
User selectable for wide or narrow input voltage range.
Full automatic and silent operation.
Intelligent speed fan to release heat.
Compact size for convenient use and strage.
Built-in 10Amp super charger for up to 200Ah battery, off charging mode, even inverter not start, it can still charge.
Small scale and cost effective inverter for home appliances and office equipment.
Multi-functional LED indicator light and alarm device.

Parameter

Model	IG500-12	IG1000-12	IG2000-24
Power Rating	500VA/300w	1000VA/600W	2000VA/1200W
AC Input Input Voltage Waveform Sinusoidal(utility or generator) Nominal input Voltage 230VAC Selectable Voltage Range 170-280Vac±5%(Narrow Range),90-280Vac±5% Max AC input Voltage Max:280VAC Frequency 50Hz,60Hz
AC Output Output Voltage Waveform Modified sine wave Voltage Regulation(bATT.Mode) 230VAC(+10%/-18%) Nominal Output Frequency(Hz) 50Hz or 60Hz(Auto detection) Transfer Time 15Typical, 20ms Max.
AC Charger Charging Algorithma 3-step charging Nominal Charger Current 10Amp Floating Charging Voltage 13.7VDC 27.4VDC Over charge Protection 16VDC 32VDC
Efficiency Efficiency(Battery Mode) >87% . Efficiency(Line Mode) >98%
Battery Nominal DC input Voltage 12VDC 24VDC Voltage Low Battery Alarm 10.5VDC±0.3VDC 21VDC±0.6VDC Low DC input shut-down 10VDC±0.3VDC 20VDC±0.6VDC High DC input Alarm&Fault 16VDC±0.3VDC 32VDC±0.6VDC
System Protections Low battery,over charging,over load, over temp Parameter Indicators LED Display Over-Load Protection 1min Load>110%,20s Load>120%,0s Load
General Operating Temperature Range Specifications Storage Temperature cooling Dimension(LWH) 22425580mm Net Weight(kg) 1.7kg 2.3kg 2.5kg
