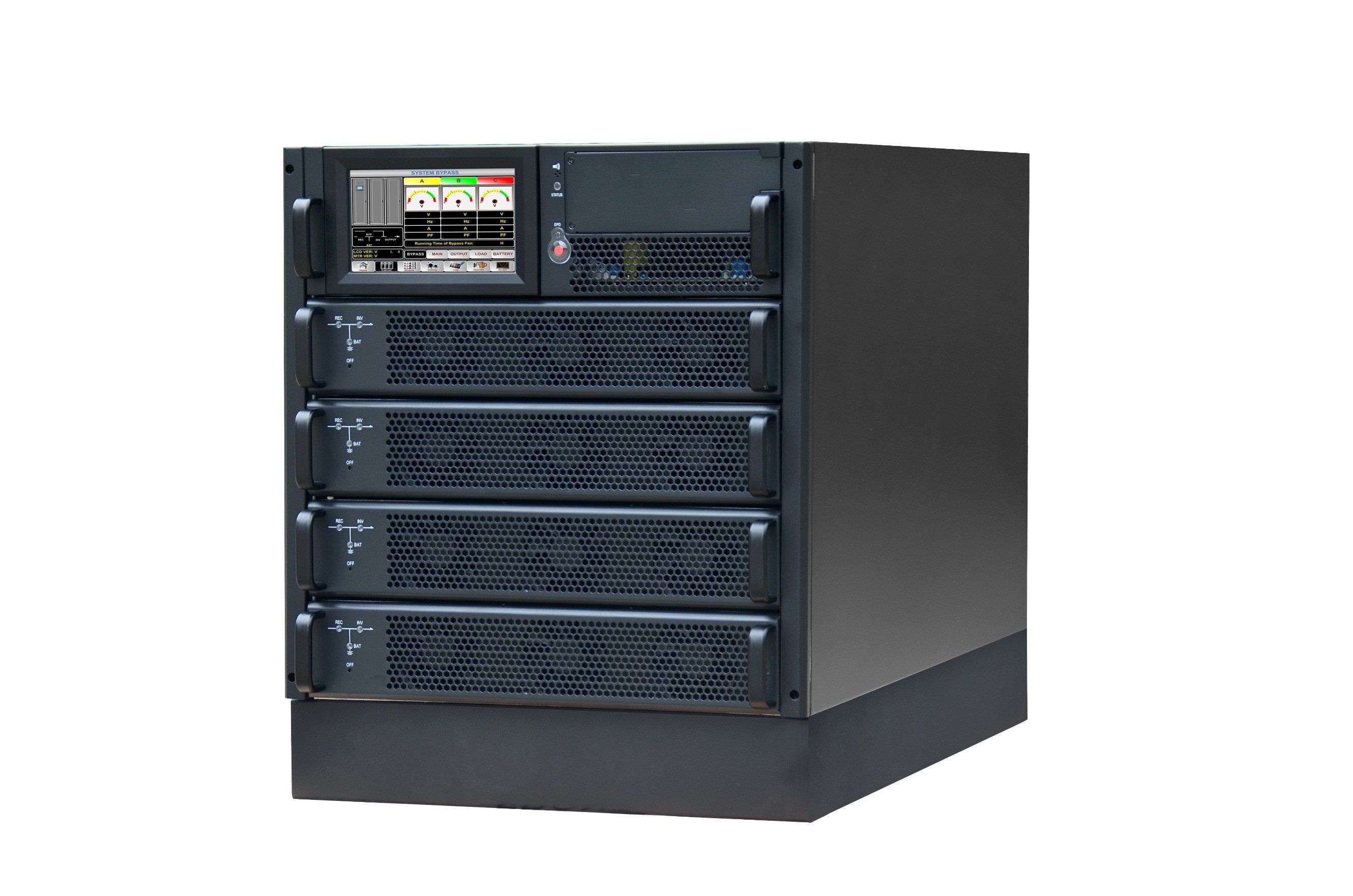

Modular High Frequency Power Backup UPS

Modular High Frequency Power Backup UPS
Price: US $ 2999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SUN400L-M10
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Supstech

Product Description


MODEL
SUN600L-M10
SUN400L-M10
SUN300L-M10SUN200L-M10
SUN900L-M15
SUN450L-M15
SUN300L-M15
Capacity60kVA/60kW40kVA/40kW30kVA/30kW20kVA/20kW90kVA/90kW45kVA/45kW30kVA/30kW
Power moduleSUN-M10(10kVA/10kW)SUN-M15(15kVA/15kW)
INPUT
Phase3P+ N + G (380/400/415V)

Voltage range

304-478Vac (line-line),100% load; 228-304Vac, load derated linearly
Frequency range40Hz-70Hz
Power factor>0.99
THDiTHDi<4% @ 100% linear load
OUTPUT

Voltage

3 phase:380/400/415V
1 phase:220/230/240V
Voltage regulation1.5%
Power factor1.0
THDuTHD<1%(linear load ),THD<5.5%(non-linear load)
Crest factor3:1
Overload capability110% for 1 hour; 125% for 10 min ;150% for 1 min; >150% for 200 ms
BATTERY
Voltage±240VDC
Charge Power20%*System Power
Charge voltage precision±1%
SYSTEM
System efficiencyNormal mode:95% ;ECO mode:98% ;Battery mode:94.5%
Display7.0" Color touch screen LCD + LED + Keyboard
IP ClassIP20

Interface

Standard :RS232,RS485,Dry contacts; Optional: SNMP

Operation/Storage temperature

0-40ºC/-25-70ºC
Relative humidity0-95%(non-condensing)
Noise56dB @ 50% load (1 meter away)
PHYSICAL

Weight
Cabinet85kg51kg55kg42kg85kg55kg42kg
Power Module15.3kg15.5kg


Dimension (W*D*H)
(mm)


Cabinet

485*751*1033 (21U)

485*697*575 (11U)

485*751*575 (11U)

485*697*398 (7U)

485*751*1033 (21U)

485*751*575 (11U)

485*697*398 (7U)
Power Module436*590*85 (2U)
SHIDA (SUPSTECH), founded in 1997 as a subsidiary corporation of START COMPUTER GROUP, is based in Shanghai. We are one of the leading 1st generation of uninterruptible power supply (UPS) solution providers in China. For 20 years, we have been specialized in the research, manufacture, sales and services of UPS with our production base in Shenzhen. We accumulated rich experiences and typical cases in the range of applications to banks, insurance, securities, financial industry, international airport, utility electric supply, radio and television network, metro system, maritime bureau, medical system, public services, education, and cloud data center. Also we are working with GE, Delta, Emerson, Pakistan National Banks, Vodafone, Cornell University, InfoSec, and Olympic Organizing Committee internationally. Till now we have more than 20 offices & service centers at home and abroad, is the honorable brand name both in China and overseas.

With production capacity of 150, 000 units and 20 years of experiences in UPS industry, SUPSTECH ensures you with proven technique, high reliable quality, cost-effective and outstanding service.
